HI LPB SERIES LOAD POINT ASSEMBLY
Page 12
For scales that must meet NIST Class 3 (OIML Class
3) specifications:
1.
Maximum base plate angle variation: 0.2
degrees.
2.
Maximum top plate angle variation 0.5
degrees.
For scales that must meet accuracy specifications =>
0.1%
1.
Maximum base plate angle variation 0.2
degrees
2.
Maximum top plate angle variation 1 degree.
Installation Procedures
Pre-Installation
Procedures
Step 1.
Position the base plates with load cells on
the support surfaces and line them up in
accordance with the basic principles for
positioning. (See Principle #2, pg. 6)
Step 2.
We recommend scribing or marking a cen-
terline on the top plate. (See Fig. 15)

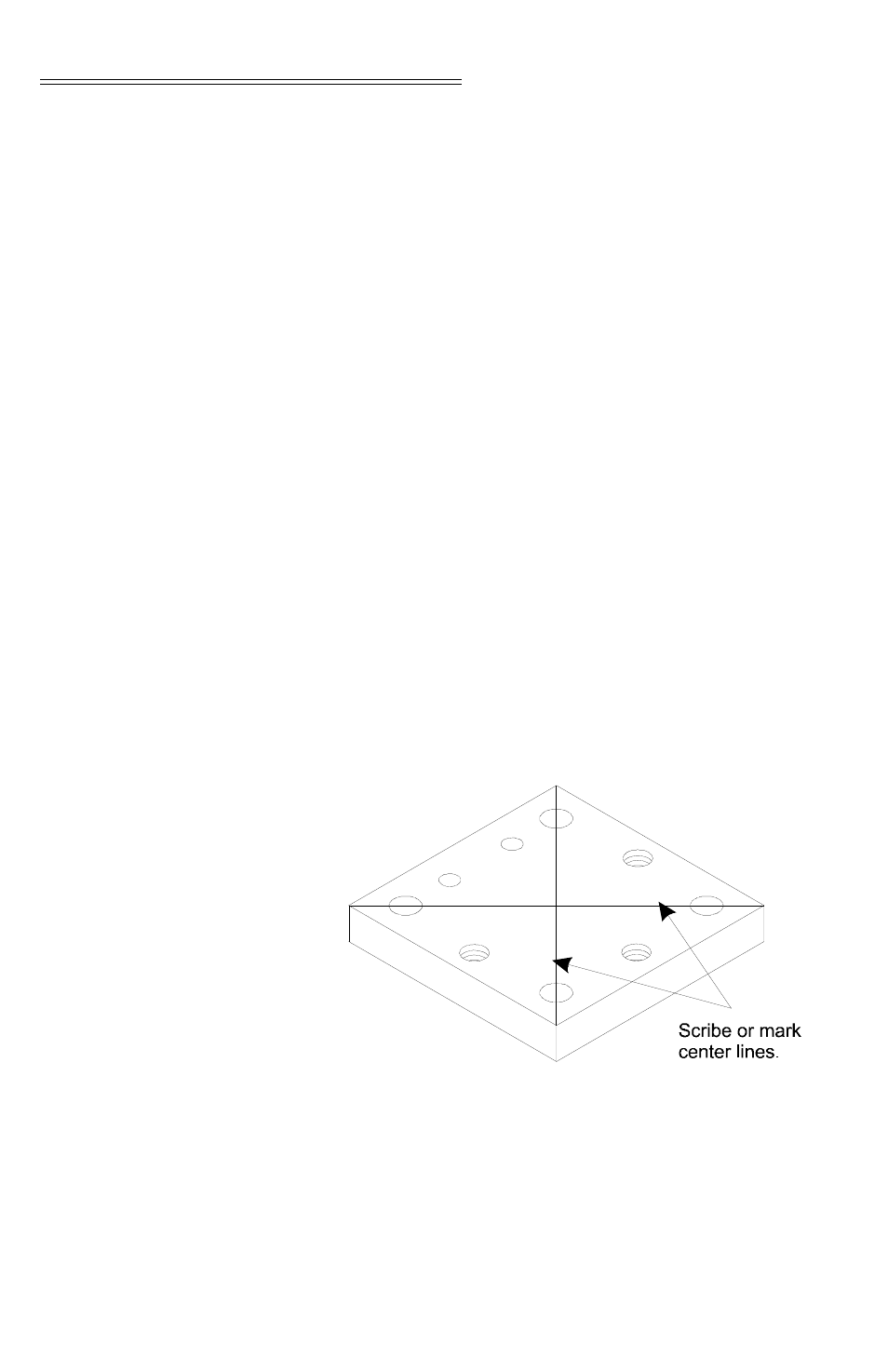

FIG. 15: MARKING THE TOP PLATE FOR
INSTALLATION
Installing Load
Point Assemblies
with Anchor Bolts
Check the outline drawing located on the www.har-
dysolutions.com site. The diagrams will give you the
Base Plate and Top Plate dimensions for the Load
Point Assembly you are installing, including the thru
