User's Guide
Functions of the buttons

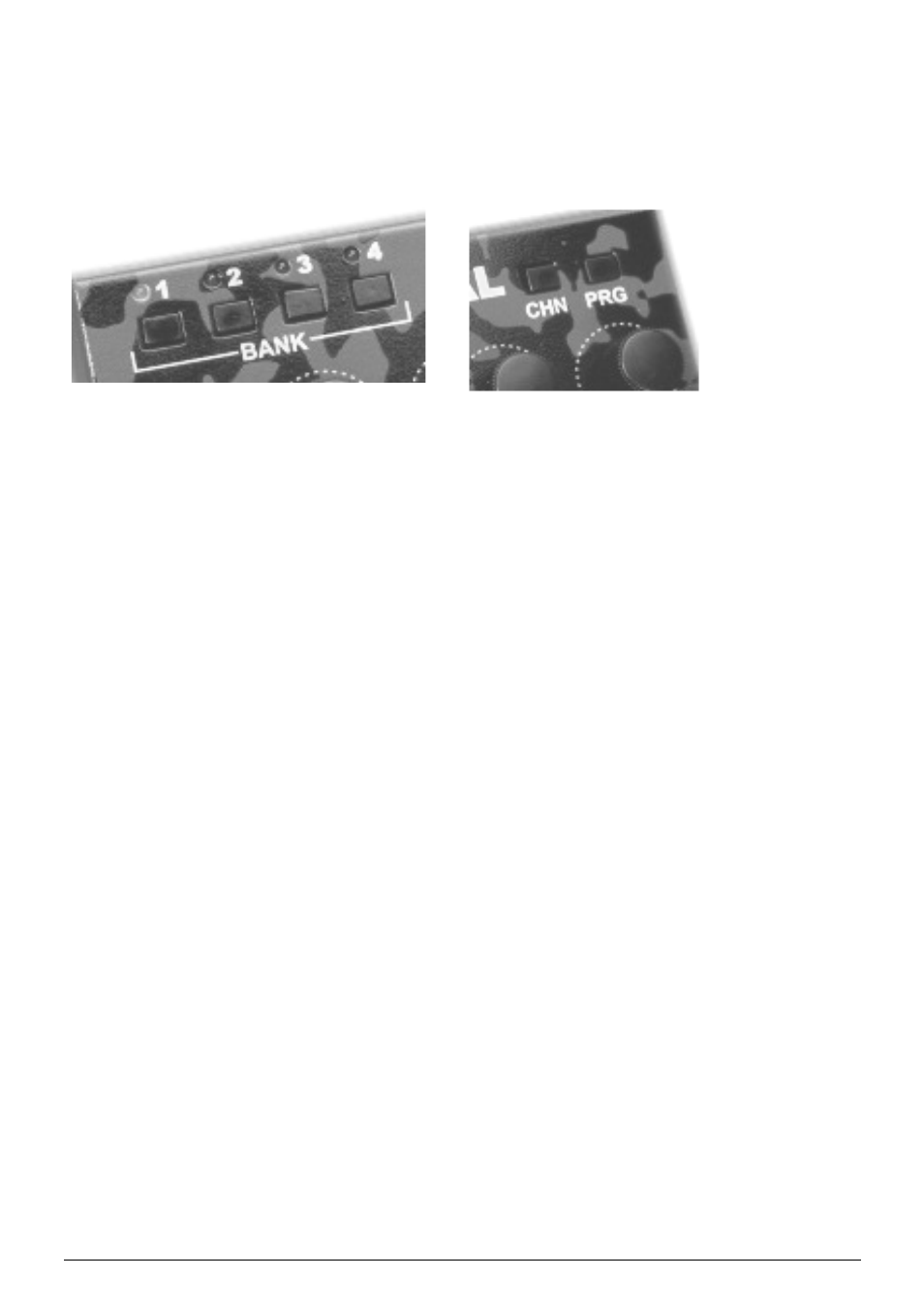

The setting of the different operation modes takes place with the four buttons with assigned LEDs
labeled Bank 1 to 4 at the left upper side and the two buttons labeled CHN and PRG (no LEDs) at the
right upper side.
These buttons are used to
(1) select one of four Banks.
(2) trigger a Snapshot.
(3) store the 16 absolute values of the currently
selected bank in the non-volatile memory
These buttons are used to
(4) select the Master Channel Mode for adjusting
the MIDI master channel of Pocket Dial.
(5) select the Program Change Mode to transmit
MIDI program change messages with control
knob #8.
(6) clear the Error State if necessary (e.g.
triggered by a MIDI overflow at the MIDI input)
(1) Selecting a new bank
Operate briefly the button of the new bank to be selected. All four LEDs light up briefly while the new
bank is selected. As soon as only the LED of the new selected bank turns on the 16 new MIDI
messages of the new bank are assigned to the 16 controls. The LED will light up permanently until
another bank is chosen.
(2) Triggering a snapshot
Operate briefly the button of the bank that is already selected. This triggers a snapshot, i.e. the present
16 values corresponding to the 16 controls are transmitted to the MIDI output.
(3) Storing the present absolute values
Hold the button of the bank that is already selected down for at least one second and keep it held down
until the 4 LEDs light up inverted, i.e. the LED of the currently selected bank turns off and the remaining
three LEDs turn on until the button is released. The present values of the 16 controls are stored into the
non-volatile memory as soon as the button is released.
