U S E R I N T E R F A C E
25 25 25 25
Options
Go into the main menu and click on „options“. Here you will find the following
options -

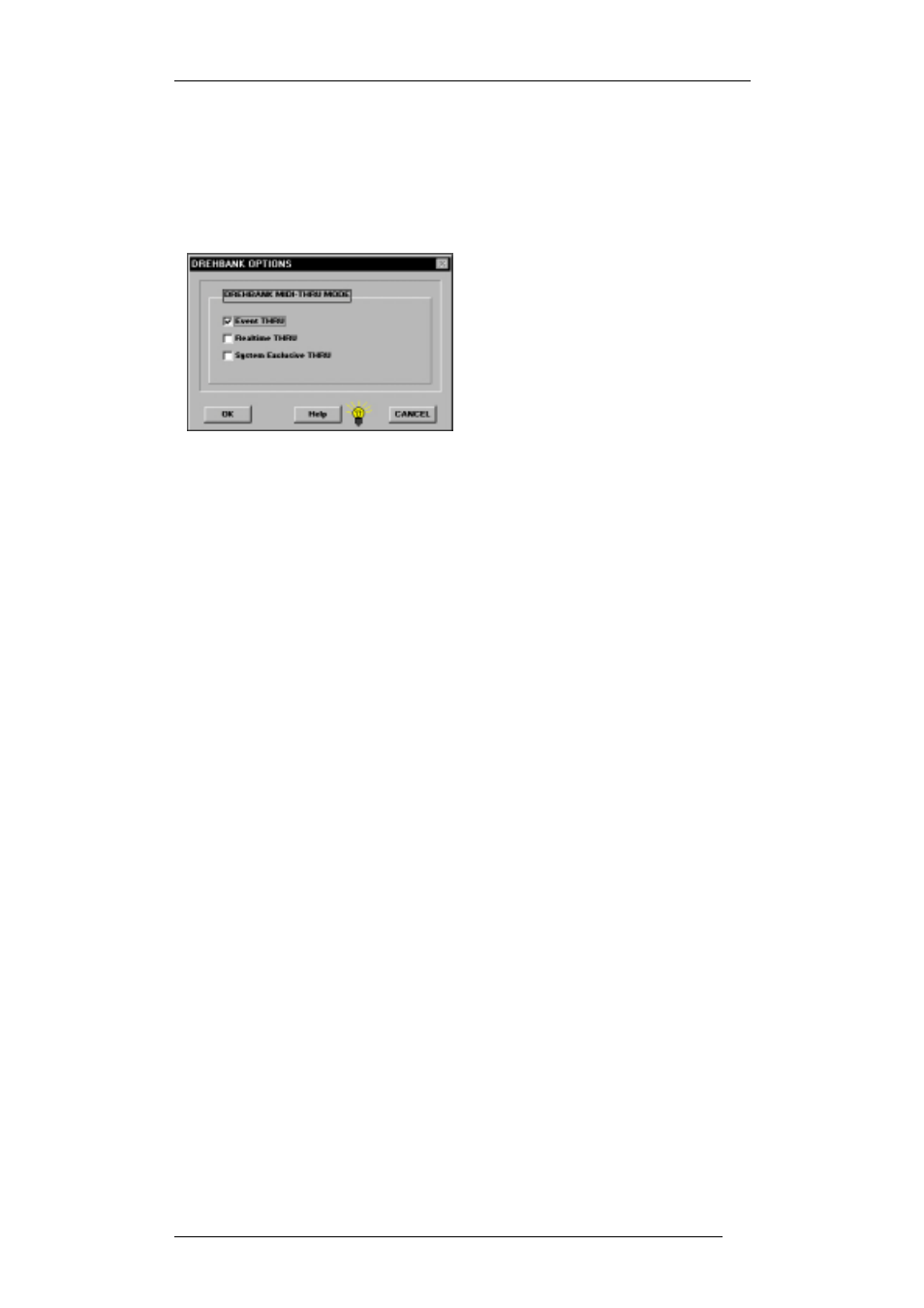

The Midi Thru Mode in the Drehbank
determines which type of MIDI
messages "get-THRU-ed" from the
Drehbank Midi Inputs to the Drehbank
Midi Outputs.
Event Thru
When enabled all Midi channel messages e.g. note events, controller events from
Midi In are forwarded to Midi Out.
Realtime Thru
When enabled all Midi realtime messages e.g. start, stop, timing clock from Midi In
are forwarded to Midi Out.
System Exclusive (SysEx) Thru
When enabled all Midi SysEx messages from Midi In are forwarded to Midi Out.
