Control valve
33
12. Hold the straight fitting with a 1” wrench.
See Figure 4.6.
13. Back off the jam nut using a 7/8” wrench.
See Figure 4.6.
14. Unthread the straight fitting and valve from the cylin-
der.
15. Place the control valve in a vise with the straight fit-
ting facing up. See Figure 4.7.
16. Remove the straight fitting.
17. Mark the orientation of the elbow to the valve.
18. Loosen the jam nut on the elbow fitting using a 15/16”
wrench.

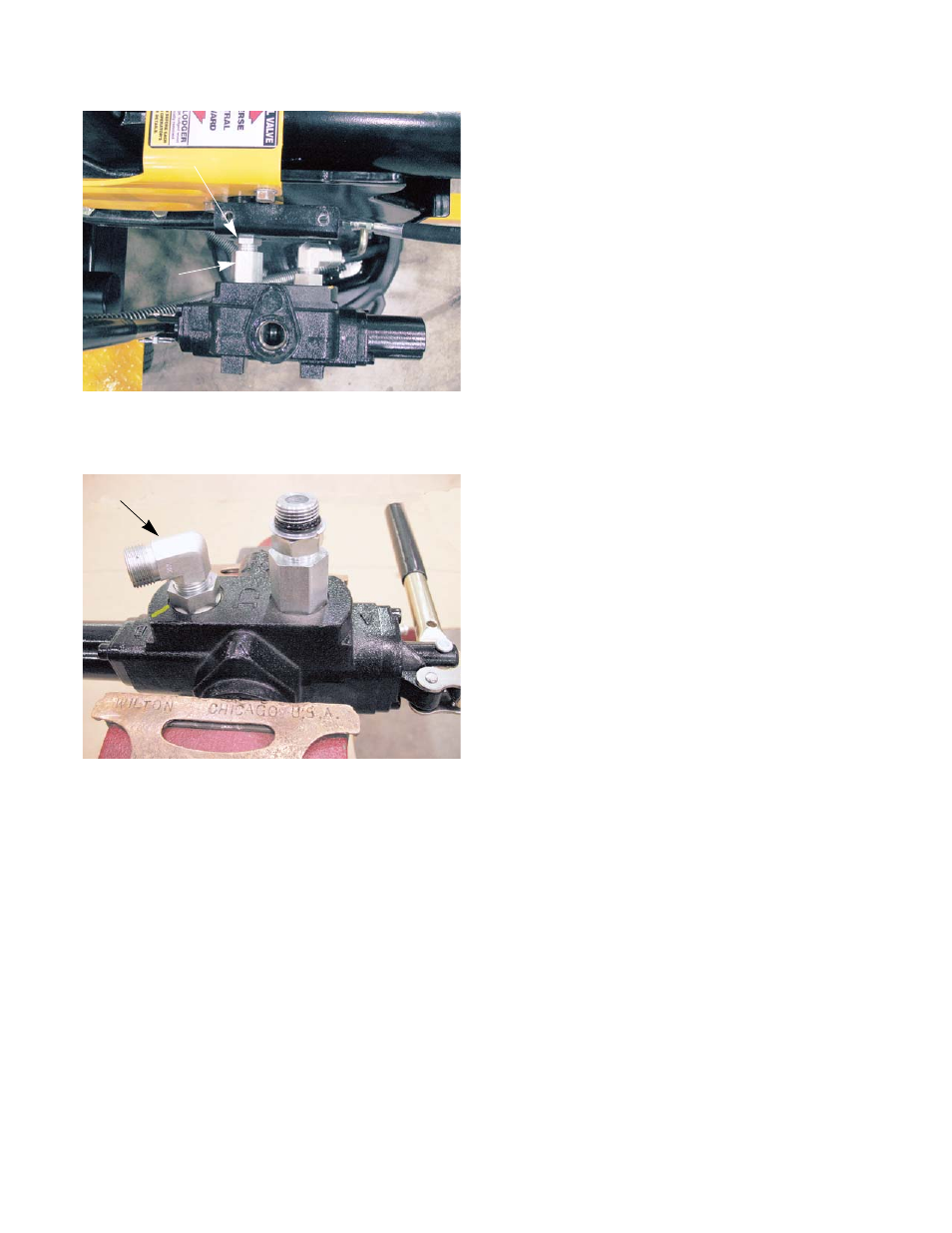

Figure 4.6
Straight fitting
Jam nut
Figure 4.7
Elbow fitting
