page 13 page 4
Power-Off programming
Turn off the tester. Press again while holding to enter
Power-Off programming (CF9 flashes with solid m0). Press or
to cycle CF9m0, CF9m1, CF9m2, CF9m3(USB models
only) and CF9End. Press to select a function.
Note: All power-on and power-off programming functions except for unit selection and
display orientation can be reset to factory defaults by the following procedure.
Turn on the tester Press PEAK and ZERO for 3 seconds to display flashing CF9 with
solid F0. Press ZERO and PEAK for 5 seconds until flashing CF9 disappears and
becomes only solid F0. Then release both PEAK and ZERO. Tester goes back to mea-
suring mode with factory default settings.
Memory clear
Memory location and value cycle. Press PEAK or ZERO to increase or decrease memo-
ry location (and corresponding value).
Single Memory Clear A memory location with a dot at both ends is the last stored data
and the only one that can be erased. Press SEND to erase, ErASEd is displayed. If you
attempt to erase other locations Error is displayed. Press ON/OFF to exit.
All Memory Clear While a memory value or location is displayed, press SEND for 3 sec-
onds, all data is erased and ErASEd is displayed, then – – – – –. Press ON/OFF to exit.
CF9 m0 Units selection
Press PEAK or ZERO to cycle; ‘U-01’: kgf-cm, ‘U-02’: N-cm, ‘U-03’: lbf-in or ozf-in
Press SEND to select, CF9End displays. Press SEND to exit.
CF9 m1 Torque dampening Factory set=’Fd6’
Press PEAK or ZERO to cycle: ‘Fd0, Fd 1, Fd2, Fd3, Fd4, Fd5 or Fd6’. Torque dampen-
ing averages rapid torque changes over time. Larger numbers allow more dampening.
Press SEND to select, CF9End displays, press SEND to exit (Torque dampening rate
displays each time the tester is turned on).
CF9 m2 +/– indicator Default=’SC-OFF’
Press PEAK or ZERO to cycle. ‘SC-OFF’: CW (+) and CCW (–) or ‘SC-On’: CW (–) and
CCW (+). Press SEND to select, CF9End displays, press SEND to exit.
Power-Off programming (clear data from memory)
Turn off the tester. Press again while holding to enter
memory mode.
PREPARATION (continued)

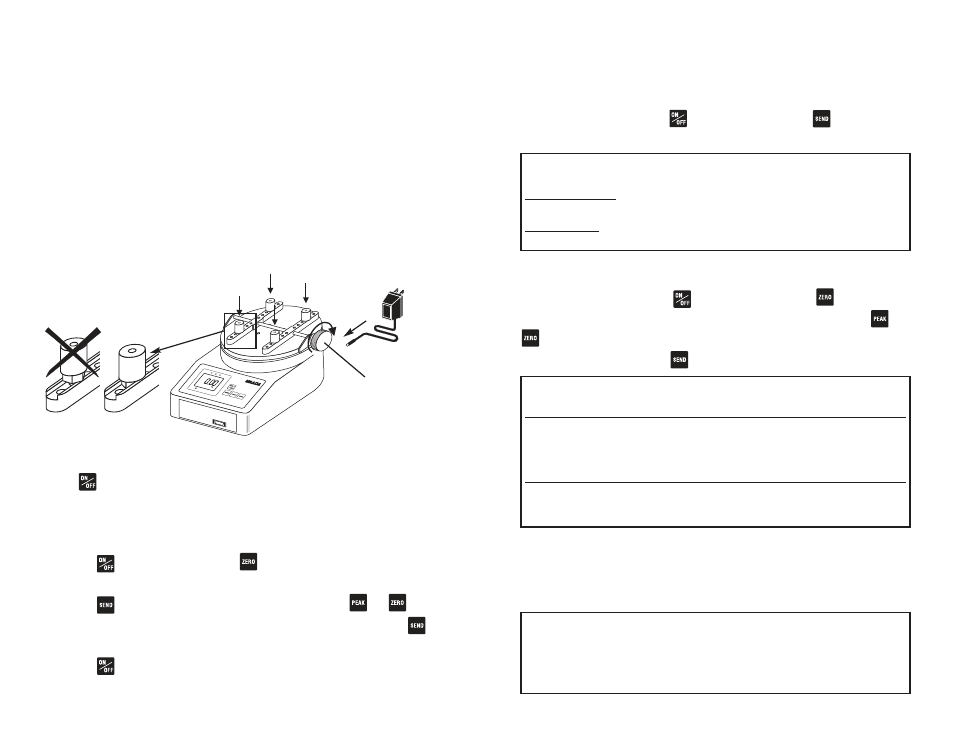

2. Hold sample table (C) upright with clamp handle (A) on right.
3. Slowly insert shaft on bottom of sample table (C) into top circu-
lar opening of main unit (make sure key and key way line up).
CAUTION do not apply excessive torque when assembling. If
unit is overloaded the overload indicator will flash (the tester
can be overloaded whether ON or OFF).
4. Choose hole locations for holding pegs based on the size of
the container being tested. Make sure the hex portion of the
pegs fits into the groove to prevent peg rotation.
(A) CLAMP HANDLE
NOTE:
Make sure hex portion of the
peg fits into the groove to pre-
vent peg rotation.
(E) AC ADAPTER/CHARGER
RECEPTACLE (ON BACK)
OPERATION
Selecting Units
Press to turn on the tester. The LCD display briefly shows the
capacity of the tester and then zero with a measuring unit (facto-
ry setup is lbf-in). If you want to change to other units:
1. Turn off the tester.
2. Press again while holding to enter Power-Off program-
ming mode (CF9 flashes with solid nn0).
3. Press to display U-03 with a unit, then press or
to cycle desired units (lbf-in, kgf-cm and N-cm), and press
to select (CF9 flashes with solid End).
4. Press to exit 1st. programming mode.
Once units are selected, the tester retains them as a default.
