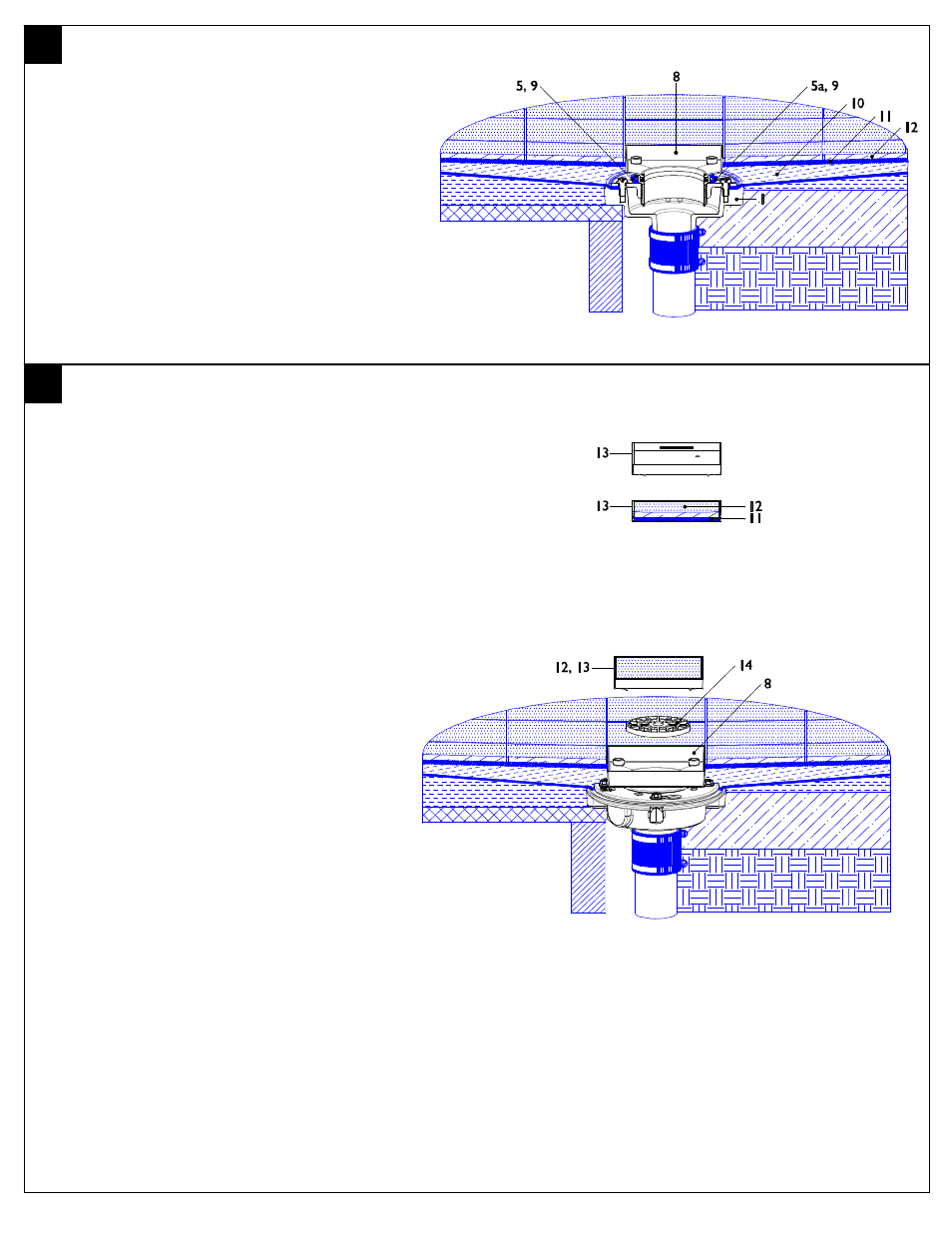

INSTALLING TILE
• Place some pea GRAVEL (9) around WEEP HOLES
(5a) to prevent MORTAR (10) from blocking WEEP
HOLES (5a)
IMPORTANT: It is necessary that WEEP HOLES (5a) are open and
free of building material to allow for proper water seepage
• Use MORTAR (10) to build up height to THROAT
(8) taking into account thickness of THINSET (11)
and TILE (12)
WARNING: Do NOT use harsh chemicals and scouring pads (e.g. acids,
Scotch Brite
®
, steel wool, etc…) as these product will damage frame
decorative finish and void warranty.
5
INSTALLING COVER
(INNER FRAME)
• Place appropriate amount of THINSET (11) into
COVER (13) to achieve proper level height of cover
TILE (12) to surrounding tile
WARNING: Do NOT use harsh chemicals and scouring pads (e.g. acids,
Scotch Brite
®
, steel wool, etc…) as these product will damage frame
decorative finish and void warranty.
• Place STRAINER (14) into THROAT (8)
• Place TILE/COVER (12,13) into THROAT (8)
Removal KEY is provided to aid is removal of COVER (13),
place in secure place for possible future use
