California Faucets Vessel Deck Faucets (1-Handle) - Manual

CF-XX01-1_ii_100601.doc Pg 1
CF-3301-1 CF-3501-1
CF-4201-1 CF-6201-1
Single Hole Lavatory Faucet with Pop-Up Drain
Installation Instructions
1
IMPORTANT: Read all instructions prior to installation and provide copy of instructions to consumer.
Operating Specifications:
Recommended Supply Pressure: 20 to 70 psi *
* If water pressure exceeds 70 psi, install a Pressure-Reducing Valve (RPV).
INSTALLING FAUCET TO SINK/DECK

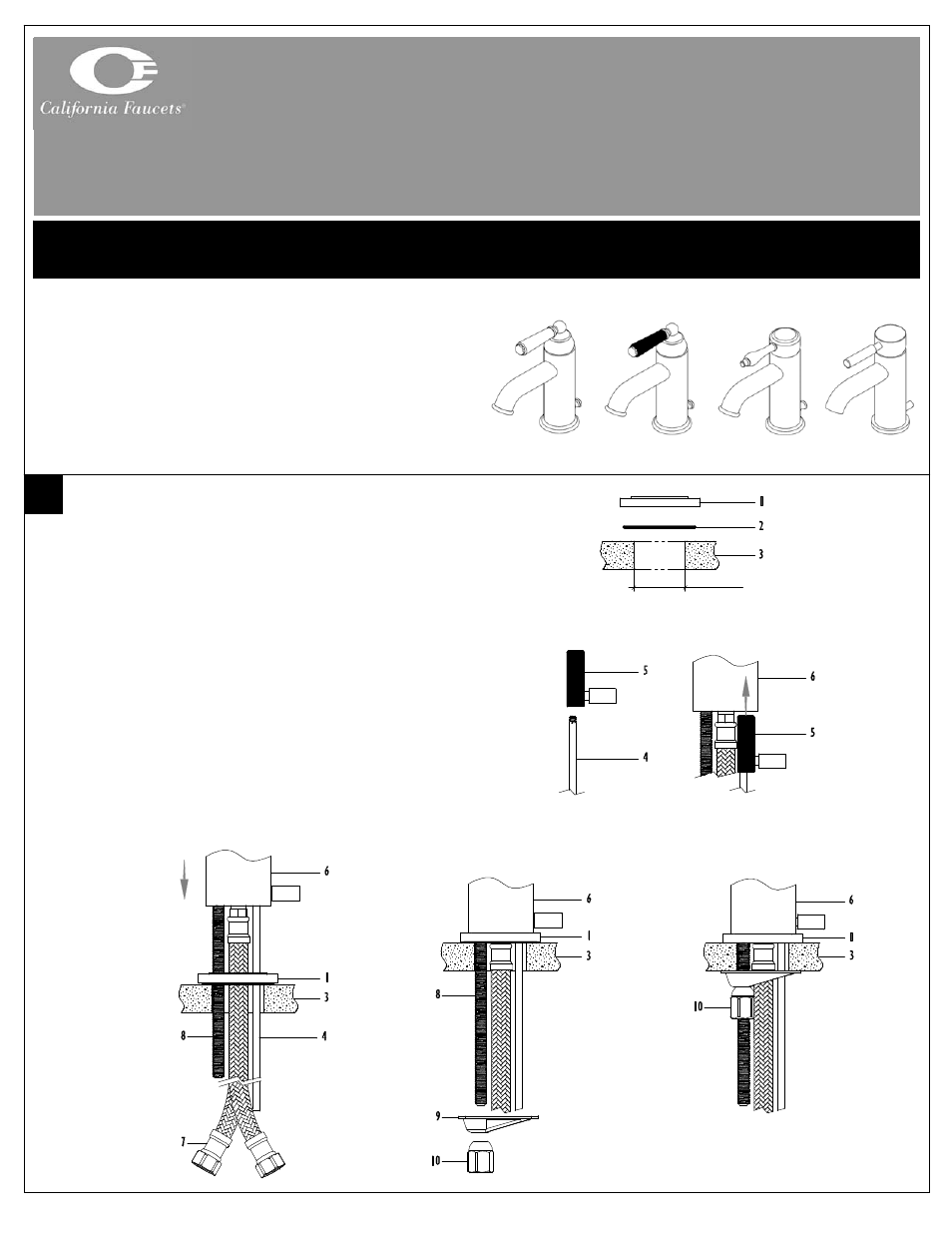

• Insert O-RING (2) into bottom of BASE RING (1) and
center over sink/deck THROUGH-HOLE (3)
NOTE: Recommended sink/deck THROUGH-HOLE is Ø1-d”
• Attach LIFT ROD (4) to LIFT ROD GUIDE (5) and
insert into bottom of BODY (6)
• Insert FLEX HOSE (7) (one at a time), LIFT ROD (4) and
THREADED ROD (8) though BASE RING (1) and
sink/deck THROUGH-HOLE (3)
• Place BODY (6) on top of BASE RING (1)
• From underside of sink/deck THROUGH-HOLE (3),
place MOUNTING BRACKET (9) and NUT (10) onto
THREADED ROD (8)
• Tighten NUT (10) until BODY (6) and BASE RING (1) is
secure to sink/deck
CALIFORNIA FAUCETS RECOMMENDS THAT ALL PLUMBING PRODUCTS BE INSTALLED
BY A LICENSED PROFESSIONAL
Ø 1-d”
CF-3301-1 CF-3501-1 CF-4201-1 CF-6201-1
