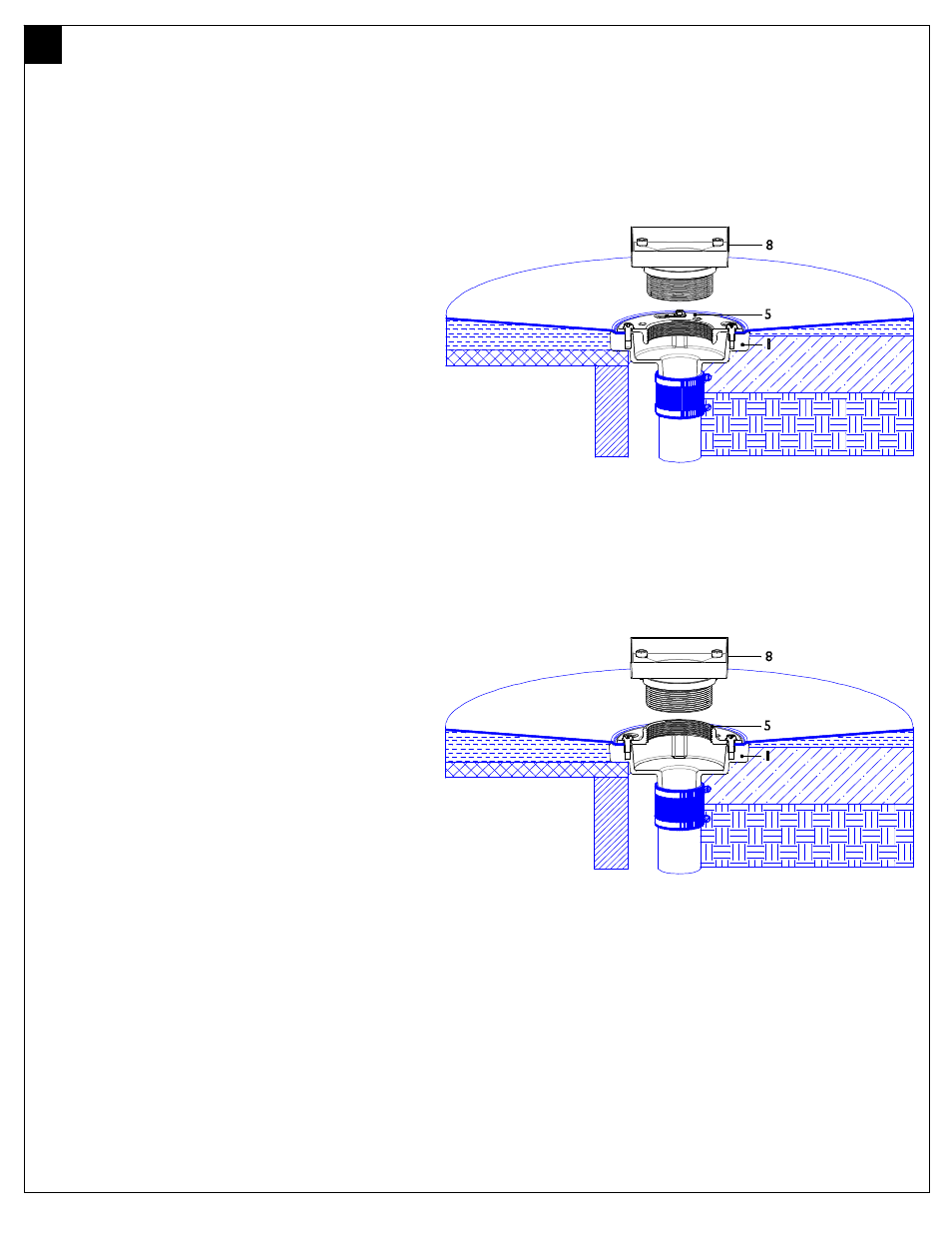

INSTALLING THROAT
(OUTER FRAME)
• To obtain proper height, rotate THROAT (8) to raise
or lower (one complete rotation is equal to 1/8” in
vertical height)
NOTE: When COLLAR (5) is installed in up position an additional 7/8”
in height is achieved
Shown with Collar Down
Shown with Collar Up
Adds 7/8” of Height
