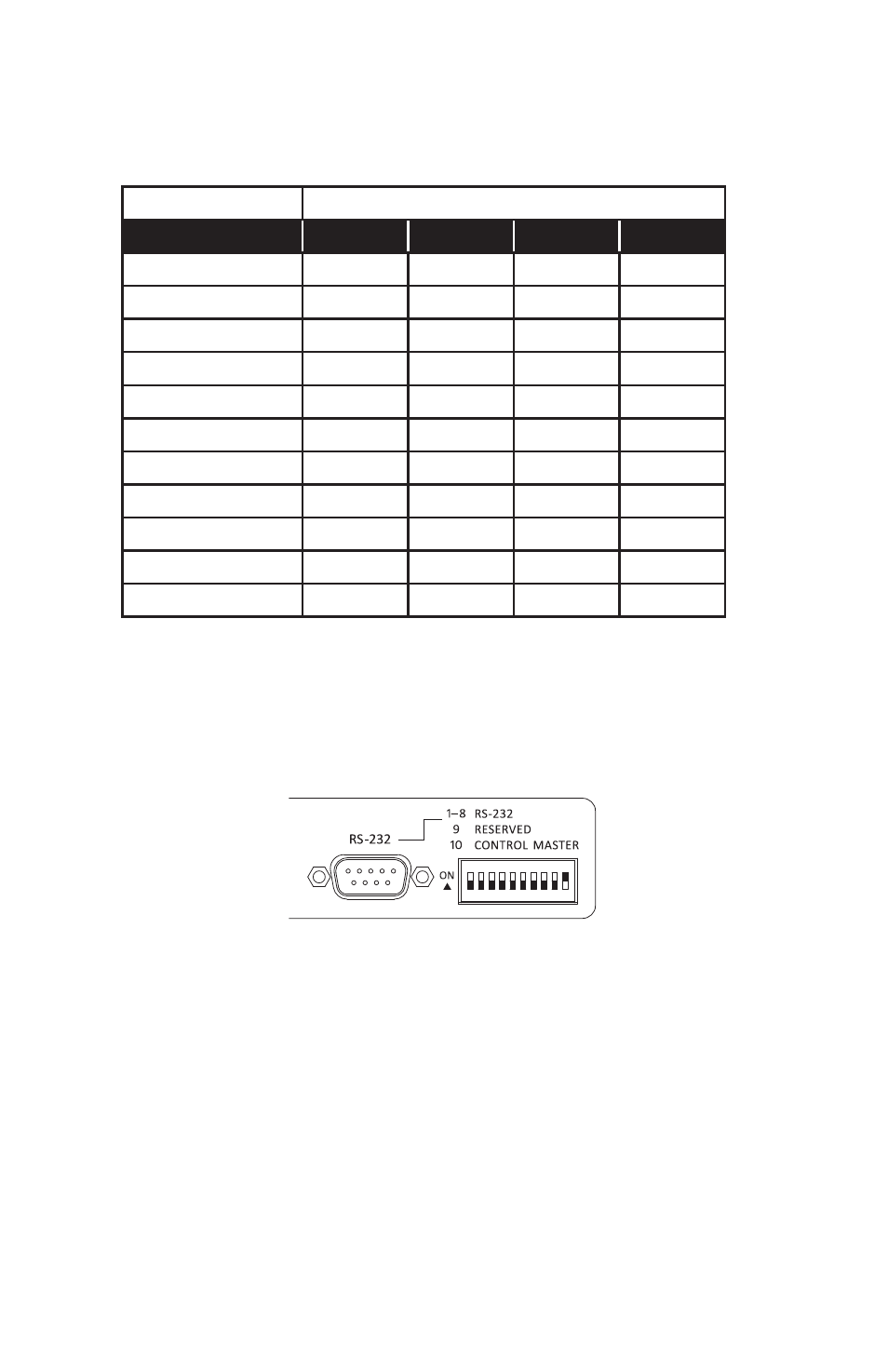

The following table lists the DIP switch settings for the available RS‑232 baud
rates.
Switch
Baud Rate
1
2
3
4
1200
off
off
off
off
2400
off
off
off
on
4800
off
off
on
off
7200
off
off
on
on
9600
off
on
off
off
14400
off
on
off
on
19200
off
on
on
off
28800
off
on
on
on
38400
on
off
off
off
57600
on
off
off
on
31250 (MIDI)
on
off
on
off
Control Master DIP Switch
In the RS‑232 DIP switch block on the 6416i, switch #10 is used to set the
module as the network’s Control Master. Only one module can be designated
as Control Master in a Pro64 network.
When switch #10 is in the up position, the 6416i becomes the network’s
Control Master. (Black indicates the DIP switch handle.)
To set the 6416i as the Control Master, start with Pro64 network devices
powered off. Set switch #10 to the up position. Power up the 6416i and the
rest of the network devices. The red Control Master LED on the front panel of
the 6416i should be lit indicating that it is now the network’s Control Master.
N
ote
: Be sure that only one Pro64 device is set to be the network Control
Master.
