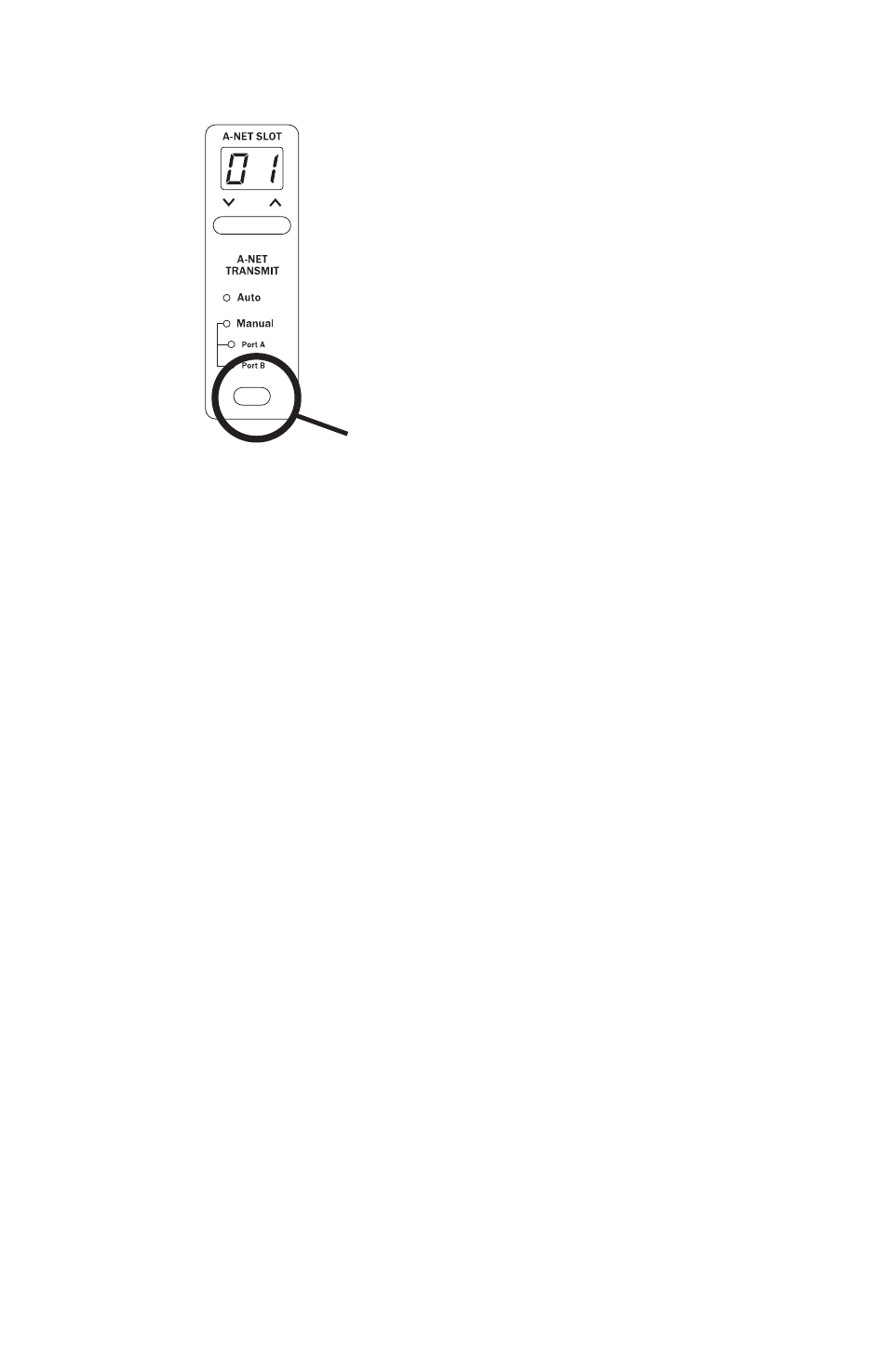

The selection button in the A-Net
Transmit/Receive section of the
interface is used to choose the network
mode on the Control Master. (Seen here
is the 6416i.)
Changing the Network Mode
The button beneath the Auto/Manual Mode LEDs is used to select the
network mode and to set the transmit or receive port in Manual Mode.
Pressing the selection button will cycle through the available settings and
will flash both the mode LED and the Enter/Cancel LED. To confirm and
change the network mode, press the E
ntEr
button. The Control Master will
update the display on all modules in the network to reflect the change. Press
the C
anCEl
button to exit the mode change and return to the current state.
Managed Mode
Managed Mode requires the use of a computer with the Pro64 network for
tasks such as firmware updates, system monitoring, control, and editing.
The Control Master is the only module that can allow the network to enter
Managed Mode.
Entering Managed Mode requires the user to press the E
ntEr
button after
pressing the M
anagEd
button on the Control Master. Once the network
enters Managed Mode, all modules will light their Managed LEDs.
