Cisco IAD2430 Series Integrated Access Devices Hardware Installation Guide
OL-4234-06
Chapter 3 Installing Cisco IAD2430 Series IADs
Connecting Cables
Figure 3-22

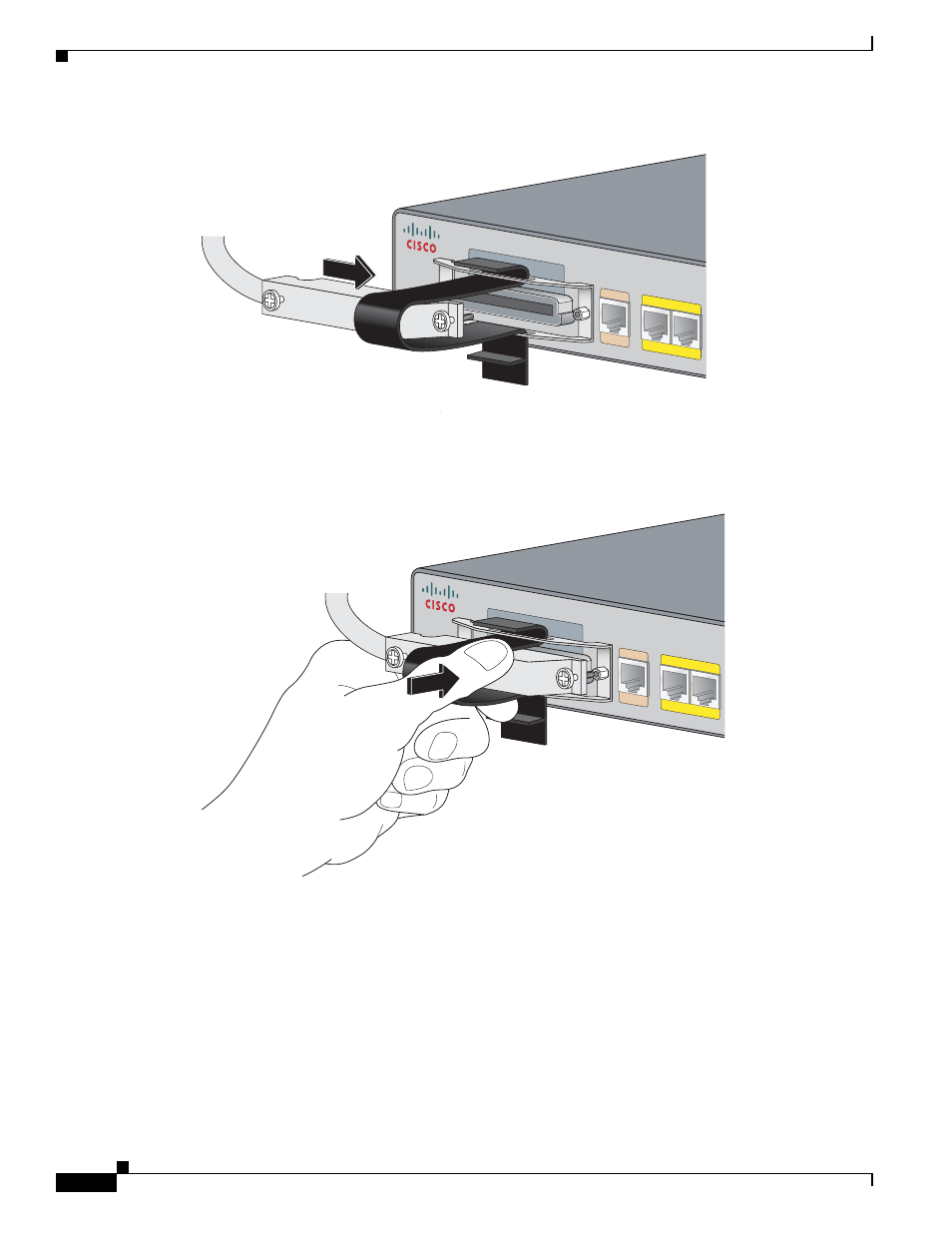

Sliding the RJ-21 Cable Through the Velcro Harness
Step 2
Push the male RJ-21 cable connector into the slot of the female RJ-21 connection on the router. Push the
male RJ-21 cable firmly until the RJ-21 security clips are firmly seated (see
Figure 3-23
Pushing the RJ-21 Cable in to the Cisco IAD2435 IAD
Step 3
Use a number 2 (flat or Phillips screwdriver) to attach the captive screws on the RJ-21 male connector
(see
).
281200
IAD2435-8FXS
FastEtherne
t
WAN
0/1
0/0
T1/E1
FXS
281201
IAD2435-8FXS
FastEtherne
t
WAN
0/1
0/0
T1/E1
FXS
