Chapter 1 Overview of Cisco IAD2430 Series IADs
LEDs

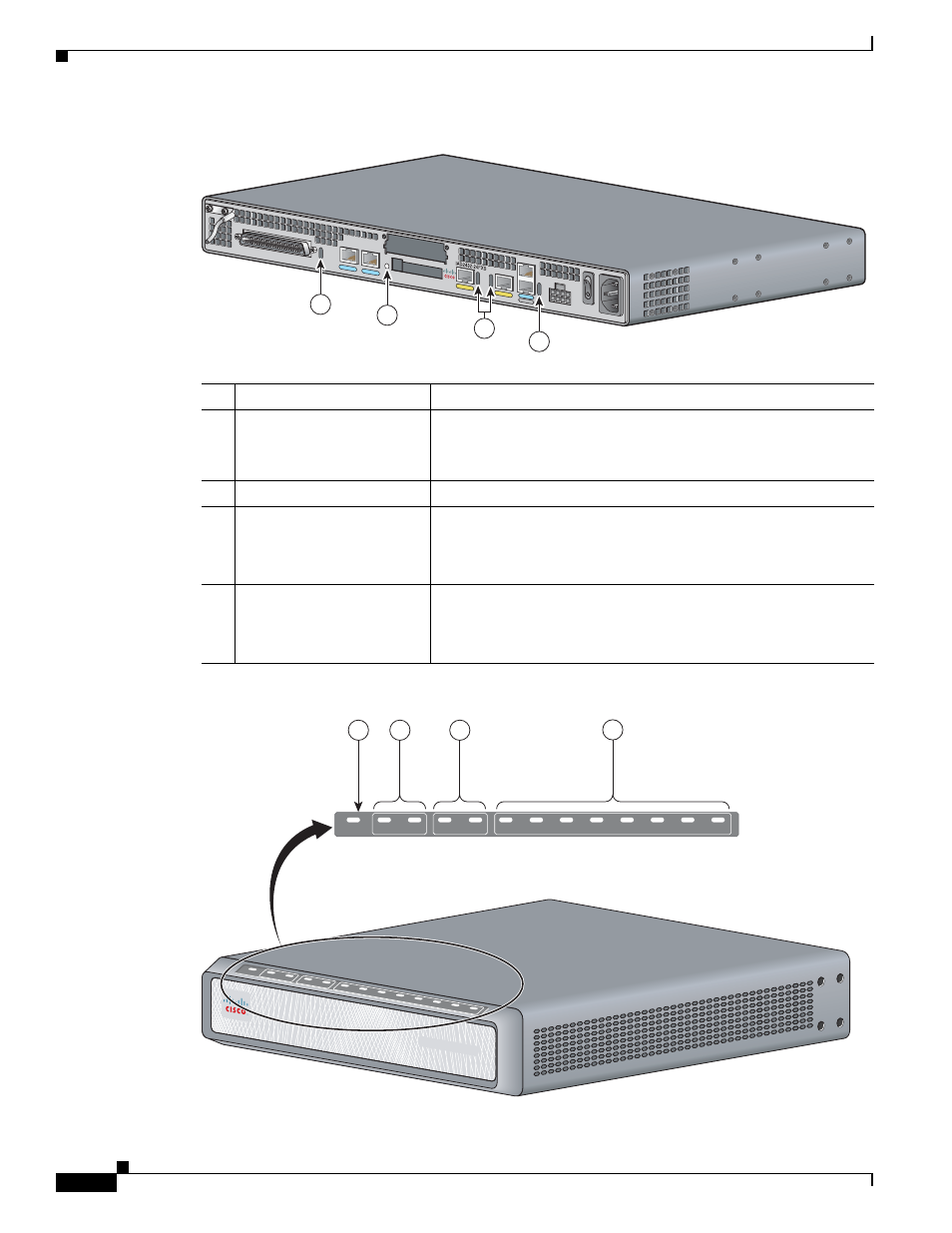

Figure 1-11 Cisco IAD2400 Series LEDs (Cisco 2432-24FXS shown)
Figure 1-12 Cisco IAD2435 Series LEDs
No LED/Color Description
1 ACT—green
Status—green
Green indicates activity—when any of the 24 voice ports is active
in a call (off hook) or when one of the analog ports is in use
Green when accessing IAD
2 CF (Slot 0)—green Green when accessing read or write function
3 Link—green
100—green
FDX—green
Indicates link activity
100BASE-T is active
Green when full duplex is active, off when in half-duplex mode
4 ACT—green
SYS—green
PWR—green
Blinking green during packet transfer and interrupts
Blinking green for power-on and self-test, then solid green
Solid green when system has power
95007
1
2
4
3
Cisco IAD24
00 SERIES
OK 0/0
0/1
FE
T1/E1
FXS
CD
AL 2/0 2/1 2/2 2/3
2/4 2/5 2/6 2/7
272227
4 1
OK 0/0 0/1
FE T1/E1 FXS
AL CD 2/0 2/1 2/2 2/3 2/4 2/5 2/6 2/7
2 3
