Cisco IAD2430 User Manual
Page 49

3-13
Cisco IAD2430 Series Integrated Access Devices Hardware Installation Guide
OL-4234-06
Chapter 3 Installing Cisco IAD2430 Series IADs
Wall-Mounting the Chassis

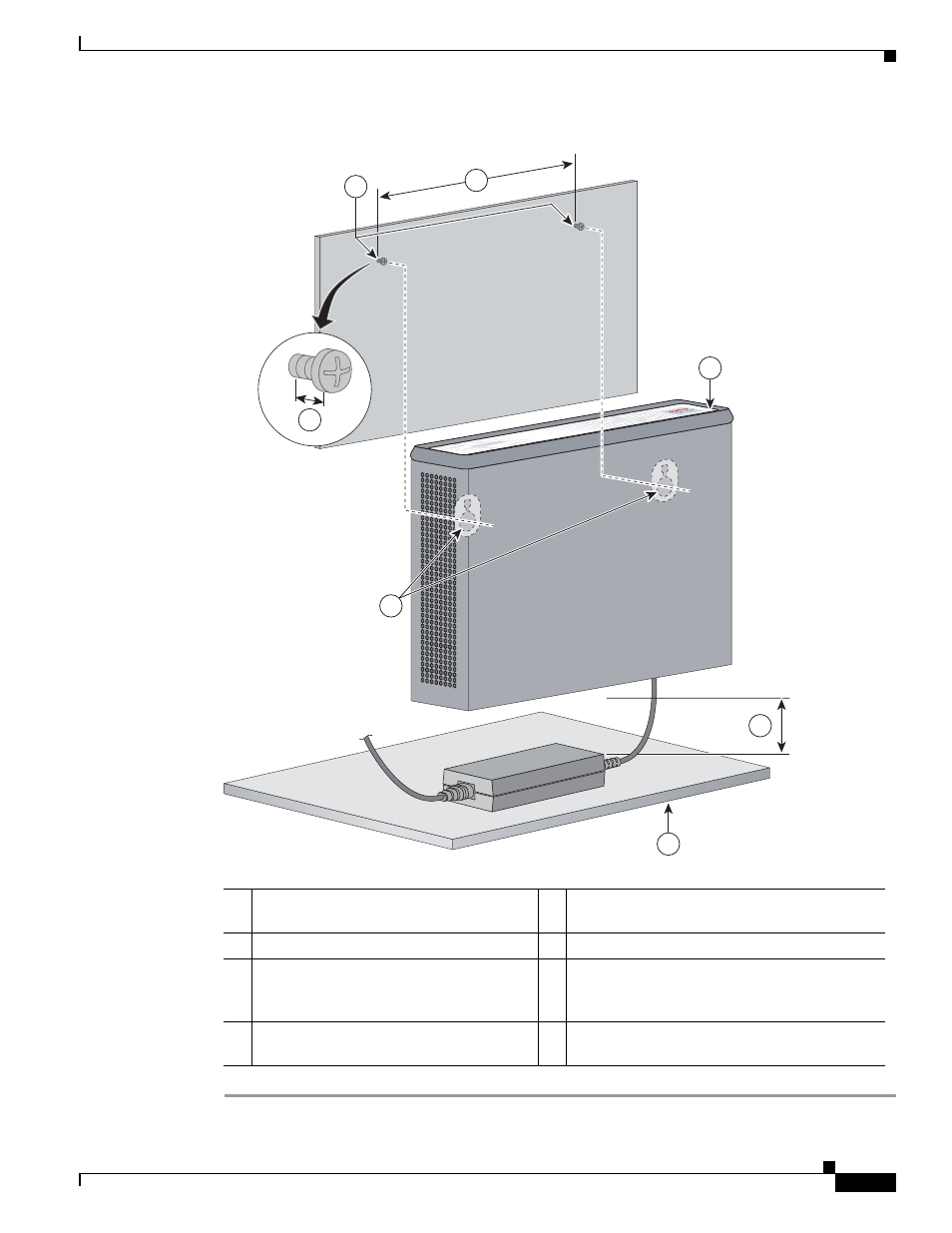

Figure 3-12
Mounting the IAD2435 Router on a Wall
1
Two number-six, 3/4-in. screws
2
Distance between the two screws
(7 5/8 in. [19.35 cm])
3
Cisco IAD2435 router
4
Mounting brackets
5
Maximum distance between the router and
the external 60-W power supply adapter
(6 ft [1.8 m])
6
Horizontal surface for placing the external
60-W power supply adapter
7
Distance between the screw and the wall
(1/8 in. [0.32 cm])
231985
1
5
6
4
2
7
3
