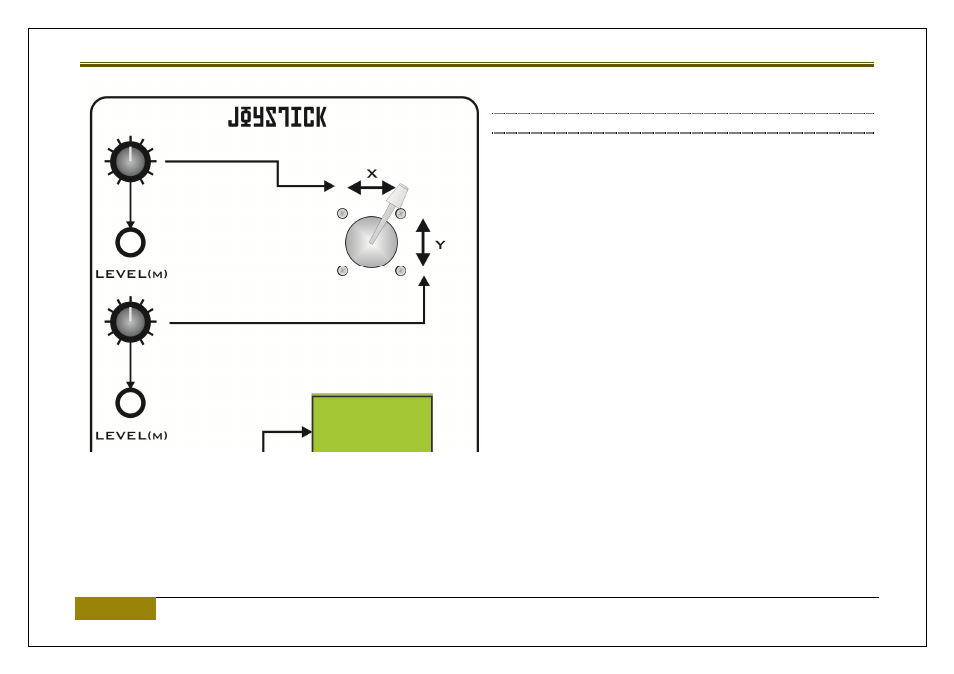

JOYSTICK
The joystick has two axis – X and Y.
A control voltage is produced from each. Maximum range is -12V to
+12V.
The X and Y controls and sockets are essentially identical.
LEVEL control
This is a level / range control for the CV output fed to the socket.
This is a gate voltage that is produced each time MIDI note 01 is
received.
This could, for example, be patched to the Sequencer’s RESET input, so the sequencer can be programmed to reset using MIDI Note 01.
