360 Systems 1200HD-EX - Manual (Page 90)

MAXX-1200 Owner’s Manual Page 89
Entering Network Parameters
From the GUI’s main menu bar, click EDIT>CONFIGURE>NETWORK. The screen of Figure
33 below appears. Make sure the basic network parameters have been entered.

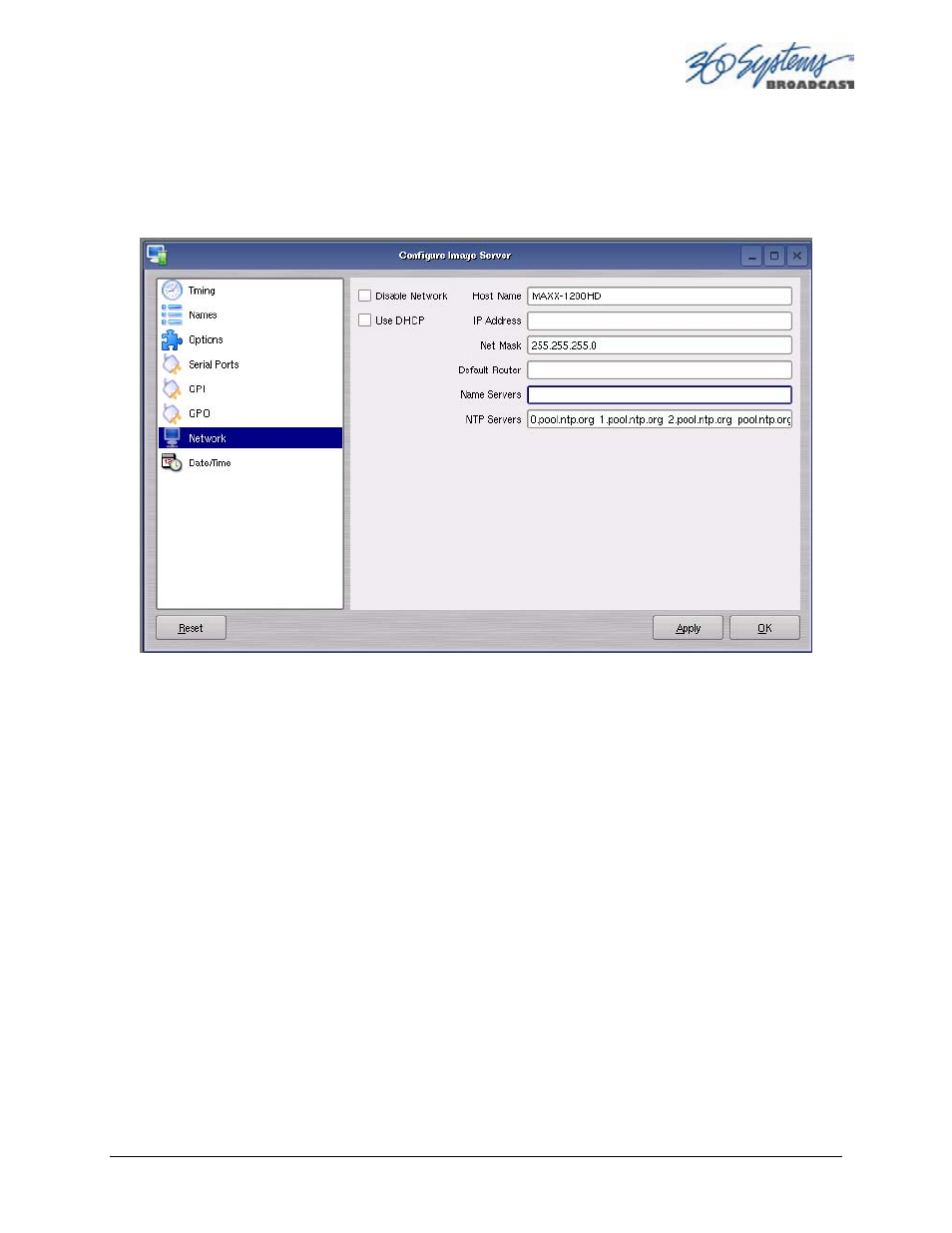

Figure 33 - Network Configuration Screen
Disable Network
: uncheck
Host Name : (Any name will suffice, but since this name appears on each line of the server’s
diagnostic logs, it is a good idea to keep this short.) The name should also be unique from other
devices on the network.
If “Use DHCP” if not checked, then enter a fixed IP address compatible with your local subnet.
For example,
IP Address
: 192.168.1.20
Net Mask : 255.255.255.0
Default Router : 192.168.1.1
The Name Servers and NTP Servers fields provide the information needed to reach the public
time servers.
The NTP Servers field contains a list of time servers, either by numeric IP address, or by site name
(URL). Entries are separated by spaces.
