INSTALLATION
Maintenance and cleaning
D00000
34
81
4

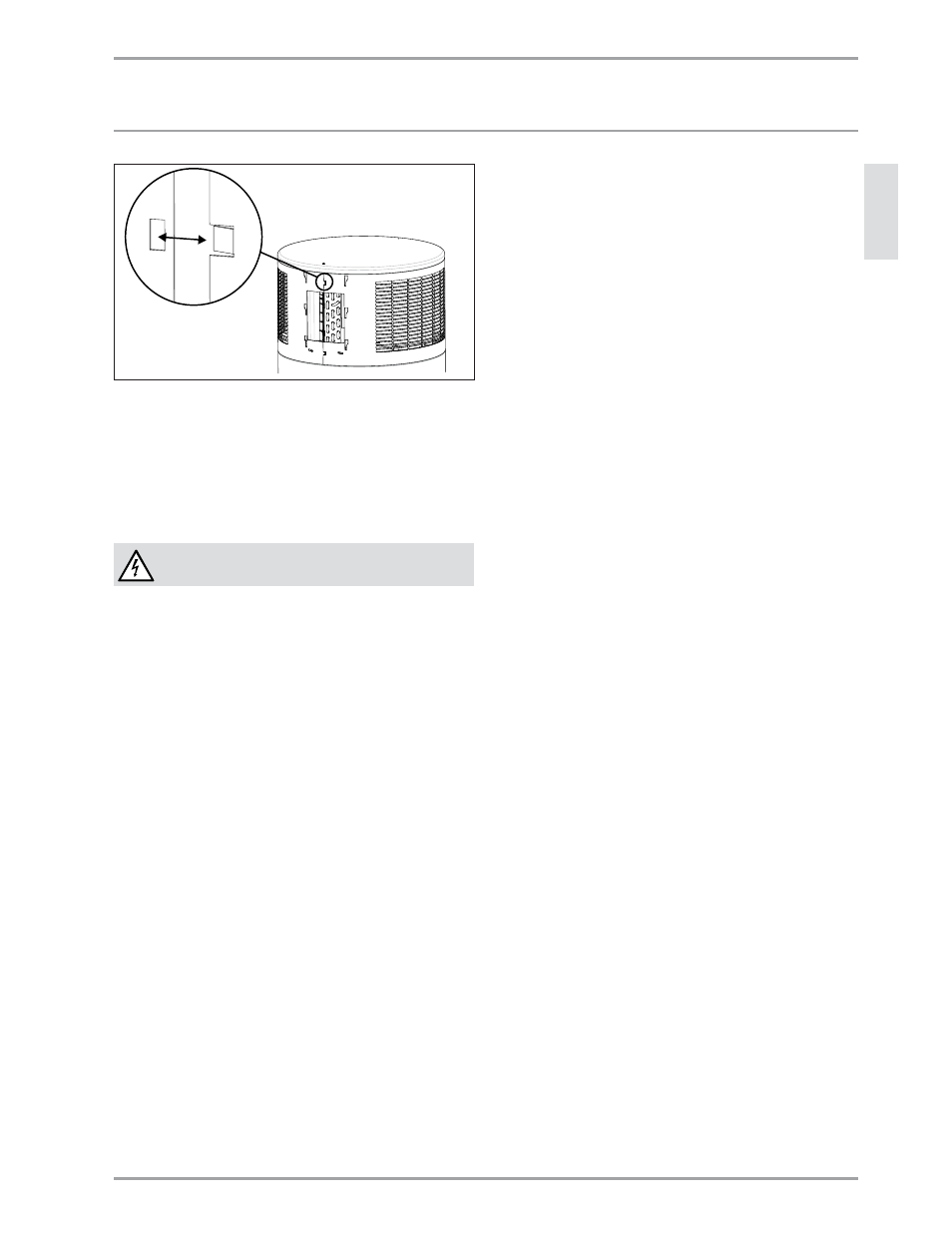

  Fit the upper casing ring. The casing ring overlaps along the
joint. A tab on one end clips into the recess on the other end
of the casing ring.
  Secure the casing ring with screws.
  Fit the pipe collar of the condensate drain and the conden-
sate drain bend.
14.10 Fitting the appliance cover
WARNING Electrocution
  Reconnect the ground wire to the appliance cover.
  Place the lid back on the appliance top.
  Connect the ground cable to the signed ground terminal.
  Connect the cable linking the control with the appliance ECB
to the back of the panel.
  Insert the control panel.
  Secure the appliance cover and the control panel using the
screw at the top of the control panel.
