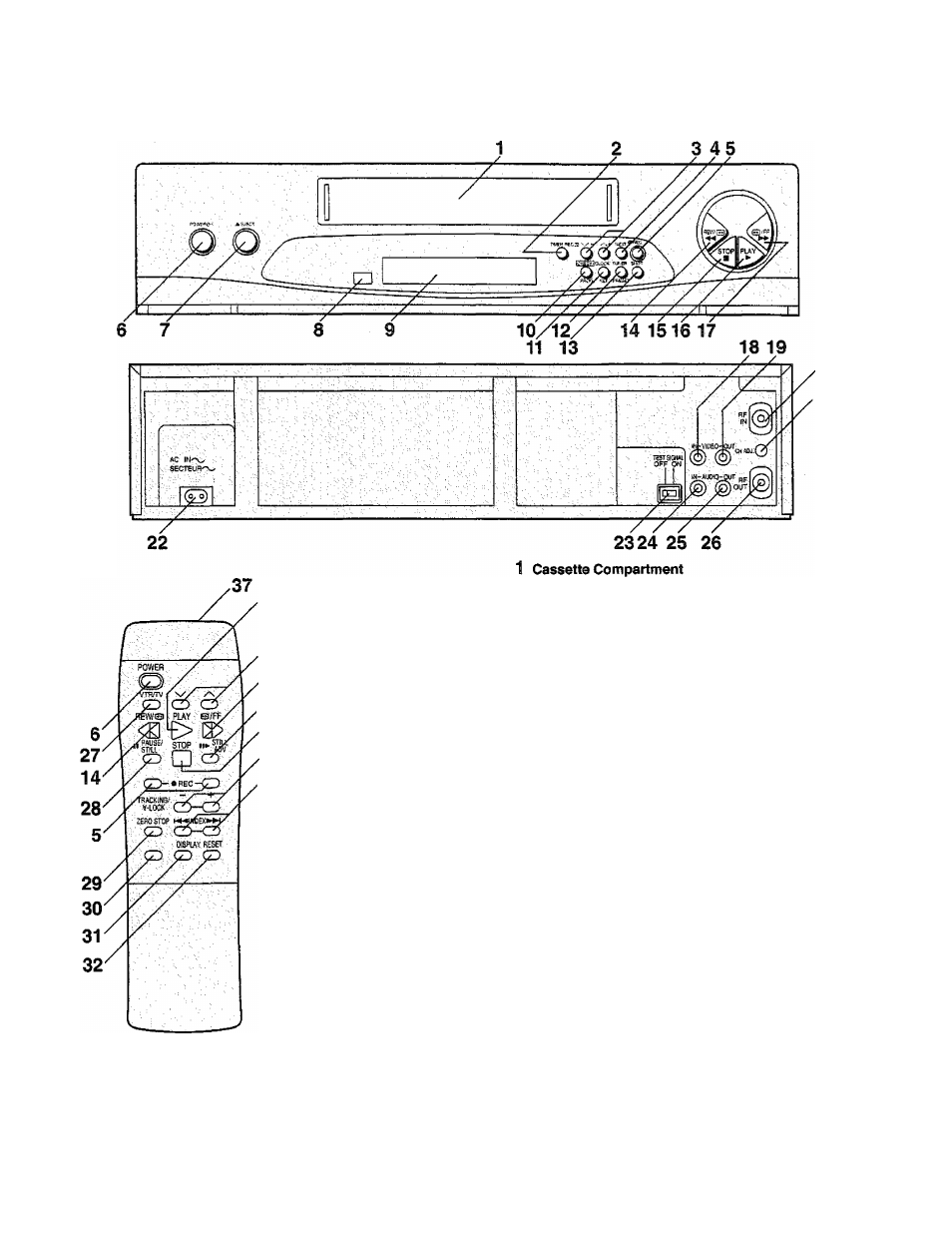

Controls and Connection Sockets
16
36
17
-35
15
34
-33
20
,21
Insert a video cassette here.
2 TIMER REC
To turn the timer recording function on and off.
0 is lit or not lit.
Once activating timer recording normal operation is not
possible, unless this button is set to off.
3 V /\/~ +
To select the required programme position (TV
station).
To set the clock and timer recording.
4 NEXT
To proceed to the next Item during setting procedures.
5 REC
To start a recording.
6 POWER (i)/l
To switch the VTR from on to standby mode or vice
versa. In standby mode, the VTR is still connected to
the mains.
7 EJECT
To eject a video cassette.
8 Infra-red Remote Control Receiver Window
9 Display
10 CHECK/PROG
To select a timer programme number.
*'P1, P2, P3 ... or P8" is lit.
To display details of preset timer recording in the timer
standby mode.
11 CLOCK SET
To set the time.
12 TUNER PRESET
To initiate TV station settings for the tuner.
