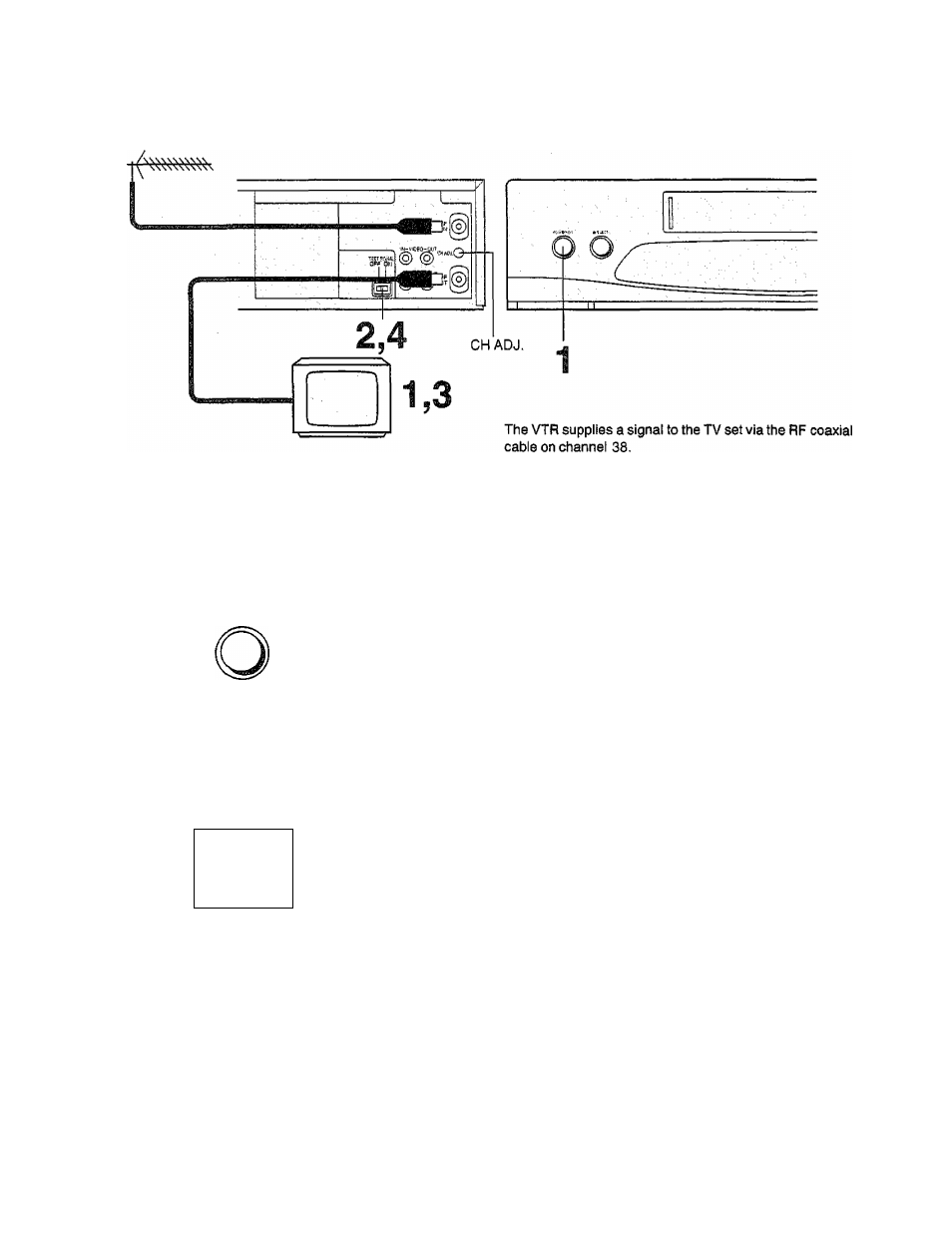

Tuning the TV to your VTR
Operations
it is possible to view the video picture on your TV in the
same way that you watch TV broadcasts.
It you have connected the VTR to the TV through the video
and audio input sockets then you do not need to foliow the
procedure mentioned below.
1
POWER 6^t
Turn on the TV and VTR.
TEST SIGNAL
OFF ON
cn
To generate a test pattern, set TEST
SIGNAL to ON.
.
^
...............
Set the TV to an unused position which you
wish to use for your video playback.
TEST SIGNAL
OFF ON
Set TEST SIGNAL to OFF.
□=i
Note:
The test signal is transmitted on video channel 38.
If you are encountering interference from a TV broadcast on
this video channel, you may readjust to another free
channel (30-40) by using the CH ADJ, screw which is
located on the rear of the VTR.
Please note that if the CH ADJ. screw is used then you will
have to retune your TV to the test signal as in item 2 to 4
above.
