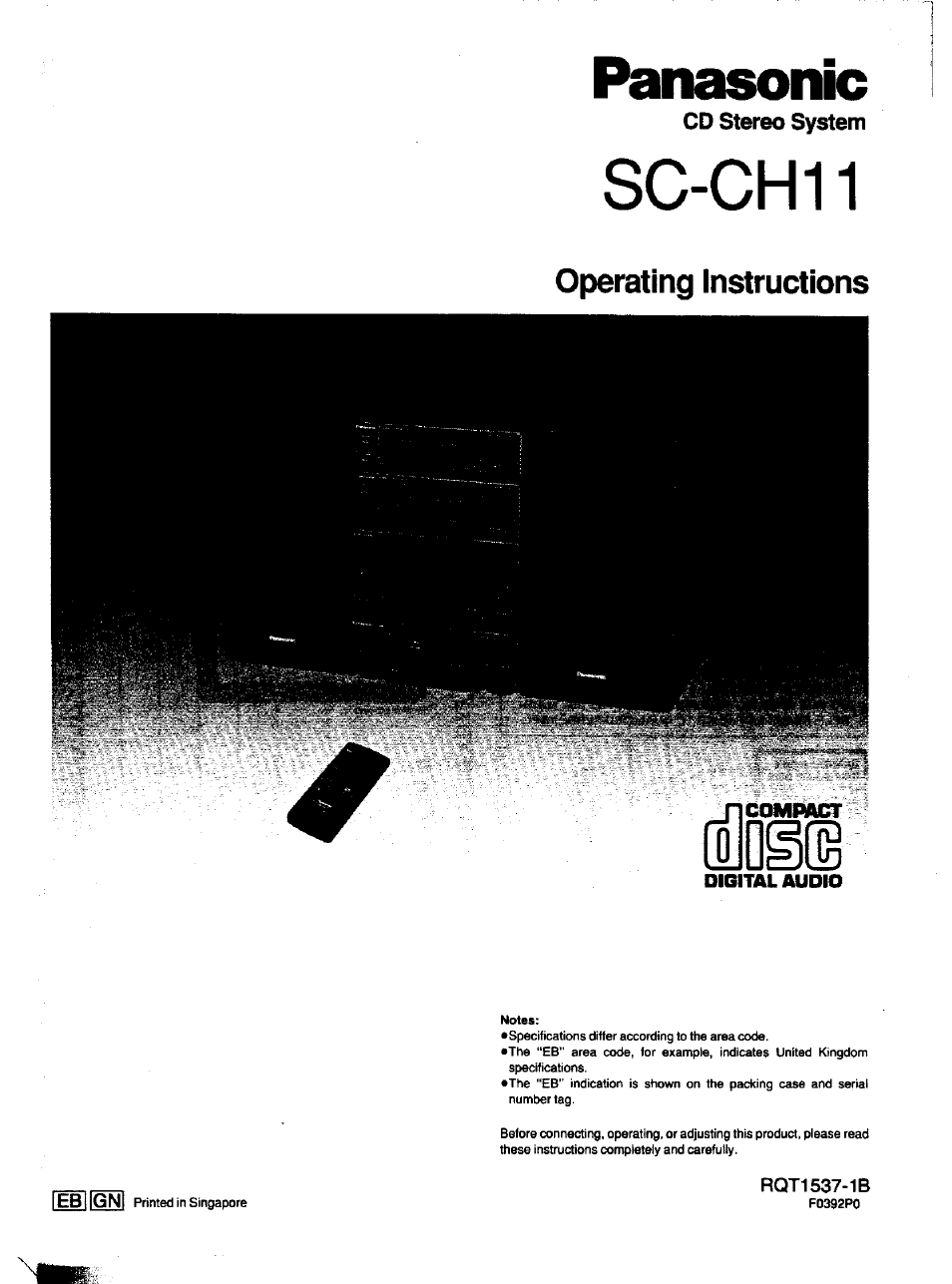

Panasonic SC-CH11 User Manual
Sc-ch11, Panasonic, Operating instructions
Table of contents
Document Outline
- Panasonic
- Table of Contents
- Suggestions for Safety
- ■ Use a standard AC wall outlet
- ■ Grasp the plug when disconnecting the power supply cord
- ■ Place the unit where it will be well ventilated
- ■ Avoid places such as the following:
- ■ Be sure to place the unit on a flat, level surface
- ■ Never attempt to repair nor reconstruct this unit
- ■ Take particular care if children are present
- ■ If water Is spilled on the unit
- ■ Avoid spray-type insecticides
- ■ Never use alcohol or paint thinner
- ■ Disconnect the power supply cord if the unit will not be used for a long time
- ■ If trouble occurs
- For United Kingdom
- Concerning the Remote Control
- Preparations
- Preparations
- Connections
- Tuner
- ■ Tuner control
- © Timer play button (PLAY TIMER)
- (2) Timer recording button (REC TIMER)
- 0 Cancel button (CANCEL)
- 0 Set button (SET)
- 0 Display select button (DISPLAY)
- @ Clock/timer button (CLOCK/TIMER)
- 0 Sleep timer button (SLEEP)
- 0 Compact disc edit-recording mode select button (CD EDIT)
- 0 Tuning mode select button (TUNING)
- 0 Band select button (BAND)
- 0 FM mode/beat proof button (FM MODE/BP)
- @ Jog dial (Al JOG)
- (continued)
- Amplifier
- ■ Amplifier controls
- 0 Power “STANDBY c!)/ON” switch and indicator (POWER STANDBY (!)/ON)
- @ Equalizer controls
- (GRAPHIC EQUALIZER LEVEL)
- 0 Super bass button (SUPER BASS)
- 0 Volume level control (VOLUME)
- ® Volume preset button (VOL PRESET)
- (@ Remote control signal sensor (SENSOR)
- ® Input select buttons (TAPE, AUX, CD, TUNER)
- ® Deck 1 cassette holder Ф Reverse-side playback button (
- Ф Stop button (□)
- Ф Forward-side playback button (>)
- @ Deck 2 cassette holder
- Ф Record/record standby button (REG PAUSE)
- ® Tape counter reset button (COUNTER RESET)
- (|^ Deck 1 cassette eject button (A EJECT)
- 0 Deck 1/deck 2 select button (DECK 1/2)
- @ One-touch tape edit buttons (ONE TOUCH TAPE EDIT)
- ® Fast-forward/rewind/tape program sensor (TPS) buttons [◄◄ (TPS), (TPS) ►►]
- @ Dolby noise reduction button (DOLBY NR)
- (g) Reverse mode seiect button (REVERSE MODE)
- @ Deck 2 cassette eject button (^ EJECT)
- (continued)
- @ Disc tray
- Stop button (□)
- ® Disc tray open/ciose button OPEN/CLOSE)
- ® Piay button (>)
- @ Headphones jack (PHONES)
- ® Skip/search buttons ( • ►►/►►! )
- 0 Pause button (II)
- Common operation controls
- Setting the Time of Day
- Basic Operating Procedure
- 1 Press POWER STANDBY (!) /ON to switch on the power.
- 2 Select the sound source by pressing TAPE, CD or TUNER.
- 3 Start the sound source.
- 4 Adjust the volume level.
- Press the muting button on the remote control.
- Reduce the volume level.
- Connect the headphones to the headphones jack.
- 1 Press the TUNER input select button.
- 2 Press TUNING to select the MANUAL tuning mode.
- 3 Press the band-select button to select FM, LW or MW.
- 4 Turn the jog dial to tune in the desired broadcast.
- Automatic tuner operation only for FM
- Memory presetting
- ■ From the main unit
- 1 Press the band-select button to select FM, LW or MW.
- 2 Press TUNING to select PRESET.
- 3 Turn the jog dial to select the desired preset channel.
- ■ if noise is excessive in the FM mode Press FM MODE/BP to monaural position.
- ■ From the remote control
- 1 Press TUNER/BAND to select FM, LW or MW.
- 2 Press the numeric button corresponding to the preset channel you wish to tune in.
- ■ Most recent memory
- Sequential play
- Direct access play
- ■ From the main unit
- 1 Press the CD input select button.
- 2 Turn the Jog diai to select the track where you want to begin play.
- 3 Press the play button.
- ■ From the remote control
- 1 Press the CD input select button.
- 2 Press a numeric button to select the desired track number.
- ■ From the main unit
- 1 Press the CD Input select button.
- 2 Turn the jog dial to select the track you want to play.
- 3 Press SET.
- 4 Repeat steps 2 and 3 for each track you wish to program in sequence.
- 5 Press the CD play button.
- ■ Program memory function
- Press the numeric buttons to select the track numbers.
- 4 Repeat step 3 until you have completed the program.
- 5 Press the CD play button.
- ->czz::='
- ■ Changing the program
- Press CANCEL (front panel or remote control) in the stop mode.
- ■ To add the entry
- ■ To confirm the program
- While in stop mode, press the sklp/search button.
- ■ To cancel program play
- Press RANDOM on the remote control while player is In the stop mode.
- ■ To cancel random play
- Press RANDOM once again to end random play.
- CD
- special features
- ■ Skip function
- While in play mode, press or ►►/*
- skip button momentarily until you locate the desired track.
- ■ Search function
- While in play mode, press and hold one of the search buttons. Release the button when you have reached the desired point.
- ■ To cancel repeat play Press REPEAT once again.
- To play back prerecorded cassettes
- Press the TAPE input select button.
- Press EJECT, and then Insert the cassette you wish to play.
- 3 Press REVERSE MODE.
- Press DOLBY NR if the cassette you want to play was recorded with Dolby noise reduction.
- Press one of the play buttons to start playback.
- ■ To stop playback
- Press the stop button.
- ■ Full auto-stop
- ■ About the Dolby Noise Reduction system
- Press the fasMorward/rewind (TPS) button while the tape is playing.
- To fast forward or rewind the tape
- To record from the radio or external source
- Tape-to-tape recording from deck 1 to deck 2
- Sequential CD recording (ALBUM)
- Switch on the power.
- 1 Press the CD Input select button.
- 2 Press OPEN/CLOSE on the CD player to load a disc.
- 3 Press CD EDIT.
- 4 Turn the Jog dial to select ALBUM.
- 5 Press SET.
- 6 Load a cassette in deck 2.
- 7 Turn the jog dial to specify the length of the tape you are using.
- 9 Press the CD play button for automatic recording.
- ■ To cancel tape length priority recording (fit edIt-recording)
- Press the CD stop button twice.
- ■ To confirm the piay sequence
- You can confirm the play sequence on the display by pressing the skip/search button In the stop mode.
- (continued)
- Program edit-recording
- 1 Follow tape length priority recording steps 1 through 4 (page 40).
- 2 Turn the jog dial to select PROGRAM.
- 3 Press SET.
- 4 Turn the jog dial to select the length of the tape you are using.
- 5 Press SET.
- b Turn the jog dial to assign the tracks in sequence.
- 7 Press SET.
- 8 Repeat steps 6 and 7 to complete the program.
- 9 Press the CD play button to start recording.
- To record another disc on the remaining blank tape
- 12 Press VOL PRESET to set the volume level for timer play.
- 13 Adjust the volume level using the volume level control.
- 14 Press VOL PRESET again.
- 15 Press one of the input select buttons.
- 16 Press PLAY TIMER.
- ■ When you have made a wrong setting on steps 1 to 10 (on page 46)
- Press CANCEL.
- ■ To confirm timer play
- Press CLOCK/TIMER In the power standby mode.
- ■ To cancel timer play Press PLAY TIMER.
- Setting timer recording
- To use the sleep timer
- Using an External Unit
- Troubleshooting Guide
- Technical Specifications
