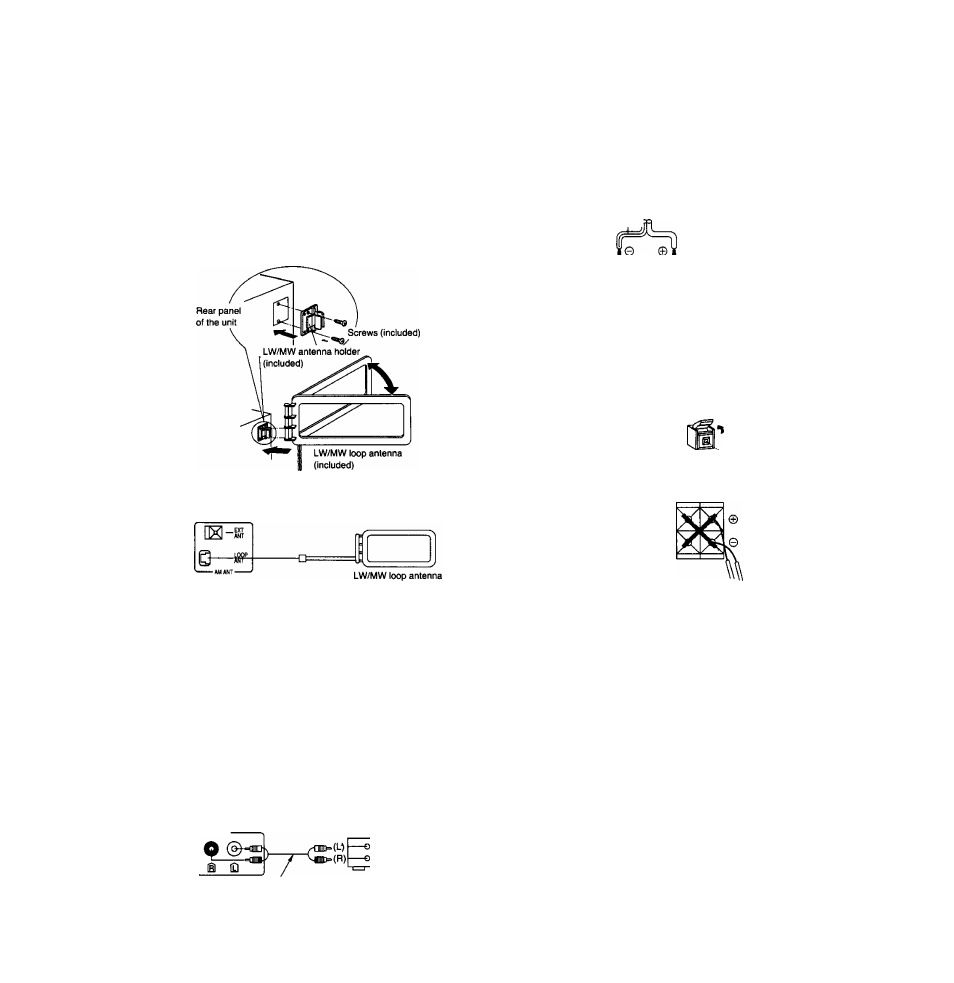

Connect the LW/MW loop antenna provided
with this system.
You must connect this antenna to receive LW/MW broadcasts.
Connect the LW/MW loop antenna to the AM antenna termi
nal. (The indication AM used here includes both MW and LW.)
You may attach the LW/MW antenna holder to the rear panel
of the system or to a rack or other structure.
Clamp the antenna to the holder and position the loop for the
best reception. To minimize noise pickup, keep the loop an
tenna away from the speaker cable, power cord, and metal
surfaces.
Connecting the LW/MW loop antenna:
(included)
Connecting the LW/MW outdoor antenna (not Included)
You may need an outdoor antenna if you use this system in a
mountainous region or inside a reinforced-concrete building,
etc.
--------------------5-12 m----------------------------
IS-*-
0
-
LOOP
ANT
Run between 5 and 12 m
of vinyl-covered wire
horizontally along a
window or other
convenient location.
3
Connect an external unit, such as audio tape
deck (for playback only) or output terminals of
a VCR or TV (not included).
Connecting external units:
-AUX'
L /AUDIO'S
R kOUT )
Stereo connection cable
(not included)
Video cassette recorder
(not included)
Connect the speaker cables [for right (R) and
left (L) channels].
Match the two wires from the left and right speaker cables with
the same colored levers of the speaker terminals, then insert
the wires into the respective terminals.
r‘
■
‘
■
-s.
For areas except for United Kingdom
Be sure to connect the striped wire to the negative
terminals. „ .
Striper
Notes:
•Connect speaker cables before connecting the AC power
supply.
•The load impedance of any speaker used with this unit must
be 6 ohms.
Connection of speaker cables
1. Strip off the outer c
covering, and twist the
center conductor.
2. Tilt the lever back and
insert the wire.
3. Close the lever and pull
the wire gently to be sure
that it is secure.
Notes:
To prevent damage to
circuitry, never short-circuit
positive (H-) terminals and
negative (-) speaker wires.
Be sure to connect only
positive (-!-} wires to positive
(-I-) terminals and negative
(-) wires to negative (-)
terminals.
15 mm
Twist
X
5
Connect the AC power supply cord after you
have connected all other cables and cords.
Note:
Configuration of the AC outlet and AC power supply cord
differ according to area.
For United Kingdom
•t<7
/
Fit a suitable plug to the AC power
supply cord.
Household
AC outlet
