Preparations
(continued)
Connections
2 3 4
(?) -Í
Da-a
e®
a Ù
Connect the FM indoor antenna provided with
this system.
Tack or tape this antenna to a wall. If you use a tack, be sure
it does not contact the Internal antenna wire. Experiment with
the height and direction of the antenna until you achieve the
best reception.
For best reception and sound quality:
Use an FM outdoor antenna. If you use an FM outdoor an
tenna, disconnect the indoor antenna.

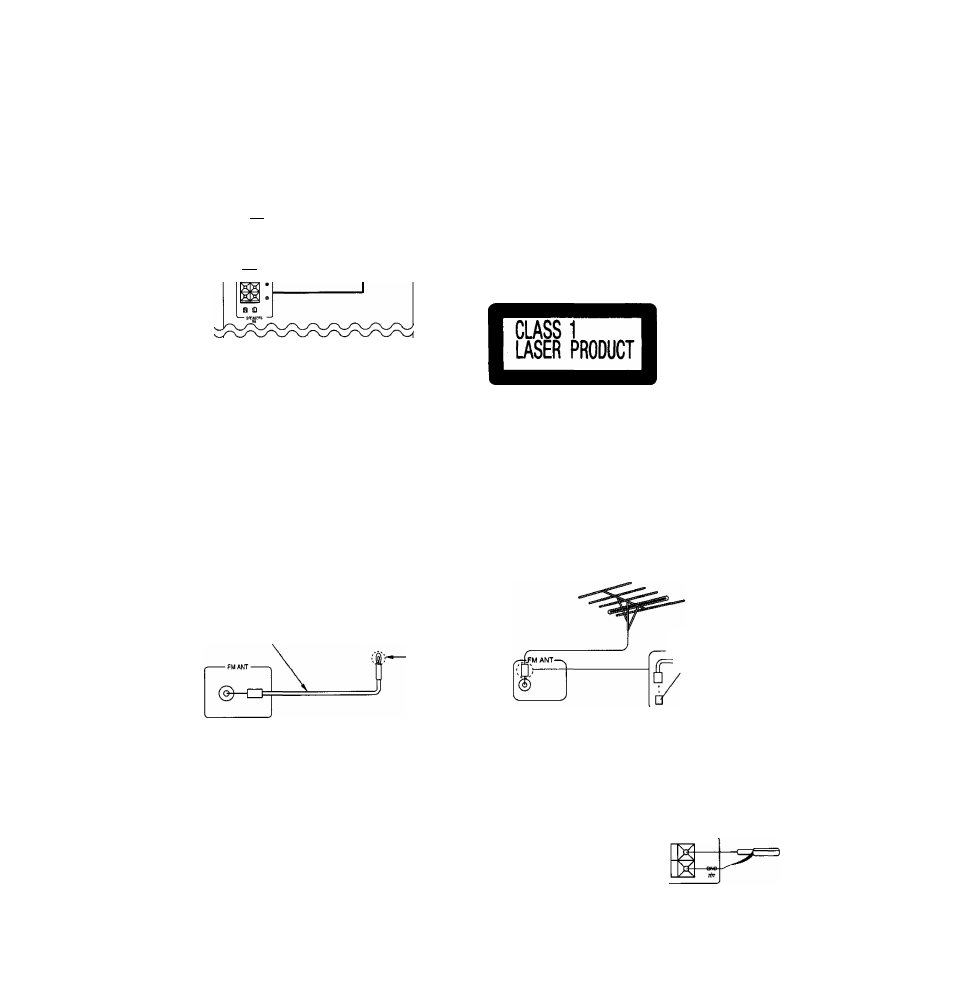

Connecting the FM indoor antenna
FM indoor antenna (included)
Tack or
tape to wall
■ FM outdoor antenna (not included)
If the FM indoor antenna does not provide satisfactory reception of
FM broadcasts, use an outdoor antenna.
You may need an outdoor antenna if you use this system in a
mountainous region or inside a reinforced-ooncrete building, etc.
An outdoor antenna should be installed by a competent technician
only.
FM outdoor antenna (not included)
75-Ohm
coaxial
cable (not included)
For Untted Kingdom—
Use the attachment
plug (included).
For areas except for United Kingdom
(i) Remove a piece of the outer
vinyl sheath from the end.
® Bundle the shield braid, and
remove a piece of the inner
vinyl sheath covering the
core wire.
Tilt the lever back and insert
the core wire and the shield
braid.
0 Close the lever and pull the
cable gently to be sure that it
is secured.
30 mm
15 mm
-FM ANT(750)
