Installation

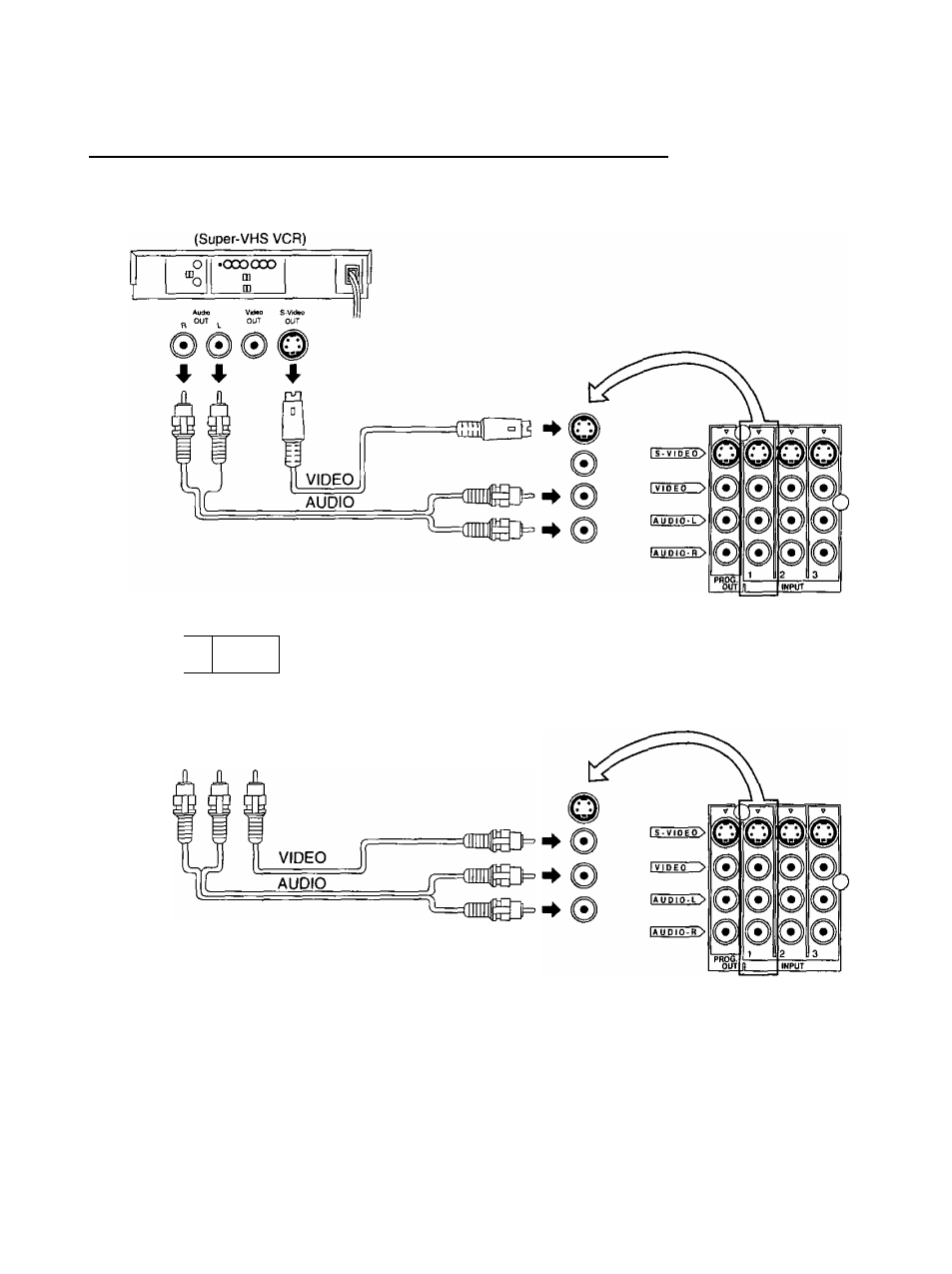

How to connect the “1, 2, 3, 4” input terminals

Connects VCRs and other peripheral equipment

(VHS VCR)

•oooooo

“o

m
m

Au^O

OUT

VidaO

OUT

• )) ((•)] ((^

4 A ♦

Notes:
(1) When a monaural VCR is used, connect the monaural audio cable to the AUDIO-L (Left) terminal.
(2) Similar connections are available at the INPUT

, 2, 3, 4 input terminals.

Input 4 is located on the front of the unit.
Select the desired VIDEO input position by pushing the TVA/IDEO button. (See page 27)

(3) When connecting video cables, priority is given to the S-Video cable when the S-Video input terminal and the video

input terminal are connected at the same time.
