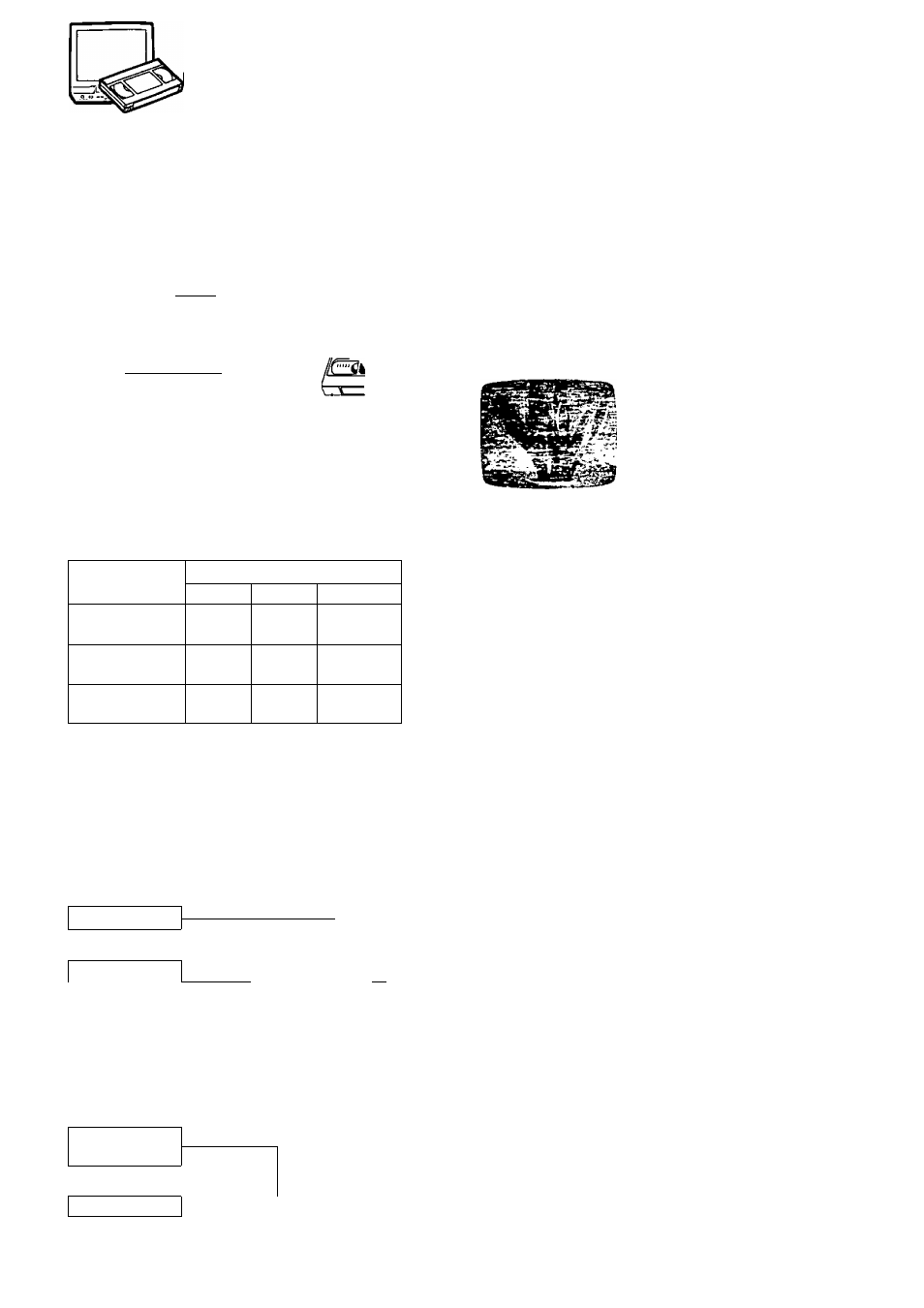

Unit and Cassette Information
Erase Protection (Record Tab)
Cassettes have a record tab to ensure that
recordings are not accidentally erased.
To prevent accidental
erasure, break off the tab
with a screwdriver.
I
^ 1
Ч
To record again, cover the
hole with cellophane tape.
Maximum Record/PlaybackTime
Only use tapes with the № mark in this unit.
Tape Speed
Setting
Type of Video Cassette
T60 T120 T160
SP
(Standard Play)
1 Hour 2 Hours
2 Hours
40 minutes
LP
(Long Play)
2 Hours 4 Hours
5 Hours
20 minutes
SLP
(Super Long Play) 3 Hours
6 Hours 8 Hours
Reset all Combination VCR Memory Functions j
Use when moving the Combination VCR to a new location, or if a
mistake was made in the One Time Setup section.
• Make sure a tape is not inserted in the Combination VCR.
1) Push POWER to turn the Combination VCR on.
2) Hoid down both the PLAY and REW buttons on the
Combination VCR for more than 5 seconds.
• The power will shut off.
3) Turn the power back on and perform the One Time Setup
section on page 8.
Cleaning Care for Video Heads
or
Clogged Video Head Picture
Blue Back
(During playback of
pre-recorded tape)
Blue Back Screen
Clogged Video Heads
While your Combination VCR will not normally require head
cleaning, however the heads may become clogged when playing
an old or damaged tape. If the image on your screen resembles
the illustration on the left or the screen becomes solid blue when
playing back a recorded signal on the tape, the heads probably
require cleaning.
Cleaning the Heads
It is recommended that head cleaning be performed by a qualified
service technician. Please contact your nearest Panasonic Service
Center. An alternate solution is to obtain a head cleaning cassette.
Be sure to follow the cleaning instructions carefully. Excessive use
of a cleaning cassette could shorten head life.
Use this cassette only when symptoms occur.
D.S.T. (Daylight Saving Time)
Spring (First Sunday in Aprii)
When the Combination VCR is set to DST:ON, it
automatically adds one hour and adjusts the clock.
NORMAL TIME
1:00 a.m. 2:00 a.m.
DAYLIGHT
-------- ►
SAVING TIME 3:00 a.m. 4:00 a.m.
Autumn (Last Sunday in October)
When the Combination VCR is set to DST:ON, it
automatically turns back one hour and adjusts the
clock.
DAYLIGHT 1:00 a.m. 2:00
SAVING TIME
NORMAL TIME
1:00 a.m. 2:00 a.m.
26
Product Specifications
Display
Picture Tube:
VCR
Video Recording System:
Audio Track:
Tuner:
Broadcast Channels:
CATV Channels:
27 inch measured diagonal 100“
deflection Picture Tube
4 rotary heads helical scanning system
1 track
2 channel (Hi-Fi Audio Sound)
VHF2-13, UHF 14-69
Midband A through I (14-22)
Superband J through W (23-36)
Hyperband AA-EEE (37-64)
Lowband A-5-A-1 (95-99)
Special CATV channel 5A (01)
Ultraband 65-94, 100-125
General
Power Source:
Power Consumption: 120V AC, 60 Hz
Approx. 157 watts (Power on)
Approx. 7 watts (Power off)
EIA Standard NTSC color
2 pieces
41“F~104“F (5“C-40“C)
10%~75%
85.9 lbs. (39 Kg)
27-1/16” (W) X 27-15/16” (H) X 21 -5/16” (D)
688 (W) X 659 (H) X 542 (D) mm
Note: Designs and specifications are subject to change without notice.
Television System:
Speaker:
Operating Temperature
Operating Humidity:
Weight:
Dimensions:
