On Screen Displays (OSD)
Channel & Function Display

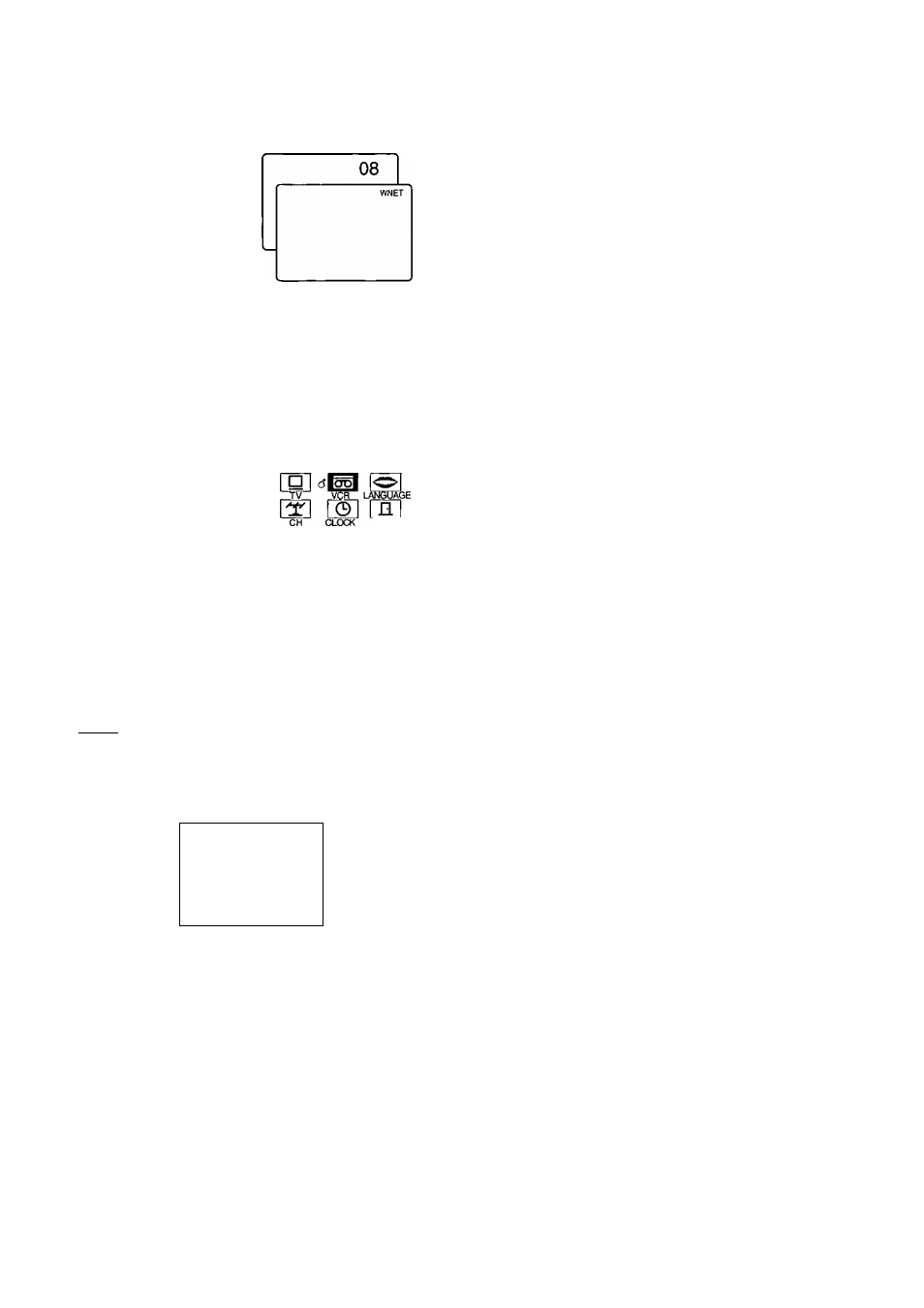

Whenever the channel is
changed, the channel
number will appear for a
few seconds on-screen.
(Some station names may
also appear.)
When a function button is
pushed (PLAY, FF, etc.), the
Combination VCR mode will
be displayed.
• When a recording is started, both REC and
the channel number will appear together.
Menu Screen
Push MENU to display
the MAIN MENU.
Push
A
V
and
MENU to make your
selection (see page 8).
MAIN MENU
EXIT
SELECT
► KEY
SET :MENU KEY
To get the most from
each feature, please read the
Operation Manual before
attempting any operation.
Warning and Instruction Displays
These displays will alert you of a missed operation or provide
further instructions.
If no active channels are found
for CHANNEL MEMORY...
(see page 5.)
NO CH FOUND
PLEASE CHECK ANTENNA
CABLE CONNECTION THEN
PUSH CH UP KEY AGAIN
If you attempt to set or review
a Timer Playback, Timer
Recording or set the On Timer
and the Clock is not set...
(see pages 8~10.)
PLEASE SET CLOCK
BEFORE PROGRAMMING
If you push REC on the
remote control or the
Combination VCR, and a
cassette is inserted with no
record tab...
(see page 26.)
CHECK CASSETTE
RECORD TAB
VCR Status & Clock Display
Push DISPLAY
to display and remove
DISPLAY the overlay shown below.
Function Status
Current Time
Rec Time
Remaining
(OTR mode only
see page 18.)
Receivable
Broadcast Types
(See page 24.)
REC 12100AM
WNET-
-0:25 0
00:00
(■STEREO ^
1
(■SAP
MONO
L
Channel &
Call Letter
Tape Speed
Tape Counter
Blank Tape/ No Video Signal Indication
When a blank section of tape comes up in Play
mode, or the selected channel has no broadcast
signal, the TV screen will turn solid blue.
If you push STOP during a
Timer Playback or Timer
Recording...
(see pages 21,23.)
TO CANCEL TIMER REC
HOLD DOWN STOP KEY
FOR APPROX 3 SEC
if you push PLAY, FF, REW, or
REC on the remote control or
the Combination VCR without a
cassette inserted...
(see pages 16-18.)
If Combination VCR is not in
Stop mode or a cassette with
record tab is not inserted two
minutes before a Timer
Playback or Timer Recording is
about to begin...
(see pages 20-23.)
TO CANCEL TIMER PUY
HOLD DOWN STOP KEY
FOR APPROX 3 SEC
NO CASSETTE
PLEASE INSERT A CASSETTE
PLEASE
PREPARE
FOR TIMER REC
PLEASE
PREPARE
FOR TIMER PLAY
11
