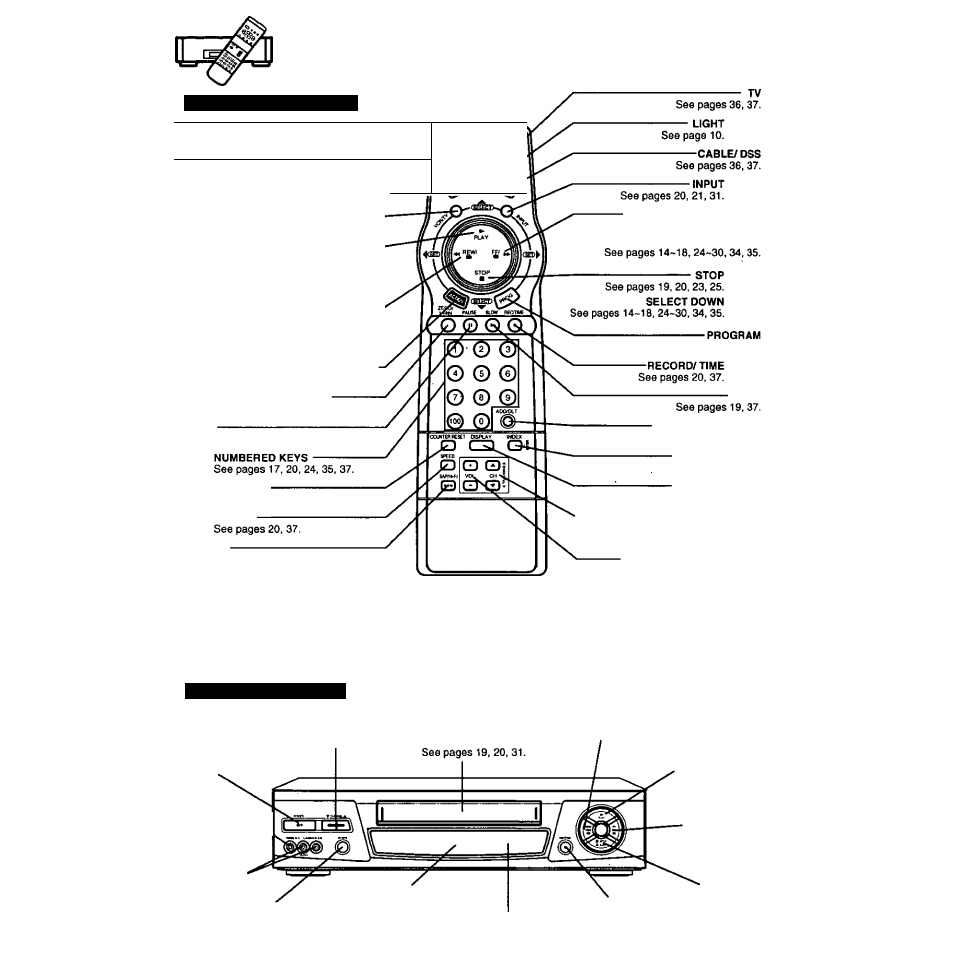

Location of Controls
Remote Control Buttons
EJECT-------------------------------------------------------- ^
See pages 19,37.
r-
POWER----------------------------------------------- eject
See pages 14, 22, 23, 35, 36, 37.
VCR----------------------------------------------------------------------
FAST FORWARD/SEARCH
See pages 19, 24, 25, 37.
SET
See pages 36, 37.
VCR/ TV
See pages 14, 21,37.
PLAY-
See pages 19, 25, 37.
SELECT UP
See pages 14-10, 24-30, 34, 35.
REWIND/ SEARCH
See pages 19, 25, 37.
SET/ BACKSPACE
See pages 16,17, 22, 23, 28, 34, 35.
ACTION
See pages 15-18, 26, 27, 28, 29, 30, 34.
ZERO SEARCH/ 1 MINUTE SKIP
See pages 26, 37.
PAUSE
See pages 19, 20, 31.
COUNTER RESET
See pages 26, 37,
SPEED
See pages 22, 23, 35.
SLOW
ADD/ DELETE
See pages 19, 23, 28, 29, 34, 35.
INDEX/ ENTER
See pages 24, 37.
DISPLAY
SAP/ Hi-Fi
See pages 33, 37.
' See pages 18, 20, 25, 26, 32, 37,
CHANNEL UP/DOWN
(TRACKING UP/DOWN)
See pages 14-17,19-21, 37.
VOLUME UP/DOWN
See page 37.
Light Tower Universal Remote Control
Light button; When the LIGHT button Is pressed, the buttons which can be activated in the selected mode will light and the
selected mode button (TV/VCR or CABLE DSS) will flash for 5 seconds. If no buttons are pressed within 5
seconds, the light wilt turn off in order to converse battery power. Also, while holding down the buttons the
selected mode button will flash so you will be able to see, in the dark, which mode has been selected.
EJECT button: When EJECT is pressed, the tape is ejected from Cassette Compartment.
If EJECT is pressed during recording, the VCR will not respond to the command.
Front View of the VCR
POWER
See pages
14, 22,23, 35,37.
VIDEO Input
Connecter N..
31. \
CHANNEL UP/DOWN
TRACKING/V-LOCK
See pages 14-17,19-21,37,
See page
AUDIO Input
Connecter (L/R)
See page 31.
Cassette Compartment
REWIND/SEARCH
See pages 16, 23, 24, 25.
10
VCR/TV Selector
See pages 14, 21, 31,37.
Multi Function Display
See pages 11,19-23,35.
REMOTE
SENSOR
RECORD/TIME
See pages
20. 23, 27,31.
PLAY
See pages
19, 23, 25,31,37.
FAST FORWARD/
SEARCH
See pages
19,23, 24,25,37.
STOP/EJECT
See pages
19. 20,23,25,31.37.
