Anti-Theft Installing Instructions
Important
PIC IS NOT RESPONSIBLE FOR ANY DAMAGE CAUSED BY
IMPROPERLY INSTALLING THIS OVEN.
READ AND FOLLOW THESE INSTRUCTIONS CAREFULLY.
V ib ”

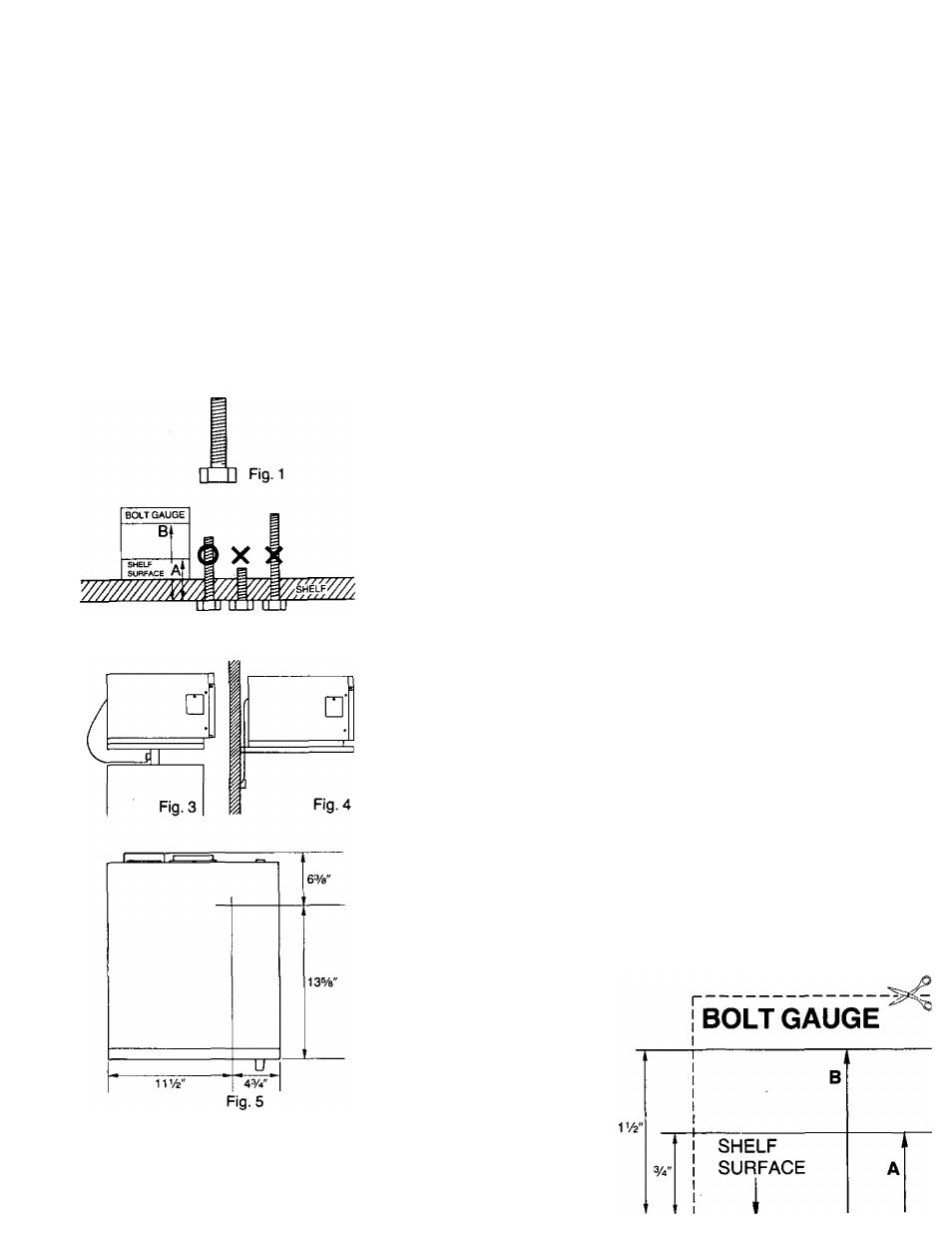

Fig. 2
Tools and parts
The following Tools are needed to install the oven.
•One
^Ae" Bolt {purchased by the user. See “How to Select the Bolt
Length—Below.”)
•Drill and Drill Bit
•Nail or Center Punch
•Hammer
•Scissors
How to Select The Bolt Length
1. Remove the “Bolt Gauge” from this manual and place it upright
near the front edge of the shelf upon which the oven will rest.
2. Measure the distance from the bottom of the shelf to lines A and B on
the “Bolt Gauge”
a) From the bottom of the shelf to line A is the minimum length of the
bolt.
b) From the bottom of the shelf to line B is the maximum length of the
bolt.
If the Bolt is shorter than “A” or longer than “B” you cannot use Anti-
Theft Device.
3. Purchase one ¥^e" bolt whose length falls between the minimum and
maximum bolt length as determined in Step 2 above. (Fig. 1 & 2)
How to Install The Oven
1. Be certain that:
a) The entire oven’s bottom skirt is supported by the shelf (oven may
hang over an open shelf or front shelf). (Fig. 3 & 4)
b) The power cord on the oven can reach the electrical outlet.
c) The electrical outlet is not blocked by the oven. Power cord must be
able to be unplugged without moving the oven.
2. Use a center punch or nail to make an indentation in the shelf at the
spot designated as the center for the drill hole as shown in Fig. 5.
3. Drill one hole at spot indicated in Fig. 5 keeping the drill
perpendicular to the shelf.
4. Clean the drill holes.
5. place the oven on the shelf. Align hole in the base of the oven with the
drilled hole and bolt the oven to the shelf from the underside of the
shelf.
