Instruction Manual MM850481 ed.01
1 GENERAL DESCRIPTION
EGA4 is designed to satisfy the market needs; but they are the result of the advanced research and experience of

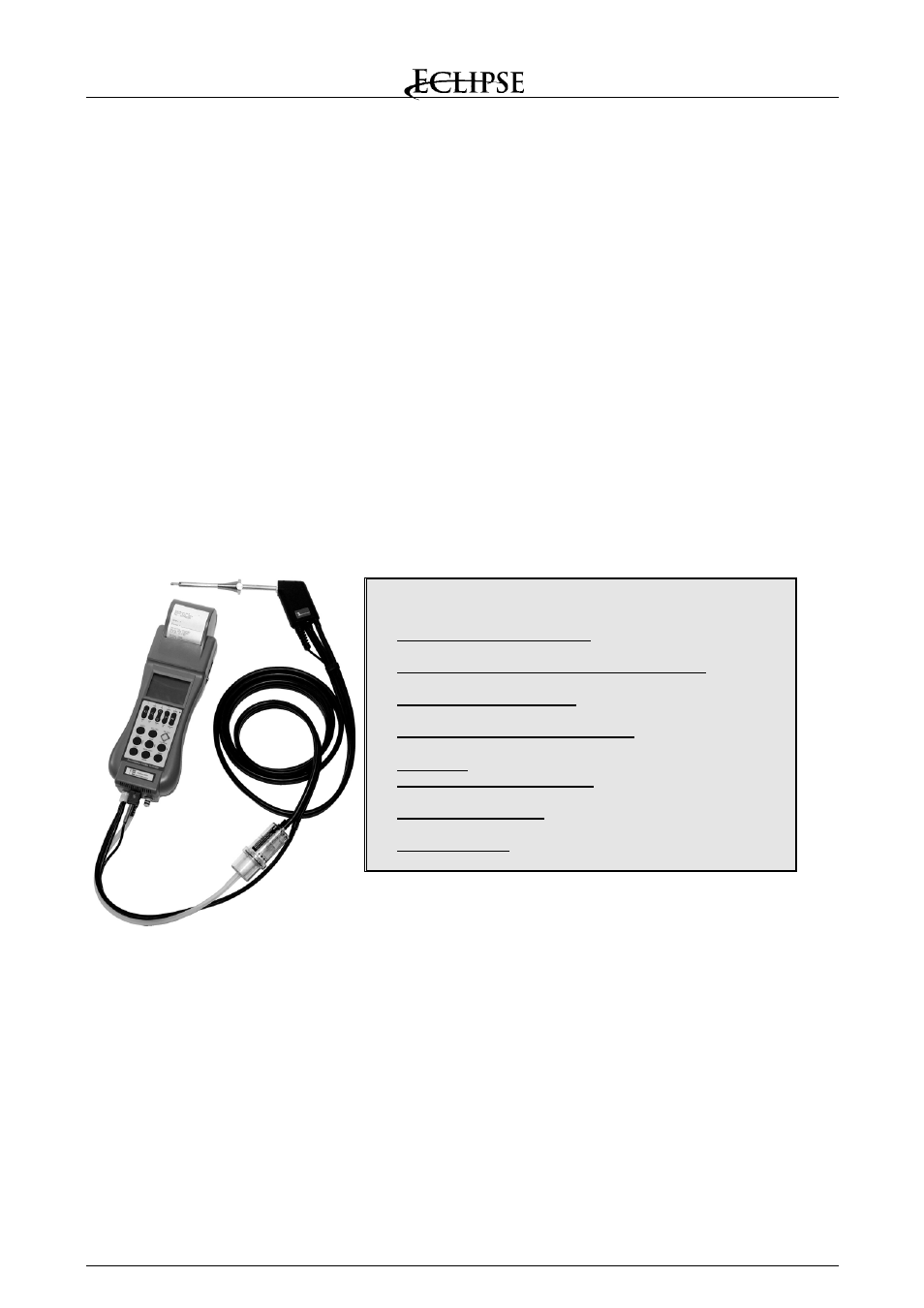

Eclipse. EGA4 is a multigas compact palm-top multifunction instrument. The micro-processor based instrument includes
a flue gas analyzer, an emissions monitor and an ambient parameters indicator. Two internal electrochemical sensors
read the Oxygen (O
2
) and carbonic monoxide (CO) gas concentration. The gas temperature and air temperature are
used in connection with the gas analysis to calculate the efficiency, excess air, and CO
2
concentration. A 10 gas
parameters programmable table is used for calculations approved in accordance with DIN33962.
A third cell (NO or SO
2
) enables the pollution measurement. The NO concentration can be expressed in terms of NOx as
required by ambient laws.
External sensors are available for ambient parameters measurement: ambient relative humidity and temperature
(T+RH%), ambient CO, to check and evaluate gas network leakage and natural gas leakage detector.
EGA4 can install a forth electrochemical sensor to monitor pollution. In this way you can measure simultaneously and
using a single unit, NO/NOx and SO
2
gas concentration.
The instruments are completed with a pressure (draught) sensor, an internal printer, an internal memory for storing data
and a RS232 serial interface for configuration and data transfer from and to a PC.
♦ Draft measurement is possible using the internal pressure sensor and the special gas sample probe.
♦ The optional internal printer is impact type and the generated document is very legible and has a long time duration.
♦ The internal standard memory may store up to 250 complete gas analysis divided by Tag.
♦ The instruments have a standard IR serial interface and an optional RS232 conversion module and a configuration
PC software are available to configure the analyzer.
Features & Benefits
New user friendly interface: very intuitive and in English
language to use the instrument without instruction manual.
Large dimensions and lighting LCD display: very legible
using the “Zoom” function and the automatic back-light device.
Easy and quick upgrading hardware and software are made
using modular design to upgrade the system yourself.
Differential pressure measurement: gas velocity, pressure,
draft,
∆P, etc.
Averaging between three gas analysis.
Internal impact type printer: more legible and long time
duration for you documents.
Single battery pack: rechargeable to power both the
instrument and the printer.
Internal memory: up to 250 complete data analysis.
5
