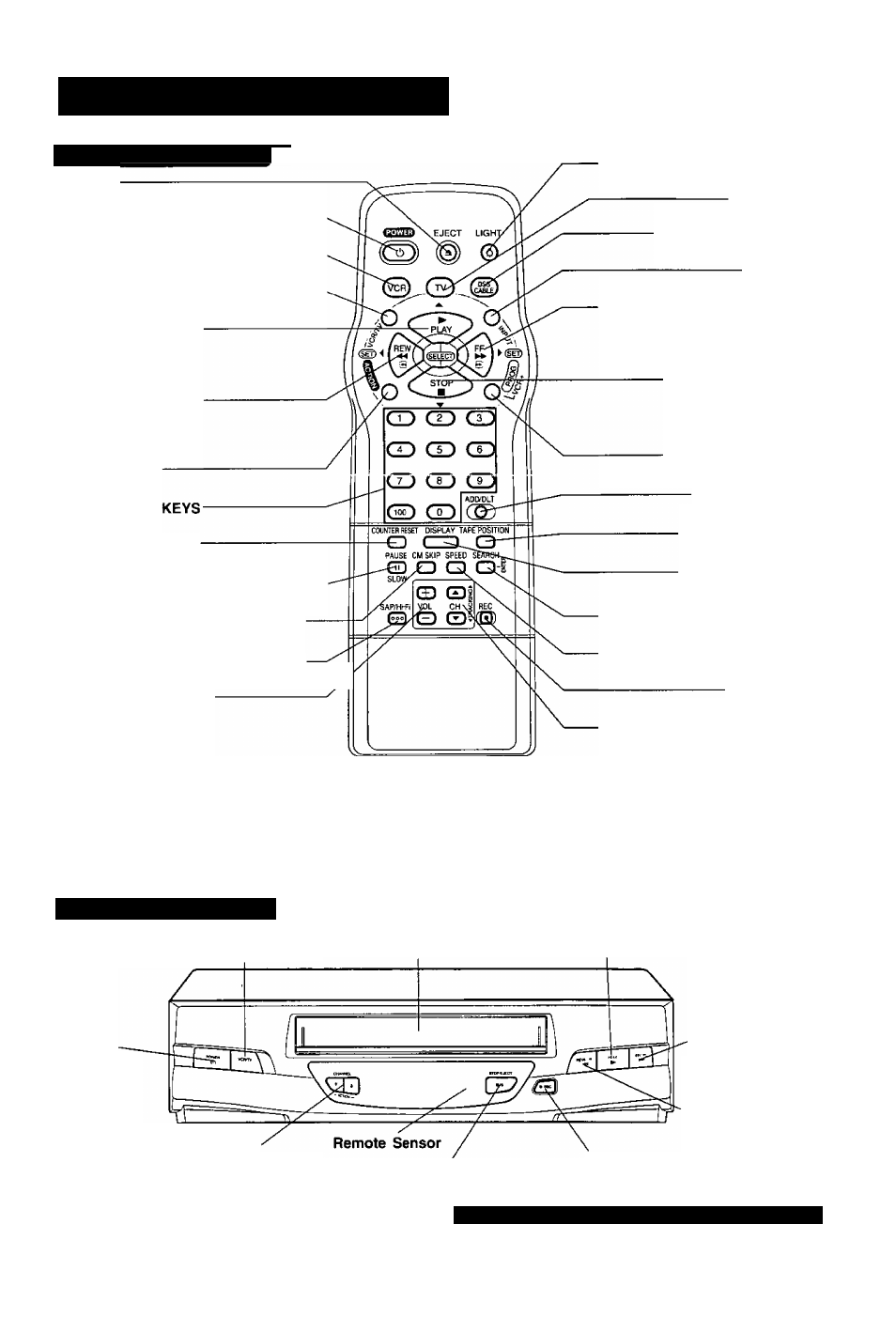

Location of Controls
Remote control Buttons
EJECT
See page
8
.
POWER —
See page
6
.
VCR mode
See page 18.
Model PV-V4520 remote is shown here.
VCR/TV-
See page 9.
PLAY
See page
8
.
SELECT UP
See page 7.
REWIND/ SEARCH
See page
8
.
SET
See page 7.
ACTION
See page 28.
NUMBERED
See page 9.
COUNTER RESET-
See page 23.
PAUSE/SLOW
See page
8
.
CM SKIP
See Page 23.
SAP/ Hi-Fi (Model PV-V4520 Only)
See page 25.
VOLUME UP/ DOWN
See page 18.
LIGHT
See page 38.
TV mode
See page 18.
DSS/ CABLE mode
See page 18.
INPUT
See page 11.
FAST FORWARD/ SEARCH
See page
8
.
SET
See page 7.
STOP
See page 8.
SELECT DOWN
See page 7.
PROGRAM/VCR+
See panes i;>, 13, 17,
ADD/ DELETE
See page 29.
TAPE POSITION
See page 26.
DISPLAY
See page 32.
SEARCH/ ENTER
See pages 20-23.
SPEED
See page 9.
RECORD
See page 9.
CHANNEL UP/ DOWN
See page 9.
TRACKING/ V-LOCK
Light Tower Universal Remote Control
'
Light button:
When the LIGHT button is pressed, the buttons which can be activated in the seiected mode wiil light and the
selected mode button (TV, VCR or CABLE OSS) wilt flash for 5 seconds. If no buttons are pressed within 5
seconds, the light wiii turn off in order to conserve battery power. Also while holding down the buttons,
the selected mode button will flash so you will be able to see, in the dark, which mode has been selected.
EJECT button: When EJECT is pressed, the tape is ejected from the Cassette Compartment.
If EJECT is pressed during recording, the VCR will not respond to the command.
Front View of the VCR
VCR/TV selector
See page 9.
Cassette Compartment
See page
8
.
PLAY
See page
8
.
POWER
See page
6
.
FAST FORWARD/
SEARCH
See page
8
.
REWIND/ SEARCH
See page
8
.
CHANNEL UP/ DOWN
TRACKING/ V-LOCK
See page 31
ACTION/ PROG
See page 7.
STOP/ EJECT
See page
8
.
RECORD
See page 9.
