VCR Plus+ Set Up
This setup is for VCR Plus+ and
timer programming only.
In order for your VCR to do a VCR Plus+ recording (see top of page 25 for explanation of VCR Plus+), or a timer recording of
cable stations, some setup is required. At first, find the antenna or cable connection that matches yours. Then, follow the
instructions below your connection.

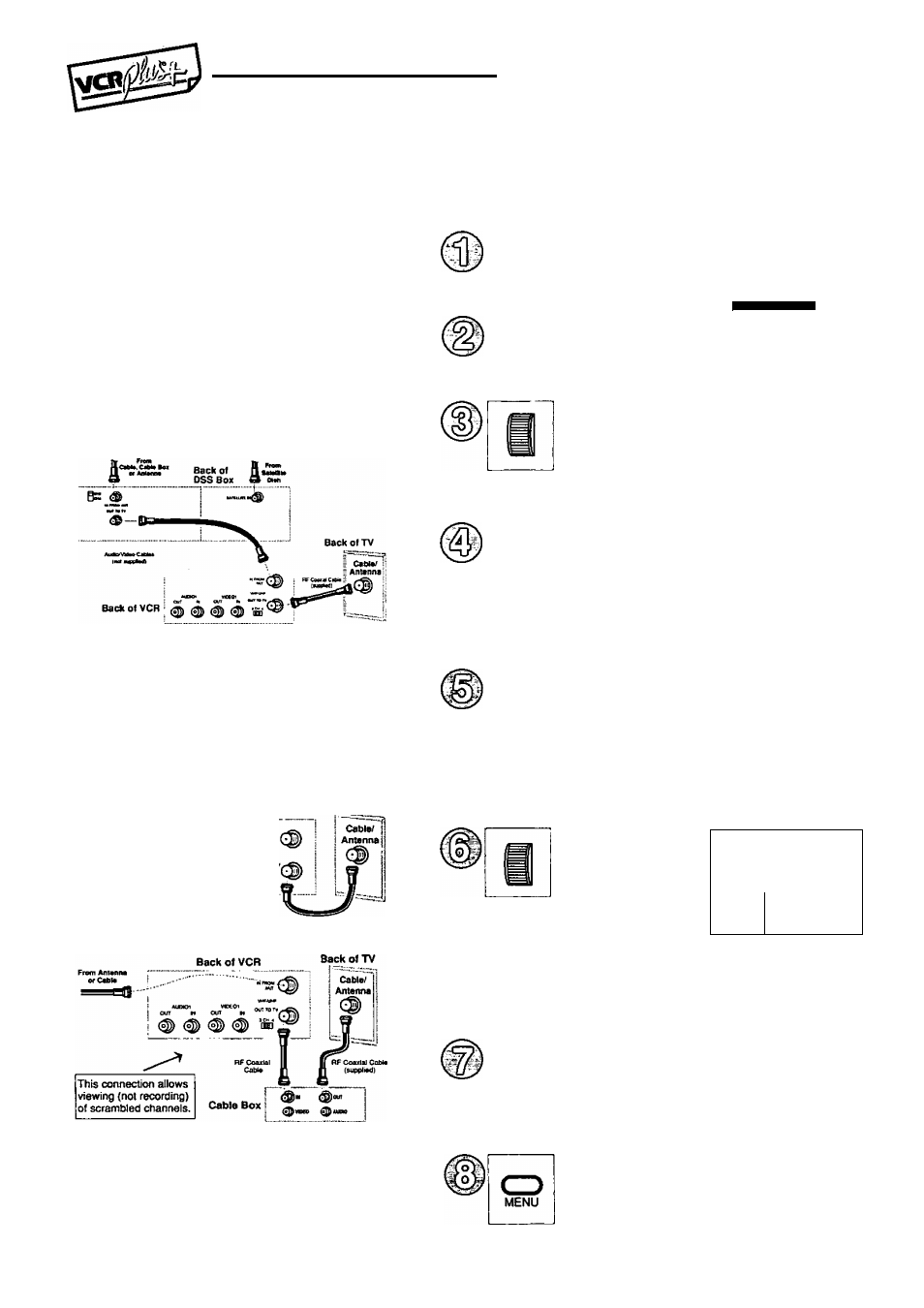

Choose your Connection Type
(Then, follow the instructions under the diagram.)
i Connection Type A
D
Back o1 VCR
Cable Box
H CUT
r=
Back of TV
Cable/
Antenna
RF CoQidal CeW»
If your system looks like this diagram, do
the following.
1. Complete the “Cable Box Set Up”
section at right.
2. Skip page 25 and go directly to page 26
for VCR Plus+ Programming.
Connection Type В
Back of VCR
Back of TV
огсаы* I ■;■?«>«
i
«J0O1 оиттт
ОШ H out ^ « ' p w r
i ^ ^ ^ ira
RF СоадЫ Cable (Bjpplwd)
Cable Box Set Up
For connection A (see left) only
MENU
Push MENU to
display the
menu.
Rotate and push
the WHEEL to
select SET UP
CHANNEL.
......................... MENU .............................
SET UP VCR
SET CLOCK
SET UP CHANNEL
ID ЮМА/ LANGUE ; ENGL I SH
SELECT
SET
END ROTATE WHEEL
PUSH WHEEL
PUSH MENU KEY
Rotate and push
the WHEEL to
select CABLE/
DSS BOX SET UP.
--- SET UP CHANNEL ---
ANTENNA SYSTEM : CATV
VCR PIUS+ CH SET UP
SELECT
SET
END
ROTATE WHEEL
PUSH WHEEL
PUSH MENU KEY
Select YES if you are
using a cable box and
continue with step 5.
Select NO if you are not
using a cable box. Then,
ush MENU twice and
urn to page 25.
- CABLE/DSS BOX SET UP
ARE YOU USING A CABLE
BOX OR DSS RECEIVER?
ЕШ
NO
SELECT
SET
END
ROTATE WHEEL
PUSH WHEEL
PUSH MENU KEY
Rotate and push
the WHEEL to
select your cable
box set up.
• If you selected CABLE/
DSS BOX-* V C R T V ,
continue with step 6,
If not, push MENU twice
and turn to page 25.
- CABLE/DSS BOX SET UP -
SELECT YOUR CABLE BOX OR
DSS RECEIVER SET UP.
VCR-CABLE/DSS BOX-TV
SELECT SET
END
ROTATE WHEEL
PUSH WHEEL
PUSH MENU KEY
Rotate and push
the WHEEL to
change the output
channel number.
• Number shown is
example only.
You are sure to enter
your cable box output
channel number.
If necessary, refer to your cable box manual.
If you are using Audio/Videojack connection for your cable
box, select and set "VIDEO OUT as the output channel.
- CABLE/DSS SOX SET UP -
ENTER CABLE SOX OR DSS
RECEIVER OUTPUT CHANNEL.
CD
SELECT : ROTATE WHEEL
SET ; PUSH WHEEL
END : PUSH MENU KEY
MENU
If your system looks like one of these, do
the following.
1. Skip the “Cable Box Set Up" section at
right and turn to page 25.
2. Complete the “VCR Plus+ Channel Set
Up” section on page 25.
3. Turn to page 26 for VCR Plus+ Programming.
24
' Push MENU to
confirm your
entry.
• This display appears for
five seconds. (Channel
shown is example only)
YOUR VCR JS RECEIVING
THE OUTPUT OF CABLE BOX
OR DSS RECEIVER CH 01
Push MENU twice to return
to the normal screen.
Then, go directly to VCR Plus+ Programming on page 26.
