D e v i c e T o p o l o g y V i e w
S p e c t r u m E n t e r p r i s e M a n a g e r Page 37 S m a r t S w i t c h 6 0 0 0
Device Topology View
This section provides brief descriptions of the Device Topology views available for models of SmartSwitch 6000
devices in SPECTRUM.
Access: From the Icon Subviews menu for the
SmartSwitch 600 Device icon, select DevTop
Device Topology views ( Figure 12 ) show the
connections between a modeled device and other
network entities. The lower panel of the Device
Topology view for the SmartSwitch 6000, uses
interface icons to represent the device’s
serial/network I/O ports. These icons provide the
same information and menu options as those in
the
Interface Device View (page 30) . If there is a
device connected to a particular interface, a
device icon appears on the vertical bar above the
interface icon along with an icon representing the
network group that contains the device.
For further information on Device Topology views,
refer to the SPECTRUM Views documentation.

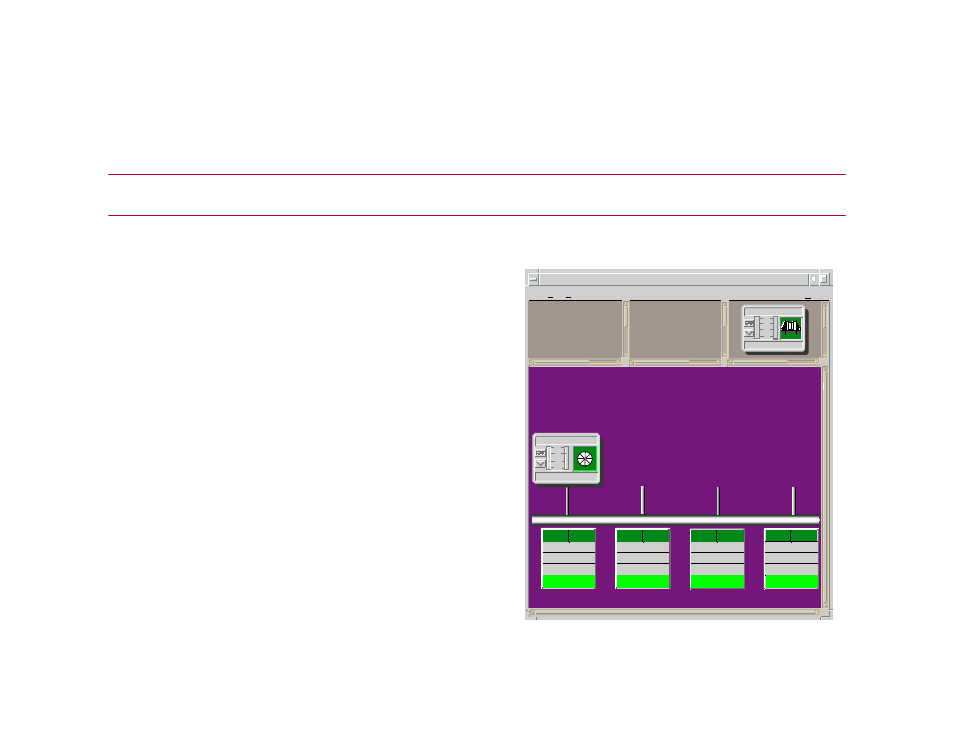

Figure 12: Device Topology View
* File View Help
IP Address of type 6H203_24 of Landscape x: Primary
Model Type
Model Type
1 FWD
ETHERNET
0.0.2.1.0.5.1.A:BC
0
2 FWD
ETHERNET
0.0.2.1.0.5.1.A:BC
0
3 FWD
ETHERNET
0.0.2.1.0.5.1.A:BC
0
4 FWD
ETHERNET
0.0.2.1.0.5.1.A:BC
0
Model Type
Model Type
10
1
.1
.01
10
1
.1
.01
