Device Views
This section describes the Device views and subviews available for models of SmartSwitch 6000 devices in
SPECTRUM.
Device views use icons and labels to represent the
modeled device and its components, such as
modules, ports, and applications. There are four
types of Device views for the SmartSwitch 6000
models.
• Chassis Device View (page 21)
• Interface Device View (page 30)
• Backplane Device View (page 32)
• Physical Device View (page 36)
Chassis Device View
This view contains icons that represent the
various physical modules installed within the
chassis of the modeled devices. It also contains a
Chassis Information panel that shows chassis
power information.
Figure 4 is an example of the
view with a device installed in Slot 4 of the
chassis. The Chassis Module icon is described
under
Chassis Module Icon (page 22) . The
Chassis Information panel is described under
Chassis Information (page 29) .

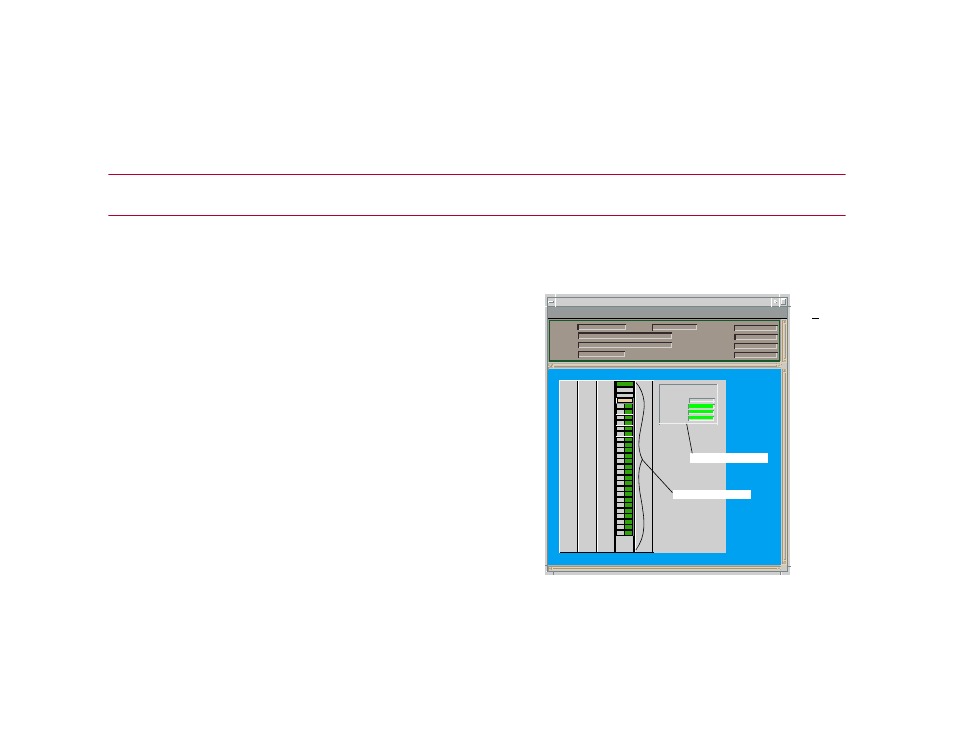

Figure 4: Chassis Device View
* File View Help
6C105 of type 6C105 of Landscape x: Primary
Model Name
Contact
Description
Location
Net Addr Sys Up Time
Manufacturer
Device Type
Serial Number
Chassis Information
Power
Redundancy:
PS #1 Status:
PS #2 Status:
Chassis Fans:
Chassis Module Icon
6E132-25
Model Name
Redundant
Normal
Normal
Normal
e1
4
FWD
e2 FWD
e3 FWD
e4 FWD
e5 FWD
e6 FWD
e7 FWD
e8 FWD
e9 FWD
e10 FWD
e11 FWD
e12 FWD
e13 FWD
e14 FWD
e15 FWD
e16 FWD
e17 FWD
e18 FWD
e19 FWD
e20 FWD
e21 FWD
e22 FWD
e23 FWD
e24 FWD
Bridging
Chassis Information
