D e v i c e V i e w s C h a s s i s D e v i c e V i e w
S p e c t r u m E n t e r p r i s e M a n a g e r Page 22 S m a r t S w i t c h 6 0 0 0
Chassis Module Icon
This icon is a logical representation of the
physical module, its location in the chassis, its
front panel interfaces and ports.
Figure 5 shows an example of a Chassis Module
icon. The callouts displayed in the illustration
identify the labels and, when applicable, the view
to which they provide double-click access.
The following pages describe the information
available from the Chassis Module icon:
• Module Identification Labels (page 23)
• Application Label (page 24)
• Interface Labels (page 25)
• Module Icon Subviews (page 23)
• Repeater Labels (page 26)
• Repeater Port Labels (page 28)

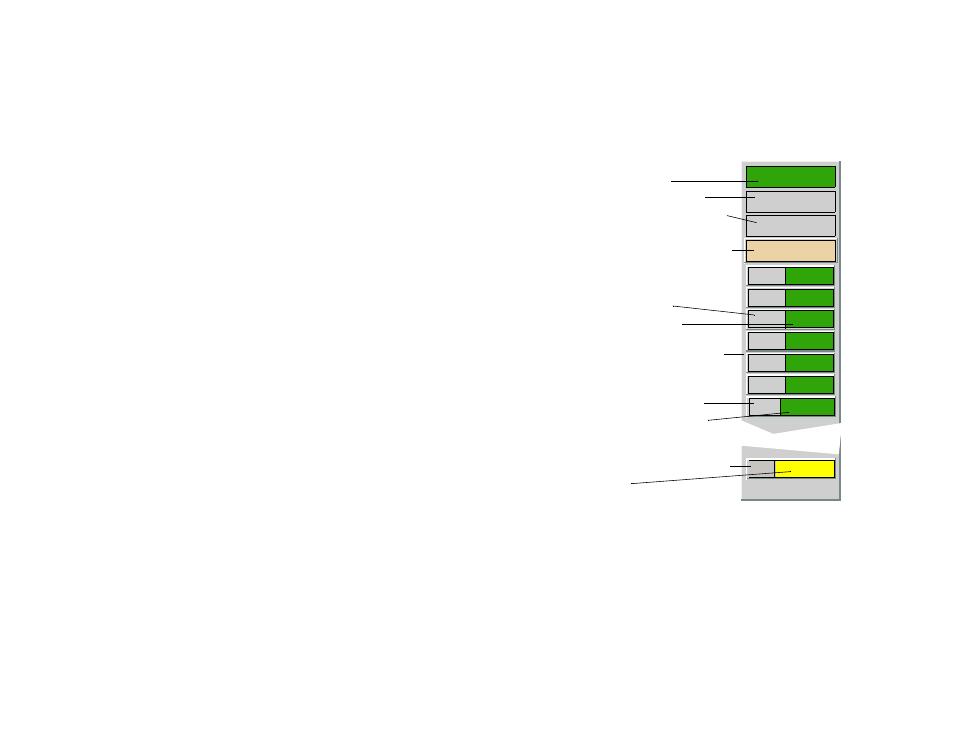

Figure 5: Chassis Module Icon
4
6E132-25
Model Name
e1 FWD
e2 FWD
e3 FWD
e4 FWD
e5 FWD
e6 FWD
Bridging
Model Type/Model Information View
Model Name/Device Configuration View
Slot Number/Application View
Module Identification Labels
Application Label/Performance View
Interface Type Label
Interface Status Label
(Accesses Bridging Icon Subviews)
Interface Labels
E2 UNLOCK
NLK 12
Repeater Labels
Repeater Port Labels
Repeater Index/Configuration View
Repeater Status/Performance View
Repeater Port Number/Port Notes View
Repeater Port Status
Chassis Module Icon Subviews
