An optional, isolated analog output provides dip-switch selectable output: 1-
5mA, 4-20mA, 10-50mA, 0-5VDC, 0-10VDC. The analog output can be used
with programmable controllers, chart recorders, etc. It uses a nine-pin female
connector as shown in Figure 10.
Signal Name Pin Number
Current return
#1
Voltage out
#4
Voltage return
#5
Current out
#6
Chassis ground
#9

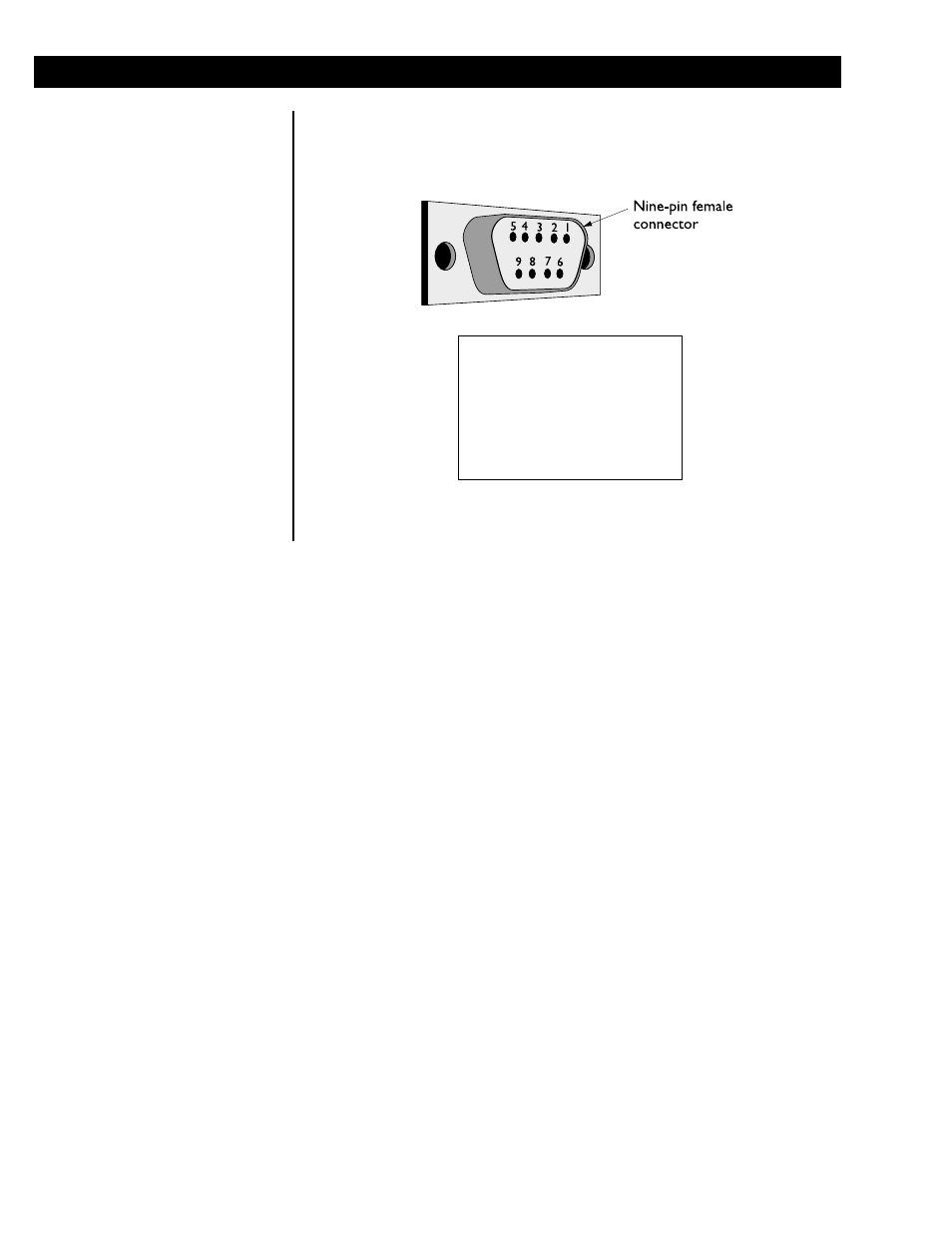

Figure 10
Analog Output Pin Assignments
Analog Output Option
