3.3.7 Status
Although the status of a device is implied at many levels through the use of color, alarms,
graphical displays, etc., device specific status applications will display mib fields that show
all relevant information about a device. Additional information such as version information
will also be displayed so that the user does not have to bounce around between status and
configurations applications in order to gather the information that is generally required in
order to diagnose a problem. The information displayed will closely match that which is
displayed via the telnet interface.
Polling the status related snmp mib variables for a device is the method used to update the
contents of the status applications. Options are provided to allow the user to control the
polling intervals. The default will be 10 seconds, and the range will be from 5 to 120
seconds. Status examples follow:

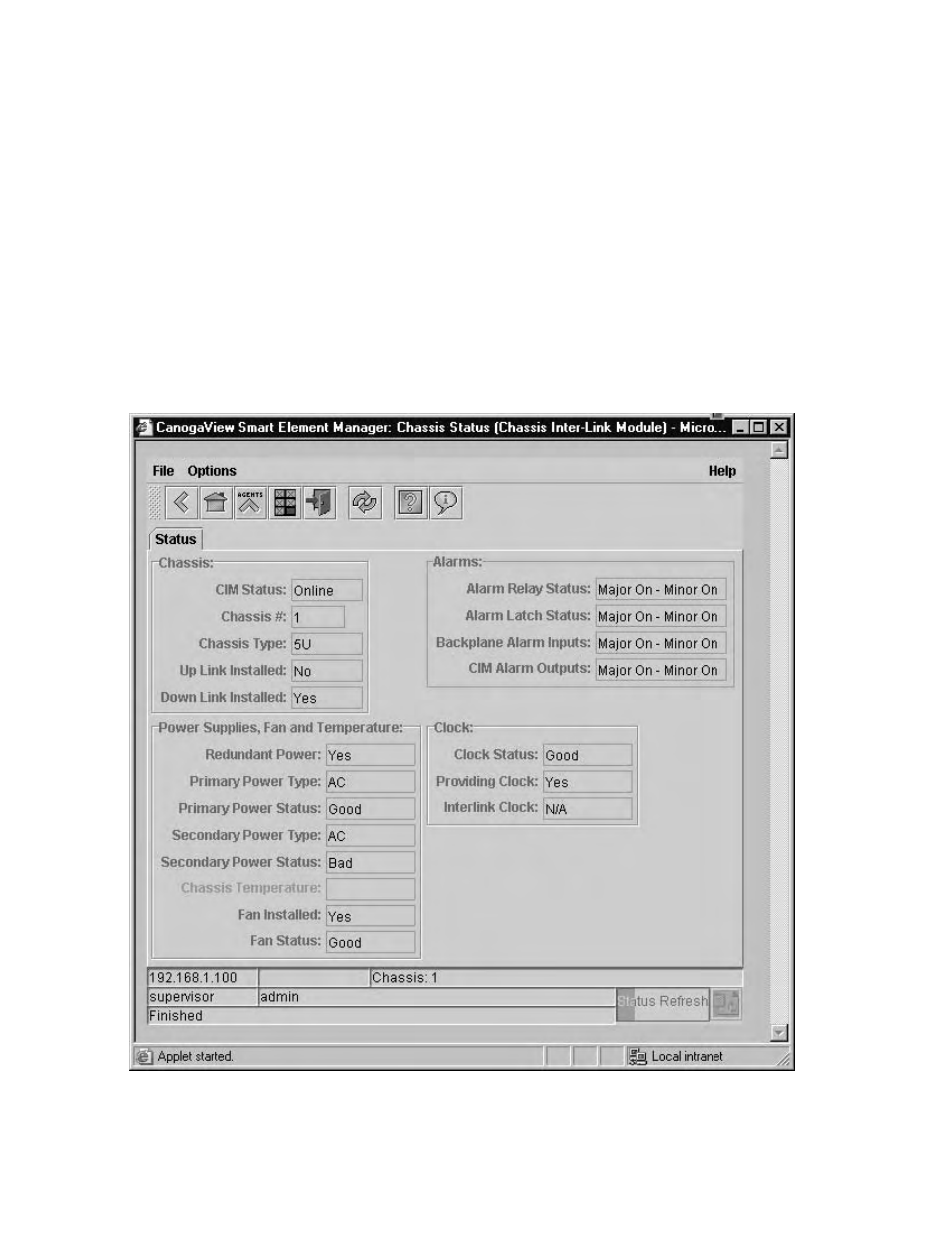

Figure 3-36. Chassis Status
