2.3 Setup of the 8829
The 8829 UTP-to-Fiber Media Converter requires
its own power source. The 8829 Media Converter
is supplied with a wall-mount transformer that re-
quires 90-130VAC at 50-60Hz and provides 24VDC
to the unit. The AC adapter connects to the main
converter via a power connector. An optional 220V
transformer is available.
The 8829 Media Converter features an 8-pin
modular connector on the LAN side of the net-
work (see Figure 2-2).
Caution: To protect the Ethernet port from an
intrabuilding lightening surge, use a
properly grounded shielded cable.

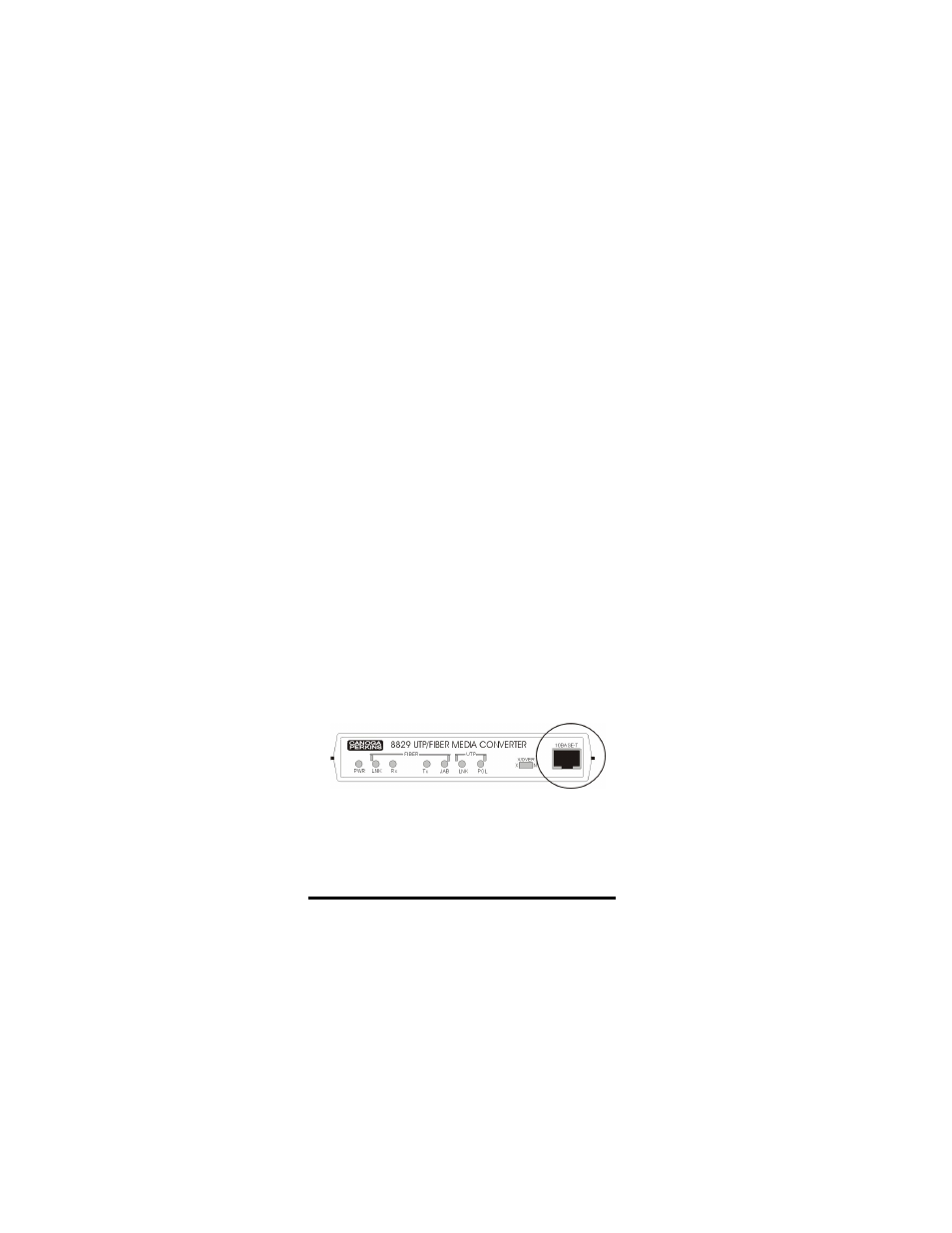

Figure 2-2. UTP Connector for 8829
