KAP 140 AUTOPILOT SYSTEM
KCS 55A Compass System
113
Rev. 0
Jun/98
KCS 55A Compass
System
The KCS 55A Compass
System, which includes the KA 51B
Slaving Control and Compensator
Unit, the KMT 112 Magnetic Slaving
Transmitter and the KG 102
Directional Gyro as well as the KI
525A Pictorial Navigation Indicator is
an optional part of the KAP 140
Autopilot System.
The panel-mounted KI 525A
HSI combines the display functions
of both the standard Directional Gyro
and the Course Deviation Indicator’s
VOR/LOC/Glideslope information to
provide the pilot with a single pre-
sentation of the complete horizontal
navigation situation. This greatly
simplifies course orientation, inter-
ception and tracking, while eliminat-
ing the need for scan coordination
between two separate indicators.
N
GS GS
33
30
W
24
21
S
15
12
E
6
3
ı
NAV HDG
MAN
CW
AUTO
CCW
- +
ı

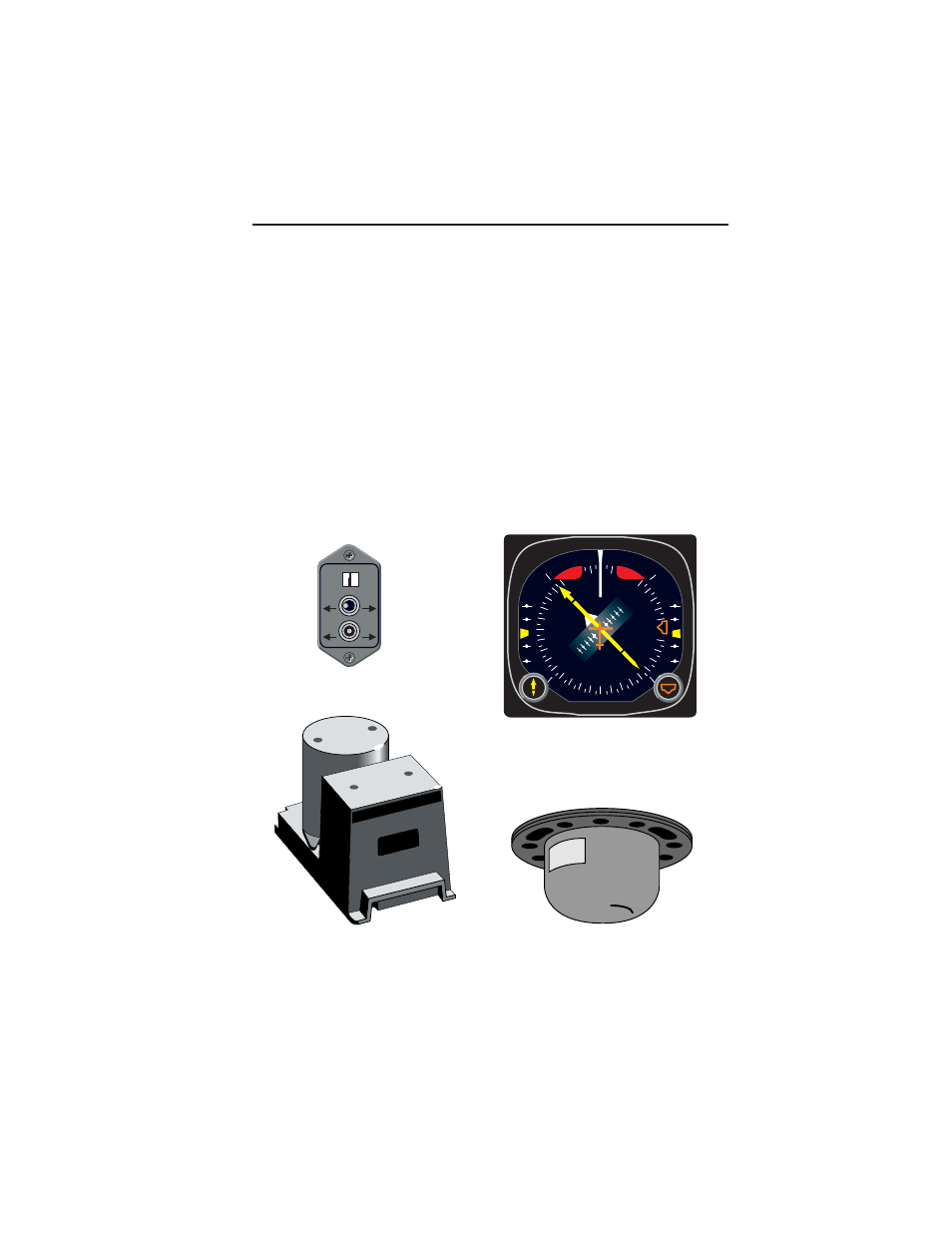

KCS 305
KA 51B
KMT 112
KI 525A
KG 102A
KCS 55A Compass System
