Single Axis Operation
20 KAP 140 AUTOPILOT SYSTEM
Rev. 1
Apr/02
L R
2 MIN.
TURN COORDINATOR
NO PITCH
INFORMATION
D.C. ELEC.
AP
G
KAP 140
HDG NAV APR REV
N
33
30
W
24
21
S
15
12
E
6
3
P
U S H
PUSH
TO
FR
N
S
E
W
33
30
24
21
15
12
6
3
OBS
GS
N
A
V
ı

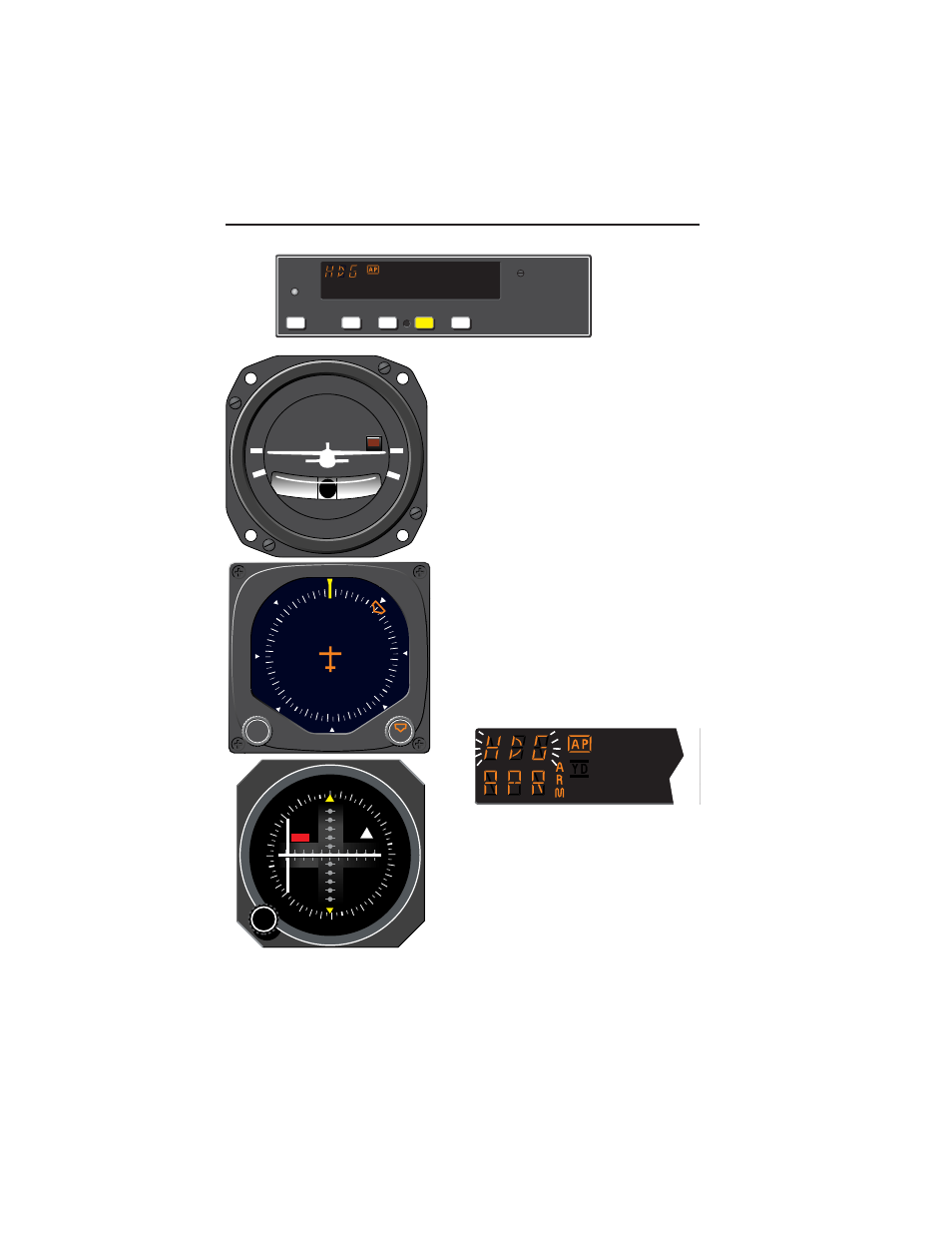

Approach (APR) Mode Using a
DG from HDG Mode
(45° Intercept)
The Approach (APR) mode
allows the autopilot to intercept and
track LOC, VOR/RNAV and GPS
courses.
To arm APR mode (with the
KAP 140 currently in the HDG
mode):
1. Select the desired frequency for
LOC, VOR or RNAV. For GPS,
verify the desired approach.
2. OBS Knob - SELECT desired
approach course. (For a localizer,
set it to serve as a memory aid.)
3. APR Mode Selector Button -
PRESS. Note APR ARM annun-
ciated.
NOTE: When APR is selected, the
autopilot will flash HDG for 5 sec-
onds to remind the pilot to reset the
HDG bug to the desired approach
course. Check the heading dis-
played on the DG against the mag-
netic compass and reset if neces-
sary.
