Introduction
6 KAP 140 AUTOPILOT SYSTEM
Rev. 1
Apr/02
L R
2 MIN.
TURN COORDINATOR
NO PITCH INFORMATION
D.C. ELEC.
N
33
30
W
24
21 S 15
12
E
6
3
PUSH P U S H
AIR
N
S
E W
TO
FR
33
30
24
21 15
12
6
3
OBS
GS
N A V
ı
AP
G KAP 140
HDG NAV APR REV ALT UP
DN
N
GS GS 33
30
W
24
21 S
15
12
E
6
3
ı
NAV HDG
ı
KCS 305
MAN
CW
AUTO
CCW
- +
Turn Coordinator
Directional Gyro KI 204 or other Course
Deviation Indicator
(not included)
KC 140 Two Axis
Computer/
Controller/
Annunciator
contains computer
functions, mode
control buttons,
and annunciations
in a single unit.
Also contains
static pressure
sensor and
accelerometer.
KS 271C Roll Servo
KS 270C Pitch Servo
KS 272C Pitch Trim Servo
KI 525A Pictorial
Navigation Indicator
KCS 55A Slaved
Compass System
(Optional)
KG102A
Slaved DG
KMT 112
Flux Detector
OR
KA 51B
Slaving Accessory
Manual
Electrical Trim
Autopilot
Disconnect/
Trim Interrupt
Control
WheelSteering
(optional)
TRIM
FAIL
Glideslope
Deviation
VOR/LOC/RNAV/
GPS Deviation
Middle
Marker
Static
Pressure

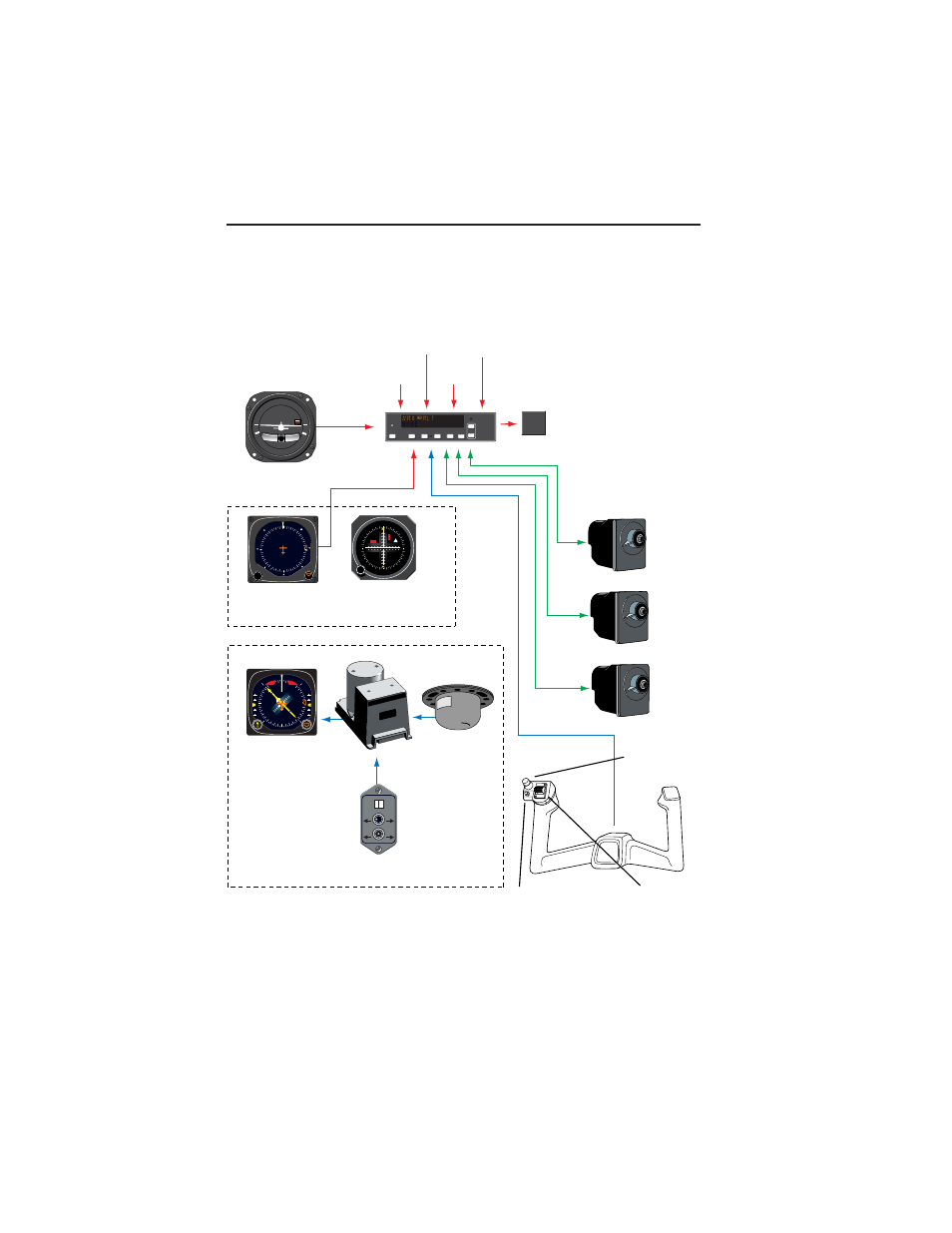

KAP 140 Two Axis System Diagram
