Abbreviated Operations
SW 06/07/08/11 Issued 4/95 3.3
Figure 3.3

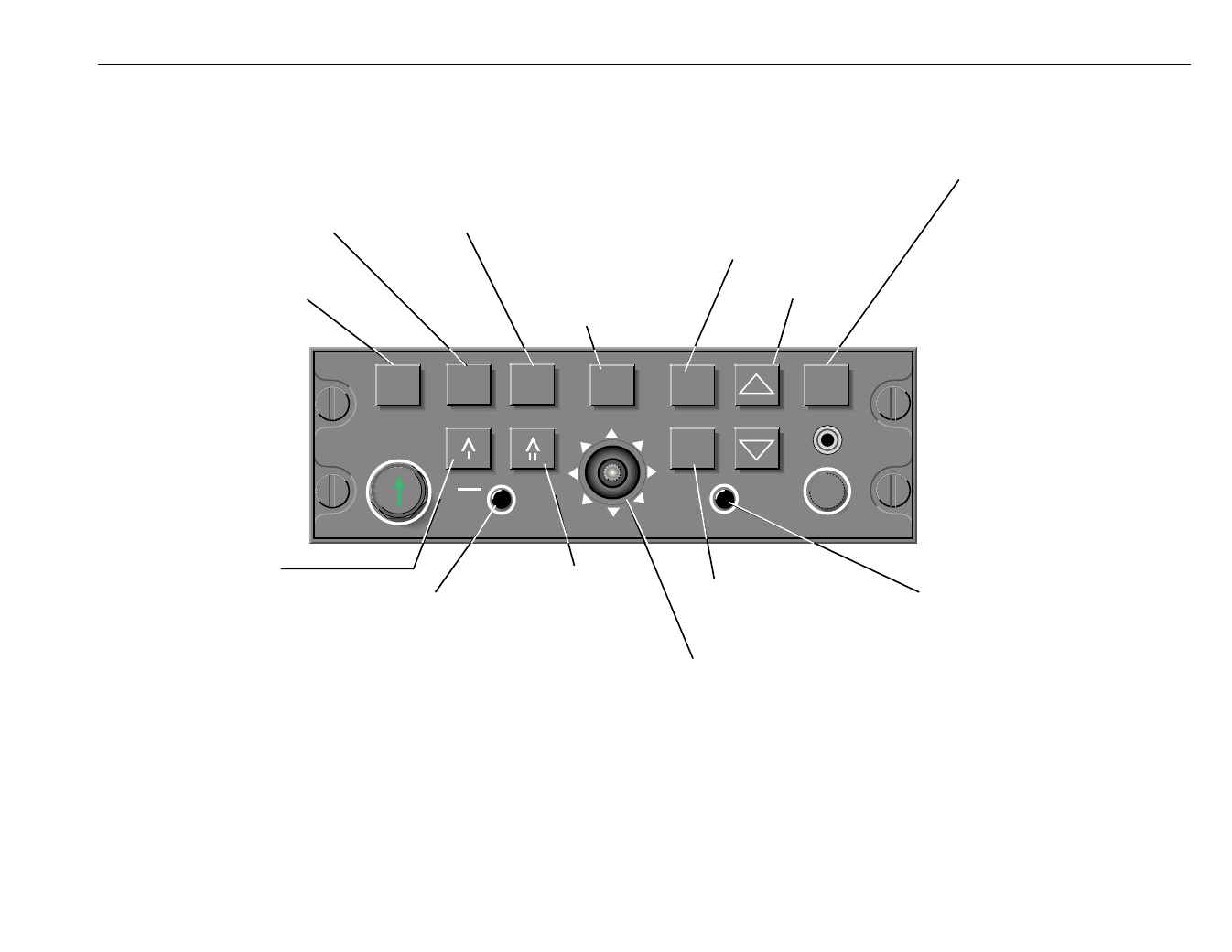

CP 469A MFD CONTROL PANEL OPERATION
TST REF CRS SEL
ENT ARC HSI
1-2
NAV
CRS
BRT
TCAS
ONLY CHK
LIST
TEST/REF
TEST
NAV MAP FORMAT
CHECKLIST HELP
360 MODE SELECT
HSI COMPASS ROSE
NAV MAP
NAV MAP WITH WX
DG ONLY (OPTIONAL)
PLAN VIEW (OPTIONAL) NAV SOURCE SELECT
VOR, LOC,TCN or RNV
TCN
FMS, LOR or GPS
NAV
MLS
ADF
HOM
SYSTEM 1-2 SELECT
CHECKLIST EMER DISCRETES
RANGE SELECT
CHECKLIST LEVEL
NAV MAP
WX
TCAS
#2 BEARING
POINTER SELECC
DECLUTTER
VOR, TCN OR RNV
TCN
FMS, LOR or GPS
NAV
MLS
ADF
DME DISTANCE ONLY
SECTORED MODE SELECT
ARC COMPASS ROSE
ARC NAV MAP
ARC NAV MAP WITH WX
ARC COMPASS ROSE WITH WX
WX ONLY (OPTIONAL)
#1 BEARING
POINTER SELECC
DECLUTTER
VOR, TCN OR RNV
TCN
FMS, LOR or GPS
NAV
MLS
ADF
DME DISTANCE ONLY
CHECKLIST SELECT
ACTIVATE
DEACTIVATE
JOYSTICK
MOVES WAYPOINT in LNAV MAP
MOVES MAP in PLAN VIEW
MOVES through CHECKLIST PAGES
TCAS ONLY SELECT
ACTIVATE
DEACTIVATE
COURSE SELECT
ACTIVATE
DEACTIVATE
CHECKLIST
ACTIVE EMER
ENTER
SENDS JOYSTICK
WAYPOINT TO LNAV
CHECKS OFF
CHECKLIST ITEMS
