MFD Operation
2.4.1 Issued 4/95 SW 06/07/08/11
The EFS 50 Multi Function Dis-
play Control Panel provides for
display of a more meaningful
variety of data than was previ-
ously accessible on EFIS MFD
displays. In fact, the EFS 50
MFD may be used as a second
EHSI by the pilot or copilot, pro-
viding them the ability to cross
check their primary EHSI, pre-
view or set up for a potential nav-
igation scenario, and still function
as a primary weather radar or
LRN map display. The CP 469 or CP 469A, MFD
control panel, provides control of
the selection of Nav source
selection, display format and
course selection. The CP 469A
provides the additional capability
of checklist and TCAS traffic dis-
plays when used with EFS sys-
tem software 08. Weather radar
control functions and mode
selection are performed by the
CP 466, an independent weather
radar control panel.
MFD OPERATION

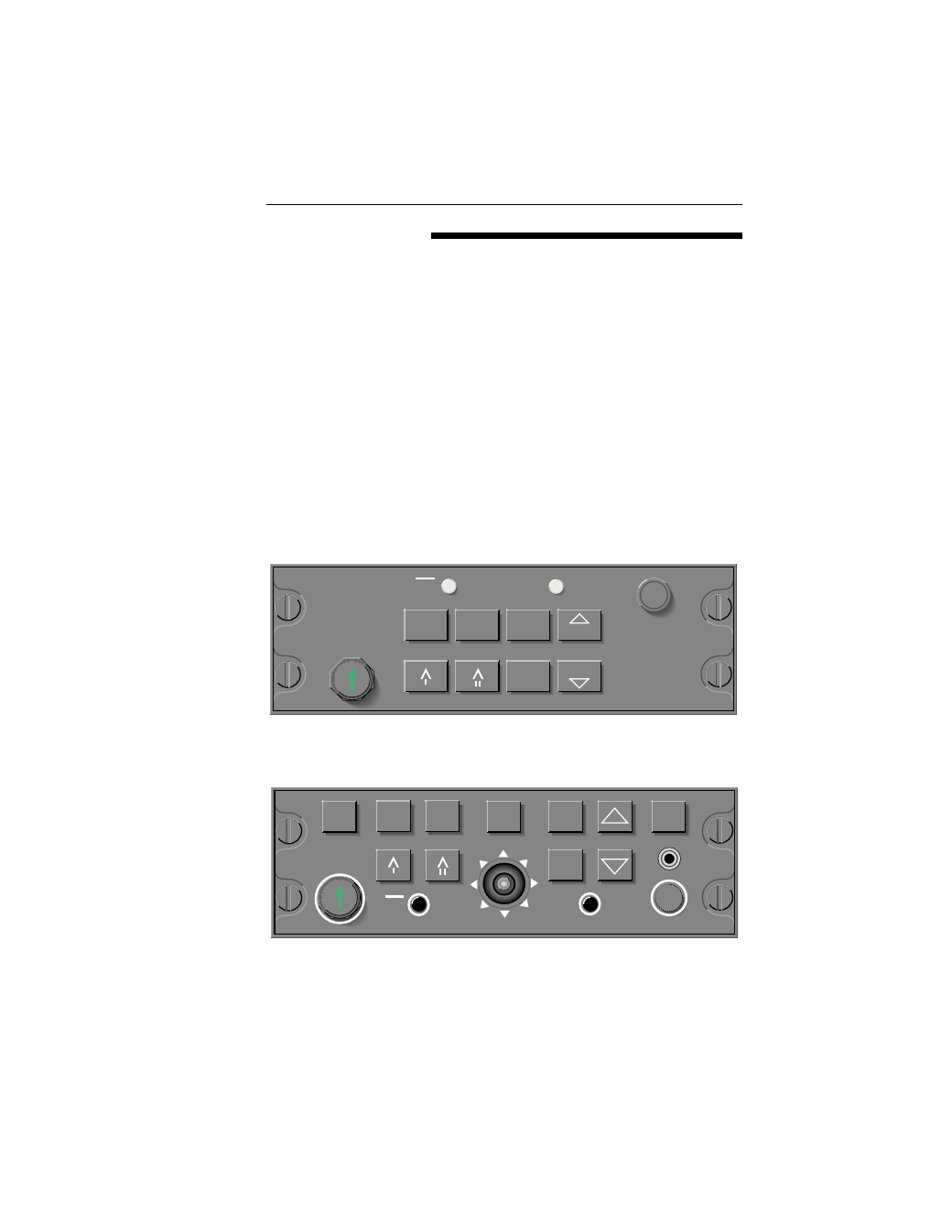

MULTI FUNCTION DISPLAY CONTROL PANEL
Figure 2.4.1
CP 469
Figure 2.4.2
CP 469A WITH CHECKLIST & JOYSTICK
HSI ARC NAV
RNG
1-2
CRS
RNG
CRS SEL TST
BRT
REF
TST REF CRS SEL
ENT ARC HSI
1-2
NAV
CRS
BRT
TCAS
ONLY CHK
LIST
