REVERSIONARY Modes
7.3 Issued 4/95 SW 06/07/08/11
DISPLAY (EADI) DOWN
Refer to Figure 7.2,
EADI DOWN MODE
SELECTION.
DISPLAY (ADI) DOWN mode
selection is generally used to
compensate for a failure of the
EADI display unit or section of
the symbol generator. Available
for use in two, three, four and
five-tube installations. The DIS-
PLAY DOWN mode will allow the
pilot or copilot to transfer the nor-
mal EADI display to the EHSI
below the failed EADI and trans-
fer the EHSI display to the MFD if
one is installed. A single
momentary switch input removes
power from the failed EADI,
transfers the EFIS control panel
control to the MFD symbol gener-
ator, instructs the EHSI symbol
section to calculate EADI func-
tion and the MFD symbol genera-
tor to calculate matching EHSI
functions.

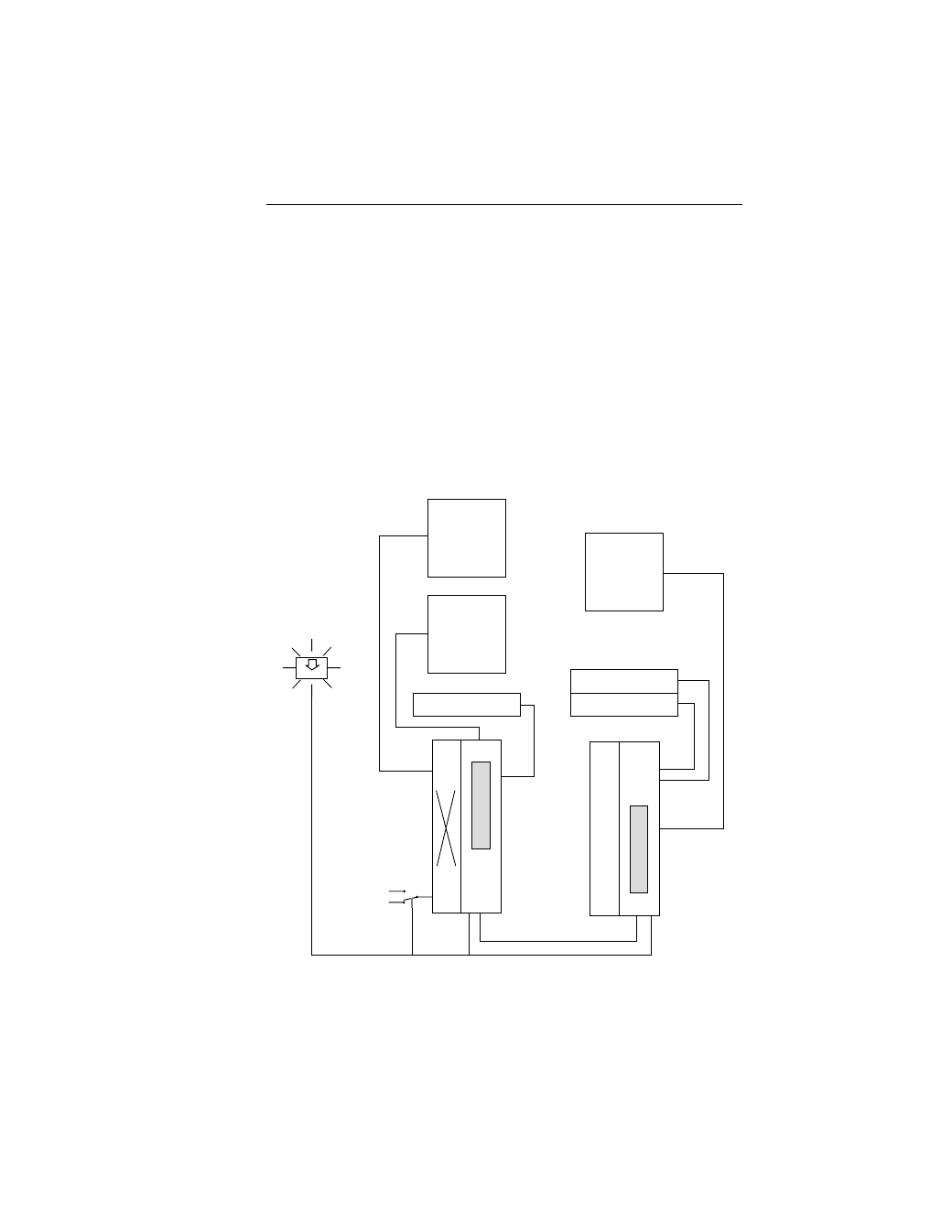

Figure 7.2
DISPLAY (EADI) DOWN MODE SELECTION
EHSI
EFS CONTROL PANEL
RDR CONTROL PANEL
28 VDC
AIRCRAFT
POWER
OPEN
EFS CONTROL PANEL
EADI
BLANK
E
A
D
I
E
H
S
I
/
M
F
D
/
E
A
D
I
E
A
D
I
E
H
S
I
/
M
F
D
/
E
A
D
I
EADI
SYMBOL
GENERATOR
#1
SYMBOL
GENERATOR
#2 (3)
