REVERSIONARY Modes
7.2 Issued 4/95 SW 06/07/08/11
CMPST - COMPOSITE
Refer to Figure 7.1 ,
COMPOSITE MODE
SELECTION.
CMPST (composite) is generally
used to compensate for a failure
of a display unit or the EADI sec-
tion of the symbol generator. A
single switch input to the SG 465
instructs the symbol generator to
output the CMPST display on the
EADI and EHSI. See section 4.3
for details on the composite dis-
play.

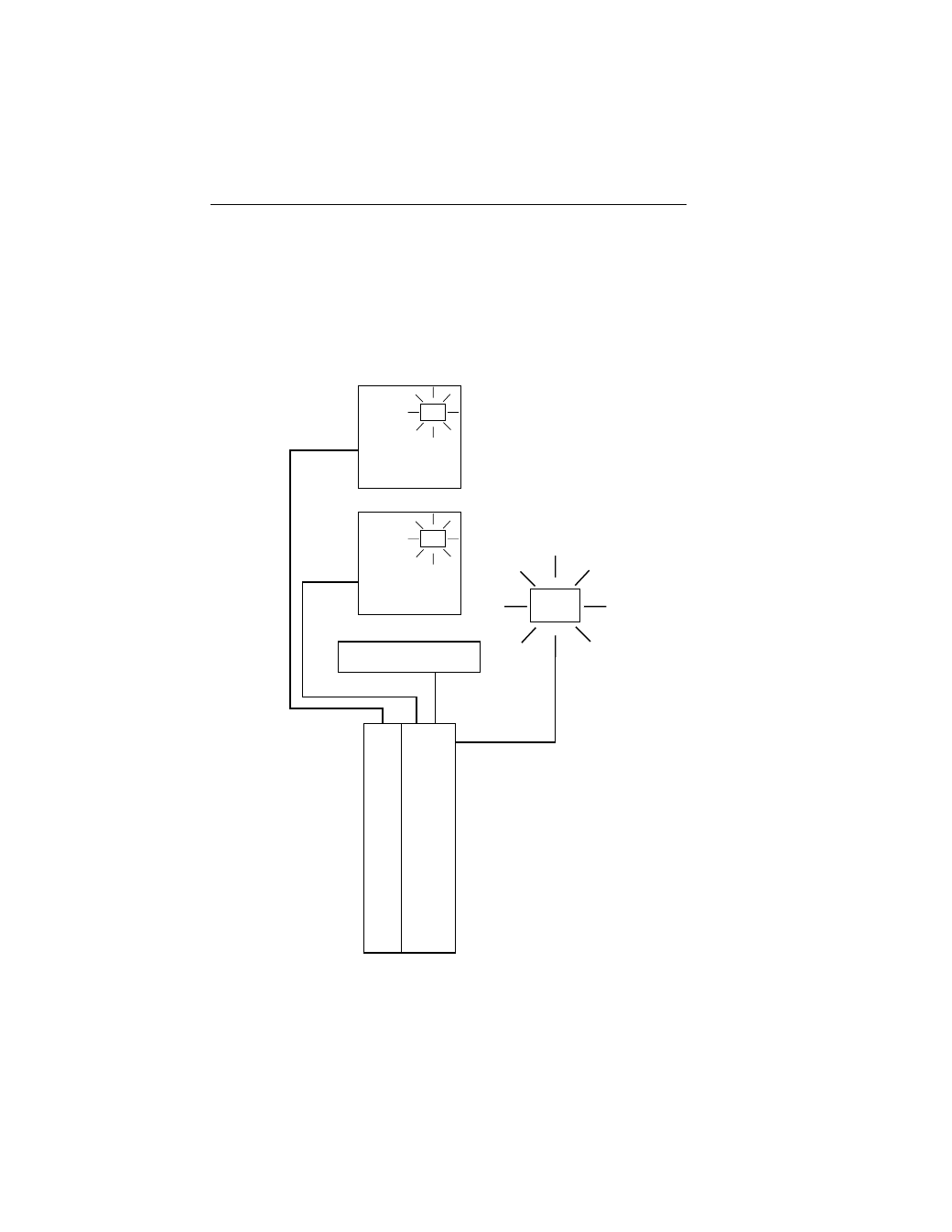

Figure 7.1
COMPOSITE MODE SELECTION
E
A
D
I
E
H
S
I
/
M
F
D
/
E
A
D
I
EADI
EHSI
EFS CONTROL PANEL
CMPST
DISP
CMPST
DISP
CMPST
DISP
SYMBOL
GENERATOR
