EHSI Operation
2.1.2 Issued 4/95 SW 06/07/08/11

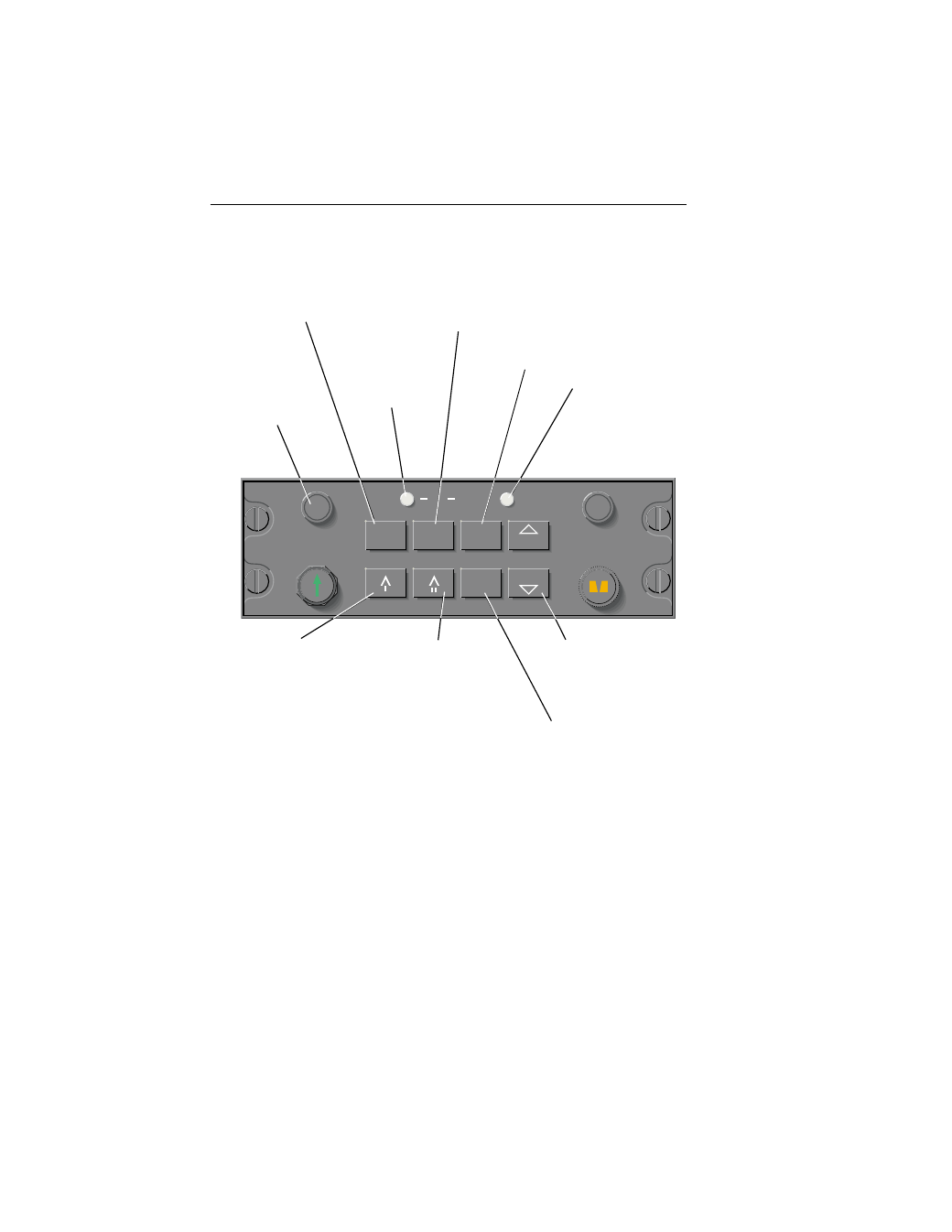

Figure 2.2
CP 467 Control Panel
alone EHSI/EADI Mode Con-
troller & companion ED 551/A
Display unit and figure 2.2 shows
the CP 467 Mode Controller
Operation. For clarification on a particular
display or operational feature,
refer to section IV. EHSI DIS-
PLAYS or section V. OPERAT-
ING INSTRUCTIONS. Figure
2.1 shows the CP467 stand-
HSI ARC NAV
RNG
1-2
HDG CRS
RNG
RALT TST SYS
BRT
REF
DH
TEST/REF
TEST
*GROUND SPEED
*TIME-TO-STATION
NAV MAP FORMAT
360 MODE SELECT
HSI COMPASS ROSE
NAV MAP
NAV MAP WITH WX
DG NAV SOURCE SELECT
VOR, LOC,TCN or RNV
TCN
FMS, LOR, OMG or GPS
NAV
MLS
ADF
HOM
SYSTEM 1-2 SELECT
RANGE SELECT
NAV MAP
WX #2 BEARING
POINTER SELECT
DECLUTTER
VOR, TCN OR RNV
TCN
FMS, LOR, OMG, or GPS
NAV
MLS
ADF
DME DISTANCE ONLY
SECTORED MODE SELECT
ARC COMPASS ROSE
ARC NAV MAP
ARC NAV MAP WITH WX
ARC COMPASS ROSE WITH WX
#1 BEARING
POINTER SELECT
DECLUTTER
VOR, TCN OR RNV
TCN
FMS, LOR, OMG, or GPS
NAV
MLS
ADF
DME DISTANCE ONLY
*NO SELECTION
AFTER SW 08
PULL SET
RADIO ALTIMETER
PUSH TEST
RADIO ALTIMETER
