A Resolution Advisory (red square) will appear at 3 o’clock, range of
2 miles, 200 feet above and flying level.
A Traffic Advisory (yellow circle) will appear at 9 o’clock, range of 2
miles, 200 feet below and climbing.
Proximity traffic (solid white diamond) will appear at 1 o’clock, range
3.6 miles, 1000 feet below descending.
Non-Threat traffic (open white diamond) will appear at 11 o’clock,
range of 3.6 miles, flying level 1000 feet above.
006-08499-0000 Rev 7 Effective Date 2/04 74
RA/VSI FLAGS AND TEST INDICATIONS
During the first few seconds of the TEST, the RA/VSI red and green
circumference lights (the climb/descend indicators) illuminate
sequentially. The TCAS flag is in view throughout the test period.
Note: KAV 485T TCAS test
indications are the same as the
IVA 81B.
Sequential Lamp Test
Appendix

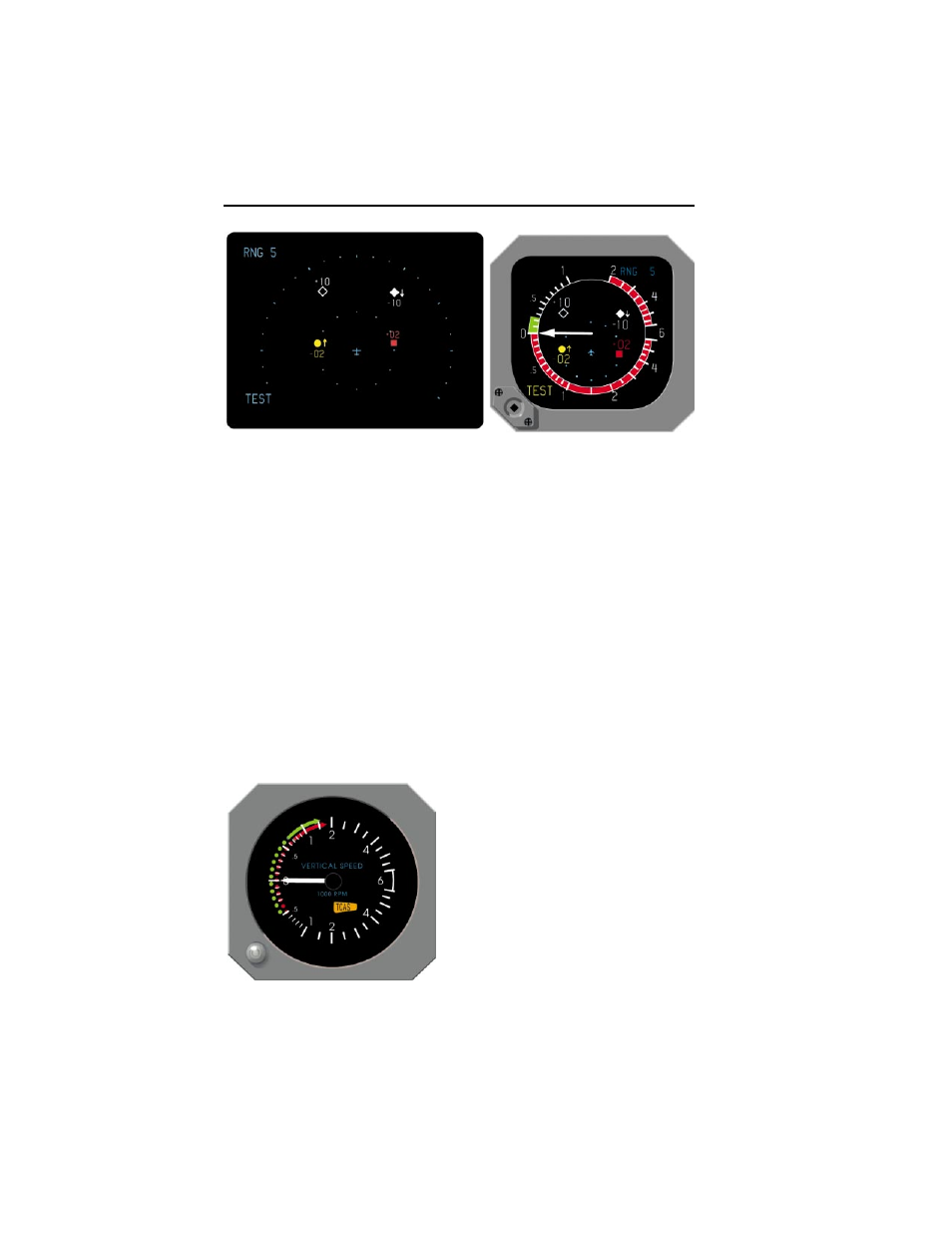

CAS 67A TA/VSI Test
Pattern; 5NM range
CAS 67A Radar Test Pattern;
5NM range
