006-08499-0000 Rev 7 Effective Date 2/04 36
KFS 578A TRANSPONDER/ TCAS CONTROL UNIT

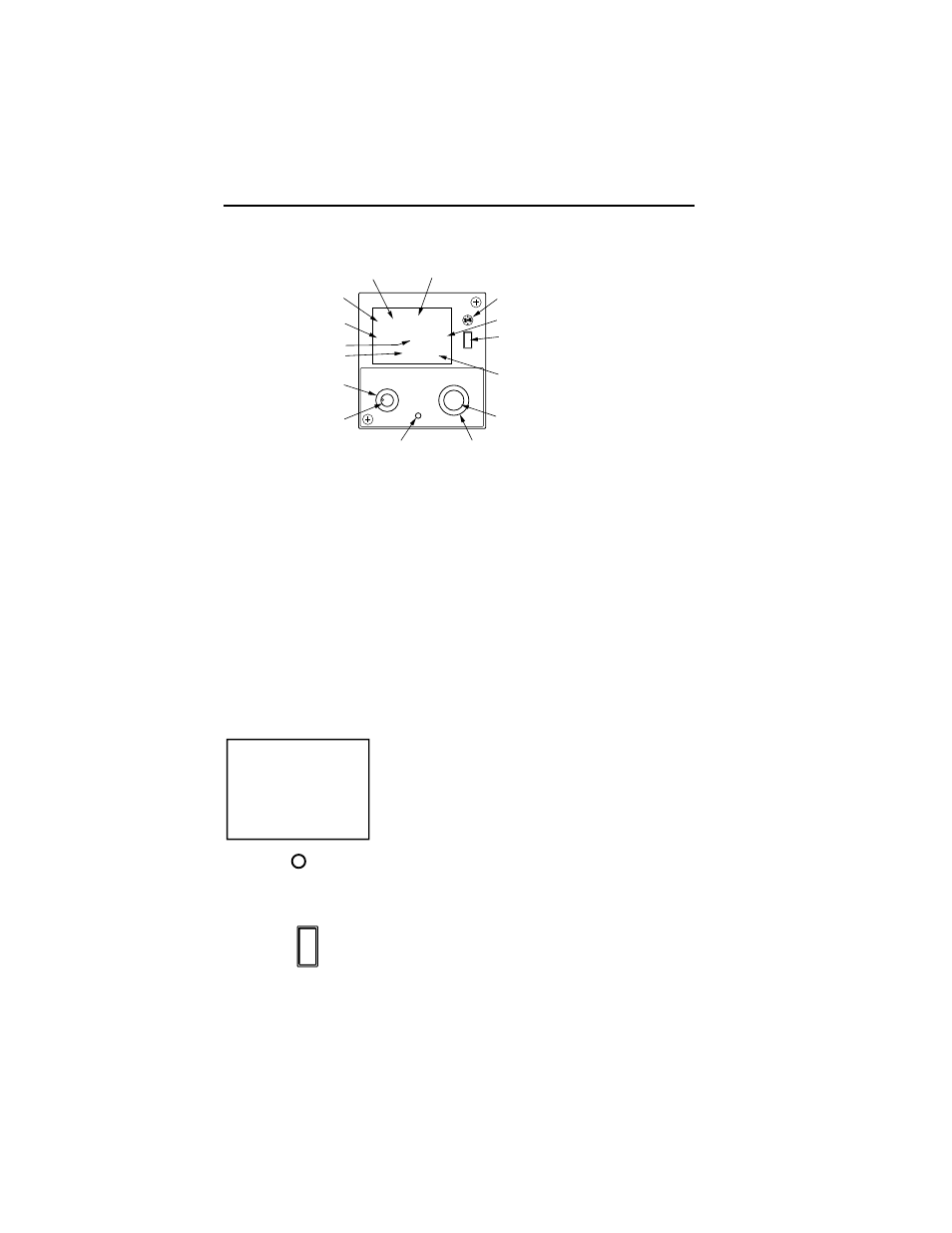

KFS 578A Single or Dual Mode S/TCAS Control Unit (Dual Unit shown).
KFS 578A CONTROLS AND DISPLAYS
The KFS 578A Control Unit is the master control for both the TCAS
system and transponder. The KFS 578A will also display the selected
4096 ATC code and current mode of operation in the display window.
Versions are available to control one or two transponders. A “Fail”
annunciation indicates failure of the selected transponder, antenna or
control data.
Note: If the KFS 578A is interfaced to a MST 67A Mode S transponder
and the MST 67A senses a failure, a failure annunciation will be shown.
A maintenance check should be performed.
Controls and Displays
PUSH
OFF
TST
SBY
ON
ALT VFR
TA
TA/
RA
XPDR/TCAS
^
^
1/2
I
D
T
ı
2200 2 FL
TA/RA 5 < >
IDT
PUSH
FL
ALT
TRANSPONDER 1-2 4096 CODE AND FLIGHT LEVEL TEST INDICATOR
PHOTOCELL
TCAS
ABOVE/NORM/BELOW
IDENT BUTTON
4096 SQUAWK CODE SELECT
PUSH-ADVANCE CURSOR
FL-PUSH AND HOLD-MOMENTARY
CHANGE TCAS RELATIVE ALTITUDE
IDENT
FUNCTION
SELECT
TRANSPONDER 1-2
SELECT
ON/OFF SWITCH
PUSH-TCAS
ABOVE/NORM/BELOW
TCAS RANGE
TRANSPONDER MODE
TCAS RANGE
TCAS MODE
MODE S
FLIGHT LEVEL
RANGE
The Display Window Displays ATC code
selection, whether transponder #1 or #2 is
active, transponder mode, transponder ident,
own aircraft flight level (in TEST), TCAS mode,
TCAS range and TCAS above, below or nor-
mal vertical display limit selected.
1/2 selects the active transponder. The other
unit is placed in standby.
IDT initiates IDENT feature for ATC.
2200
2 FL
TA/RA 5 < >
IDT ALT
I
D
T
1/2
(Pushbutton)
(Pushbutton)
