Controls and Displays
006-08499-0000 Rev 7 Effective Date 2/04 40

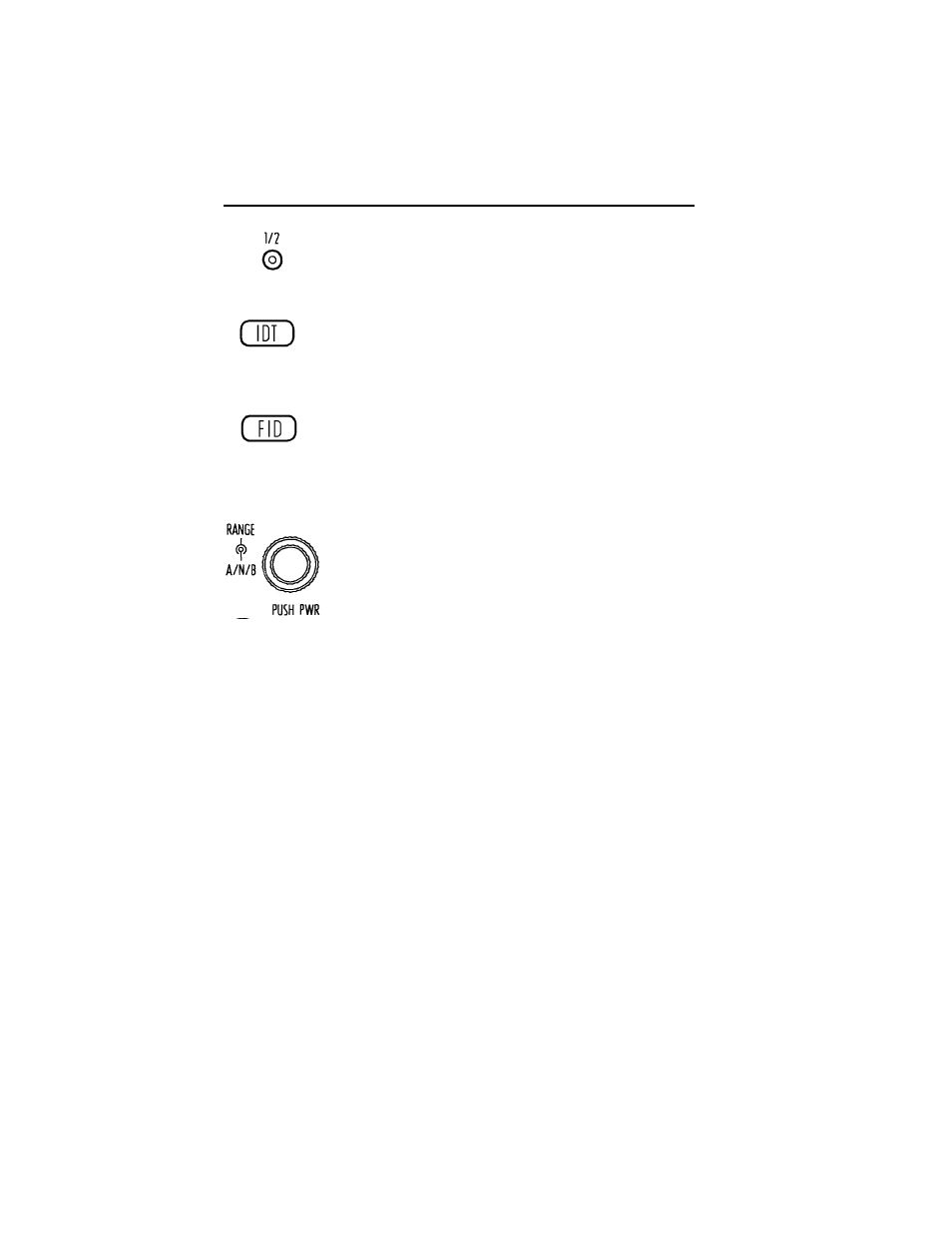

1/2 selects the active transponder. The other unit is
placed in standby.
IDT initiates IDENT feature for ATC.
FID allows entry of an alphanumeric flight identification.
Selecting the right inner pushbutton will cycle through
the eight characters to be changed. Rotating the right
inner knob will change the contents of the selected
(flashing) character.
The outer knob on the left hand dual concentric switch
selects the Traffic Advisory display range in nautical
miles. The selected range is annunciated on the traffic
display. The range annunciation is the maximum dis-
played range to the front of the aircraft. The selected
range has no effect on the TCAS II logic giving TAs and
RAs.
Note: Selected range is displayed in the upper right hand corner of a
TA/VSI.
The inner concentric knob on the left includes an on/off switch (push
on/off) and when rotated selects Traffic Advisory altitude display limits
(Above, Normal or Below). The Above/Normal/Below select knob has
no effect on the TCAS II logic giving TAs and RAs.
ABOVE 8700 feet above (9000 Change 7 or later); 2700 feet below.
Typically used during climb phase of flight.
NORMAL 2700 feet above; 2700 feet below. Typically used during en
route phase of flight.
BELOW 2700 feet above; 8700 feet below (9000 Change 7 or later).
Typically used during descent phase of flight.
Note: All knobs are continuous rotary and do not roll over or stop.
(Pushbutton)
(Pushbutton)
(Pushbutton)
