Plates and Approaches

Click Proc on the main display or Plates with an airport selected to display a list of plates for the airport.

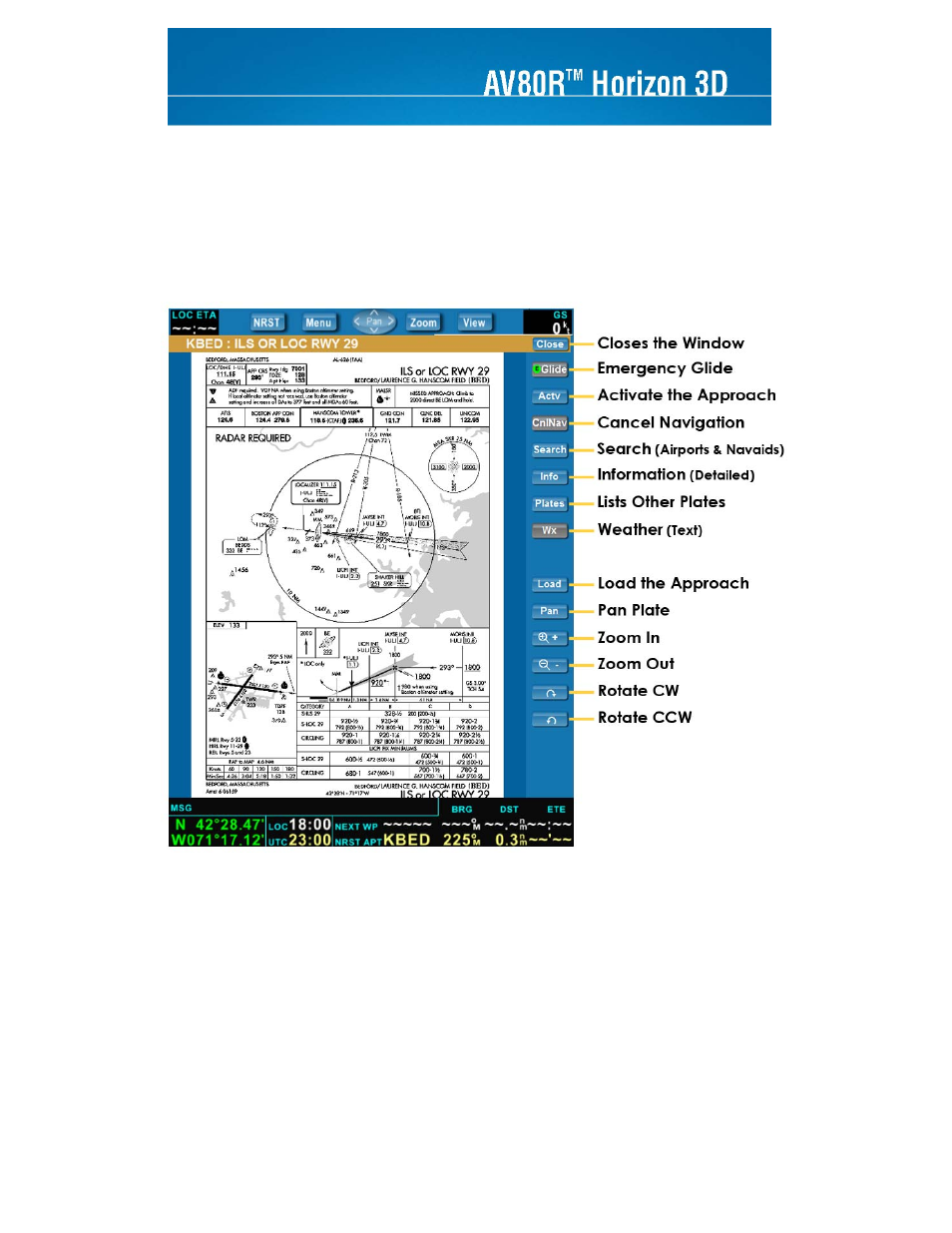

Select one of the plates and click View to see a copy of the FAA-NACO plate. The plates include
approaches, SIDS, STARS, and airport diagrams.

Note: You can also pan the plate by dragging the stylus.

Warning: AV8OR 3D is not to be used as a primary navigation reference. It is designed to be an aid to situational awareness and to
provide a backup reference in case of electrical or primary instrument failure.
