CG15, CG25, CG50 Burner Manual

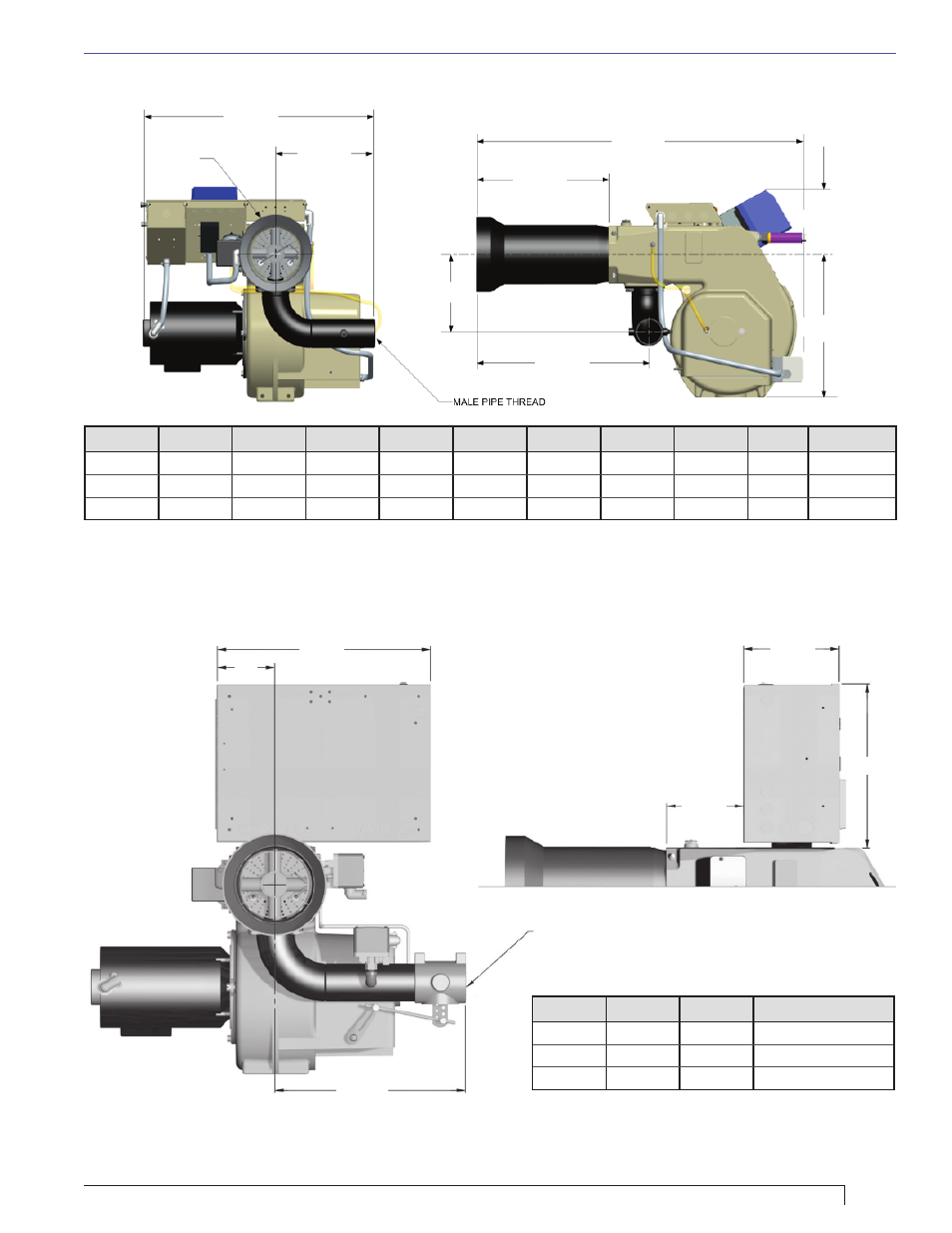

Figure 4 - Burner Dimensions
Model
Dim. A
Dim. B
Dim. C
Dim. D
Dim. E
Dim. F
Dim. G
Dim. H
O.D.
Pipe Thread
CG15
20.8
9.4
32.7
13.7
5.2
18.4
6.2
10.8
5.6
1-1/4 NPT
CG25
20.9
9.3
33.2
13.4
6.8
17.8
6.7
12.6
6.9
2 NPT
CG50
24.4
10.5
33.6
13.5
7.5
17.4
6.7
14.6
7.7
2-1/2 NPT
NOTE: All dimensions are in inches.
Section: Pre-installation Checklist
Figure 5 - Panel and Modulating Valve Dimensions
Model
Dim. A
Dim. B
Pipe Thread
CG15
5.12
11.75
1-1/4 NPT
CG25
5.12
11.75
2 NPT
CG50
5.81
13.25
2-1/2 NPT
*Dimensions are in inches
16.00
DIM. A
6.00
12.4
DIM. B
FEMALE PIPE THREAD
DIM. C
DIM. D
DIM. G
DIM. H
DIM. F
DIM. E
DIM. A
DIM. B
O.D.
2.9
