CG15, CG25, CG50 Burner Manual

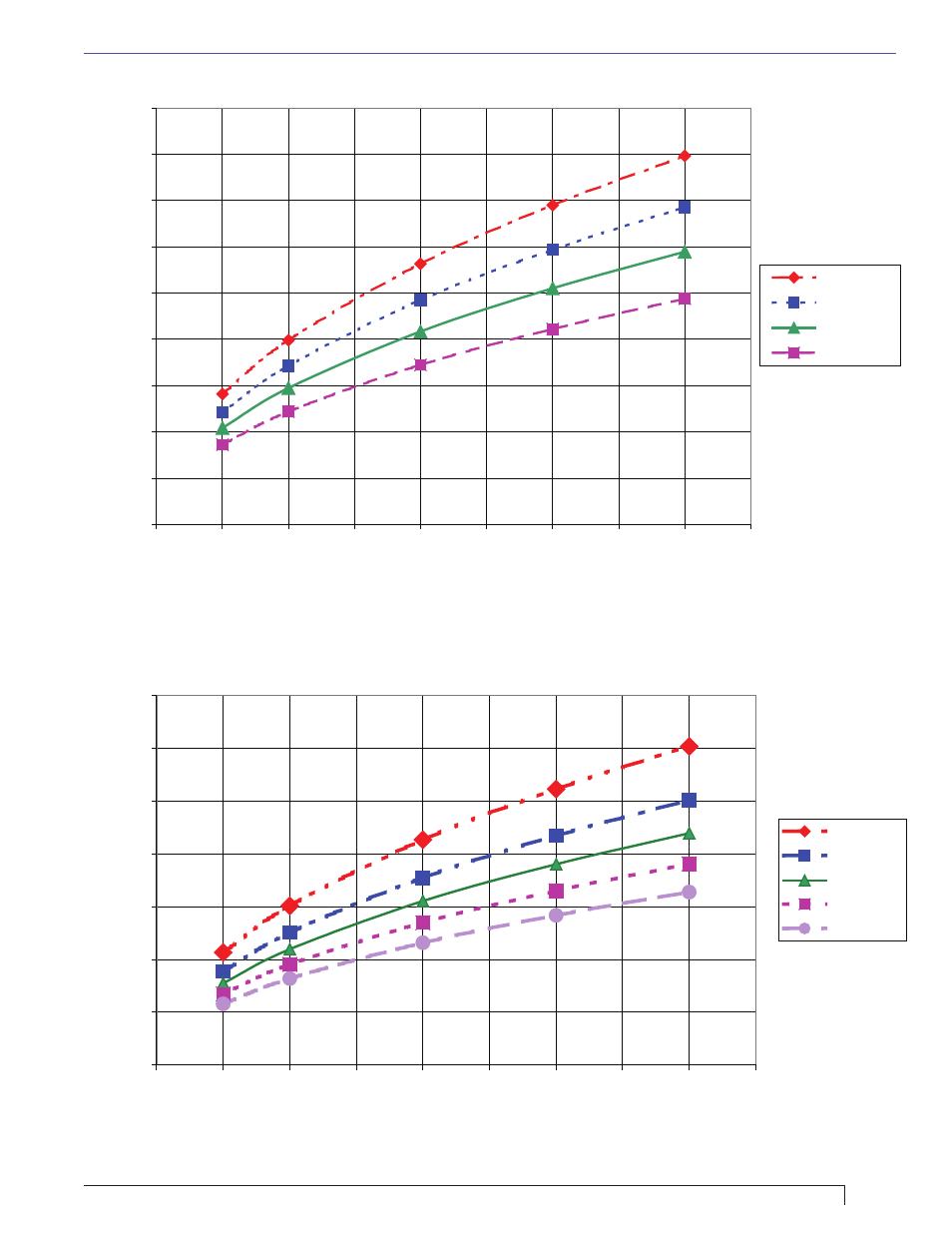

Figure 14A - Manifold to Furnace Pressure Drop vs Rate CG15 *
Figure 14B - Manifold to Furnace Pressure Drop vs Rate CG25*
0
200
400
600
800
1000
1200
1400
1600
1800
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
P ressure D rop, In. W C
Rate, MBH
C G 15.4S
C G 15.3S
C G 15.2S
C G 15.1S
0
500
1000
1500
2000
2500
3000
3500
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
P ressure D rop, In. W C
Rate, MBH
C G 25.5S
C G 25.4S
C G 25.3S
C G 25.2S
C G 25.1S
Section: Start the Burner
* Charts represent both natural and propane gas.
