13 CG15, CG25, CG50 Burner Manual

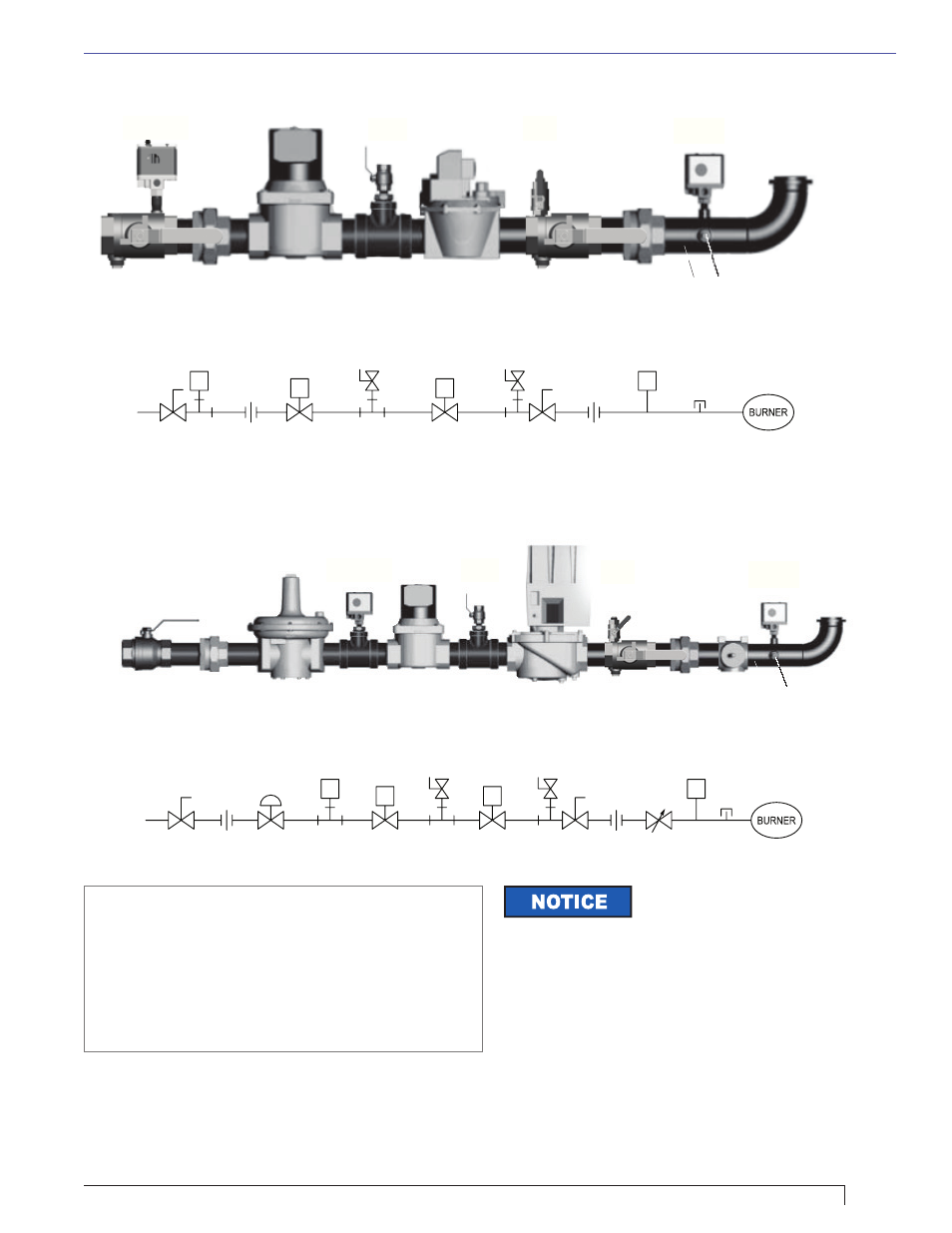

Figure 8A - UL Gas Train - High/Low and Low Fire Start
Figure 8B - UL Gas Train - Modulating
ABBREV.
HGPS
LGPS
MSC
MLTC
MV
SSOV1
SSOV2
TC
TP
U
2PRSSOV
ITEM DESCRIPTION
HIGH GAS PRESSURE SWITCH
LOW GAS PRESSURE SWITCH
MAIN SHUTOFF COCK
MAIN LEAK TEST COCK
MODULATION VALVE
SAFETY SHUTOFF VALVE #1
SAFETY SHUTOFF VALVE #2
TEST COCK
TEST PORT
UNION
HIGH/LOW PRESSURE REGULATING SAFETY SHUTOFF VALVE
When pressure reducing safety
shutoff valves are used, the distance
from the fi nal shutoff valve (2PRSSOV in Figure 8A)
to the burner manifold must be kept to a minimum for
good light-off reliability. R. W. Beckett recommends the
following maximum lengths:
Pipe Size
1”
1-1/4”
1-1/2”
2”
Maximum Length
12”
15”
18”
24”
If Normally Open Vent Valve (not shown) is used, the
distance between the SSOVs must be kept to a minimum
using the shortest practical nipples.
Section: Connect Gas Piping
LGPS TC TC HGPS
MSC
SSOV1 2PRSSOV MLTC U
TP
U
SK9982
SK9983
LGPS TC TC HGPS
MSC PRV
SSOV1 SSOV2 MLTC U
TP
U MV
SK9984
SK9985
MSC U SSOV1 2PRSSOV MLTC U
LGPS TC TC HGPS
TP
MSC U SSOV1 SSOV2 MLTC U
LGPS TC TC HGPS
TP
PRV MV
